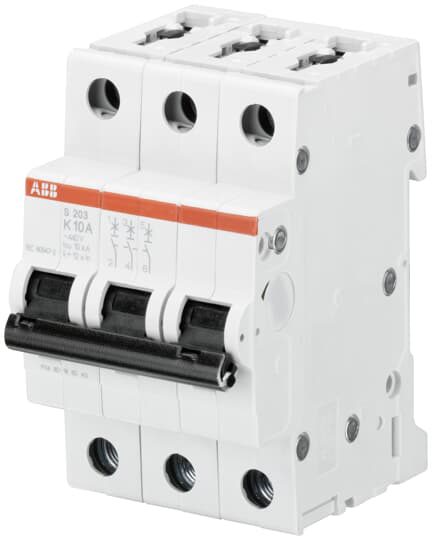

ABB S203-K60 LEGACY SEE REPLACEMENT
Product image thumbnail 0
Product image thumbnail 1
$522.78/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer ABBEMPLV
Mfg Catalog # S203-K60
North Coast Part # 1685826

Specifications

Technical

  • Standards: IEC/EN 60947-2UL 1077
  • Number of Poles: 3
  • Number of Protected Poles: 3
  • Tripping Characteristic: K
  • Rated Current (In): 60 A
  • Rated Operational Voltage: acc. to IEC 60947-2 440 V AC
  • Power Loss: 10.8 Wat Rated Operating Conditions per Pole 3.6 W
  • Rated Insulation Voltage (Ui): acc. to IEC/EN 60664-1 440 V
  • Rated Frequency (f): 50 Hz60 Hz
  • Rated Ultimate Short-Circuit Breaking Capacity (Icu): (230 V AC) 20 kA(440 V AC) 10 kA
  • Rated Service Short-Circuit Breaking Capacity (Ics): (230 V AC) 15 kA
  • Energy Limiting Class: 3
  • Overvoltage Category: III
  • Pollution Degree: 3
  • Rated Impulse Withstand Voltage (Uimp): (5.0 kV @ 2000 m)(6.2 kV @ sea level)4 kV
  • Dielectric Test Voltage: 50 / 60 Hz, 1 min: 2 kV
  • Housing Material: Insulation Group II, RAL 7035
  • Actuator Material: Insulation Group II, Black, Sealable
  • Actuator Marking: I / O
  • Contact Position Indication: Red ON / Green OFF
  • Degree of Protection: IP20
  • Remarks: IP40 in enclosure with cover
  • Electrical Endurance: 10000 AC cycle
  • Mechanical Endurance (Nendu): 20000 cycle
  • Terminal Type: Screw Terminals
  • Screw Terminal Type: Failsafe Bi-directional Cylinder-lift Terminal
  • Connecting Capacity: Busbar 10 / 10 mm²Flexible with Ferrule 0.75 ... 25 mm²Flexible 0.75 ... 25 mm²Rigid 0.75 ... 35 mm²Stranded 0.75 ... 35 mm²
  • Tightening Torque: 2.8 N·m
  • Recommended Screw Driver: Pozidriv 2
  • Mounting on DIN Rail: TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
  • Mounting Position: Any
  • Built-In Depth (t2): 69 mm
  • Installation Size: acc. to DIN 43880 1
  • Power Supply Connection: Arbitrary

Environmental

  • Ambient Air Temperature: Operation -25 ... +55 °CStorage -40 ... +70 °C
  • Resistance to Shock acc. to IEC 60068-2-27: 25g / 2 shocks / 13 ms
  • Resistance to Vibrations acc. to IEC 60068-2-6: 5g, 20 cycles at 5 ... 150 ... 5 Hz with load 0.8 In
  • Environmental Conditions: 28 cycleswith 55 °C / 90-96 %and 25 °C / 95-100 %
  • RoHS Status: Following EU Directive 2011/65/EU

Technical UL/CSA

  • Maximum Operating Voltage UL/CSA: 110 V DC480Y / 277 V AC
  • Connecting Capacity UL/CSA: Busbar 18-8 AWGConductor 18-4 AWG
  • Tightening Torque UL/CSA: 25 in·lb
  • Interrupting Rating acc. to UL1077: (110 V DC) 10 kA(277 V AC) 6 kA(480Y / 277 V AC) 6 kA

Dimensions

  • Product Net Width: 52.5 mm
  • Product Net Depth / Length: 69 mm
  • Product Net Height: 88 mm
  • Product Net Weight: 0.375 kg

Container Information

  • Package Level 1 Units: carton 1 piece
  • Package Level 1 Width: 58 mm
  • Package Level 1 Depth / Length: 92 mm
  • Package Level 1 Height: 80 mm
  • Package Level 1 Gross Weight: 0.4 kg
  • Package Level 1 EAN: 4016779645348
  • Package Level 2 Units: 36 piece
  • Package Level 2 Width: 275 mm
  • Package Level 2 Depth / Length: 395 mm
  • Package Level 2 Height: 210 mm
  • Package Level 2 Gross Weight: 13.36 kg
  • Package Level 2 EAN: 4016779973670

Ordering

  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85362010

Classifications

  • Object Classification Code: F
  • ETIM 6: EC000042 - Miniature circuit breaker (MCB)
  • ETIM 7: EC000042 - Miniature circuit breaker (MCB)
  • eClass: 7.0 27141901
  • UNSPSC: 39121614

Overview

GTiN 00662019171760
Length 69 mm
Width 52.5 mm
Operating Temperature 55 C
Type High Performance MCB Provides Compact Supplementary, Energy Limiting, Circuit Protection
Terminal Type Screw Terminals
Applications Designed for Allowing Higher In-Rush Current During System Start Up; Example: Motors, Transformers
Height 88 mm
Standard EN 60947-2UL 1077,IEC
Family Brand Name Thomas & Betts
Current 60 A
Trip Type K
Number of Poles 3 Pole
Interrupt Rating 6 kA
Voltage 277/480 Volt
Frequency 50/60 Hz
Amperage 60 Amp
