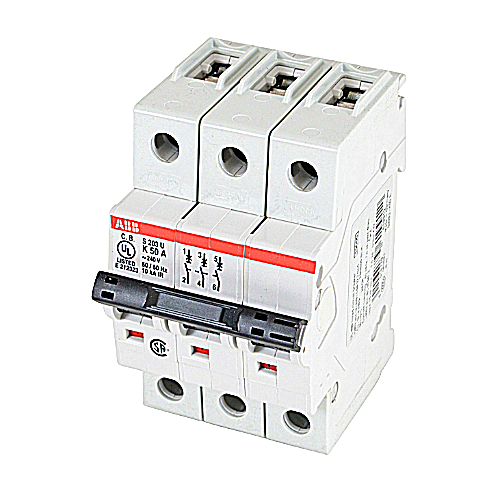

ABB S203U-K50 MCB 3P K 50A 240 BCPD

$216.17/ea

Usually ships within 11 to 17 Days

Adding...

Already a Customer? Log in to view your pricing

Specifications

UNSPSC: 39121603 Miniature circuit breakers
IGCC: 4897 Miniature circuit breakers
Brand Name: ABB
Type: High Performance MCB, Branch Circuit Protection
Special Features: DIN Rail Mounting, Finger Safe and Multi-Function Terminals
Application: Designed for Allowing Higher In-Rush Current During System Start Up; Example: Motors, Transformers
Standard: UL 489, CSA 22.2 No. 5, UL E212323
Voltage Rating: 240 VAC
Amperage Rating: 50 Amps
Frequency Rating: 50/60 Hertz
Trip Type: K
Interrupt Rating: 10 kA
Number Of Poles: 3
Auxiliary Contacts: Yes
Length: 71 mm
Width: 52.5 mm
Height: 92 mm
Operating Temperature: -25 to +55 Degrees Celcius

UPC	66201917054
GTiN	00662019170541
Length	71 mm
Width	52.5 mm
Operating Temperature	-25 to +55 C
Voltage	240 Volt
Type	High Performance MCB, Branch Circuit Protection
Applications	Designed for Allowing Higher In-Rush Current During System Start Up; Example: Motors, Transformers
Height	3.6221 in
Frequency	50/60 Hz
Family Brand Name	Thomas & Betts
Carton Qty	1
Box Quantity	3
Amperage	50 Amp
Trip Type	K
Number of Poles	3 Pole
Interrupt Rating	10 kA
