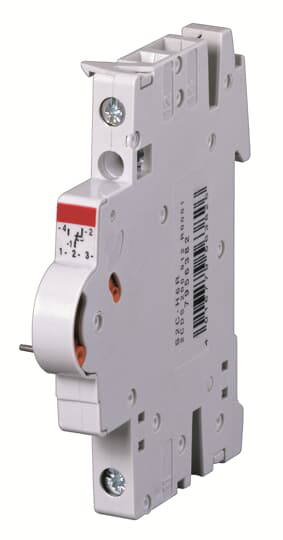

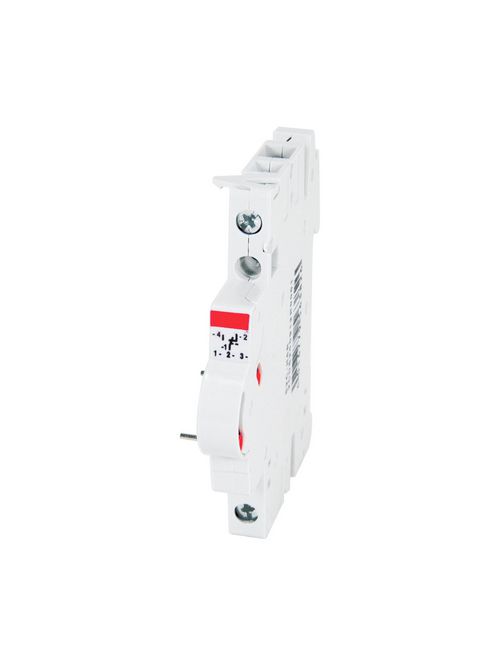

ABB S2C-H6R MCB S200/S200P AUX 1NO/
$15.70/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer ABBEMPLV
Mfg Catalog # S2C-H6R
North Coast Part # 672010

Specifications

Ordering

  • E-Number (Sweden): 2102500
  • EAN: 4016779563826
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85365080

Dimensions

  • Product Net Width: 8.8 mm
  • Product Net Height: 85 mm
  • Product Net Depth / Length: 69 mm
  • Product Net Weight: 0.043 kg

Container Information

  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 20 mm
  • Package Level 1 Height: 115 mm
  • Package Level 1 Depth / Length: 104 mm
  • Package Level 1 Gross Weight: 0.045 kg
  • Package Level 1 EAN: 4016779563826
  • Package Level 2 Units: 60 piece
  • Package Level 2 Width: 275 mm
  • Package Level 2 Height: 210 mm
  • Package Level 2 Depth / Length: 395 mm
  • Package Level 2 Gross Weight: 3.4 kg
  • Package Level 2 EAN: 4016779946193

Environmental

  • RoHS Status: Following EU Directive 2011/65/EU

Additional Information

  • Accessory Type: Auxiliary Contact
  • Function: Auxiliary Contact
  • Power Loss: 0,5 W
  • Product Main Type: S2C
  • Product Name: Auxiliary Contact
  • RoHS Date: 0335
  • Standards: CSA Class 3215-30CSA Class 3215-90GB14048.5IEC/EN 60947-5-1UL 1077
  • Suitable For: S200S200MS200PS200SSN201LSN201SN201MF200DS201DS202CDS200S-ARC1DS-ARC1
  • Suitable for Product Class: Miniature Circuit BreakerResidual Current Device
  • Technical Information: AUXILIARYCONTACT

Classifications

  • ETIM 4: EC001286 - Auxiliary contact unit for distribution board
  • ETIM 5: EC001286 - Auxiliary contact unit for distribution board
  • ETIM 6: EC001286 - Auxiliary contact unit for distribution board
  • ETIM 7: EC001286 - Auxiliary device for distribution board devices
  • UNSPSC: 39121614
  • WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
  • eClass: 7.0 27143502

Overview

GTiN 00804325414739
Type Accessories
Applications The auxiliary contact will signal whether the breaker is in the on or off position
Family Brand Name Thomas & Betts
Sub Brand System pro M compact
Standard CSA Class 3215-30CSA Class 3215-90GB14048.5IEC,EN 60947-5-1UL 1077
