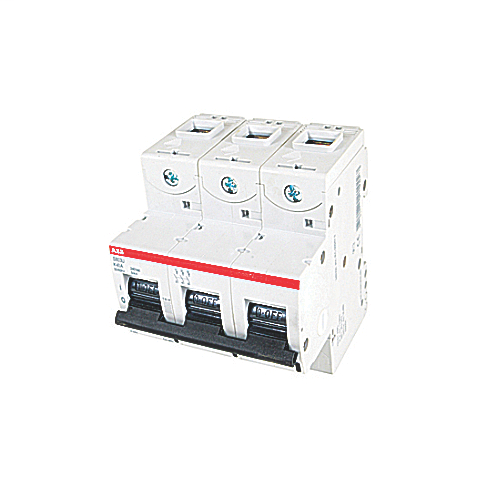

ABB S803U-K40 MCB S800 3P K 40A
$269.07/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer ABBEMPLV
Mfg Catalog # S803U-K40
North Coast Part # 1890040

Specifications

North American Specifications (UNSPSC)

  • UNSPSC: 39121603 Miniature circuit breakers
  • IGCC: 4897 Miniature circuit breakers
  • Brand Name: ABB
  • Type: High Performance MCB with Cage Terminal
  • Special Features: DIN Rail Mounting, Finger Safe and Multi-Function Terminals
  • Application: Branch Circuit Protection. Designed for Use in Cable Protection Applications. Example: Control Circuits, Lighting
  • Standard: UL 489, IEC 60947-2, CSA 22.2 No. 5-02, cULus, E312425
  • Voltage Rating: 240 VAC
  • Amperage Rating: 40 Amps
  • Frequency Rating: 50/60 Hertz
  • Trip Type: K
  • Interrupt Rating: 50 kA
  • Number Of Poles: 3
  • Auxiliary Contacts: Yes
  • Length: 88.5 mm
  • Width: 79.5 mm
  • Height: 95 mm
  • Operating Temperature: -25 to +60 Degrees Celcius

Packaging

  • Outer Quantity: 1
  • Outer Dimensions (inches): 4.02x3.23x3.62
  • Weight Uom: 1.67 lbs. Each

Overview

GTiN 00804325372305
Length 88.5 mm
Width 79.5 mm
Operating Temperature -25 to +60 C
Voltage 240 Volt
Type High Performance MCB with Cage Terminal
Applications Branch Circuit Protection. Designed for Use in Cable Protection Applications. Example: Control Circuits, Lighting
Height 3.7402 in
Frequency 50/60 Hz
Family Brand Name Thomas & Betts
Box Quantity 1
Amperage 40 Amp
Trip Type K
Number of Poles 3 Pole
Interrupt Rating 50 kA
