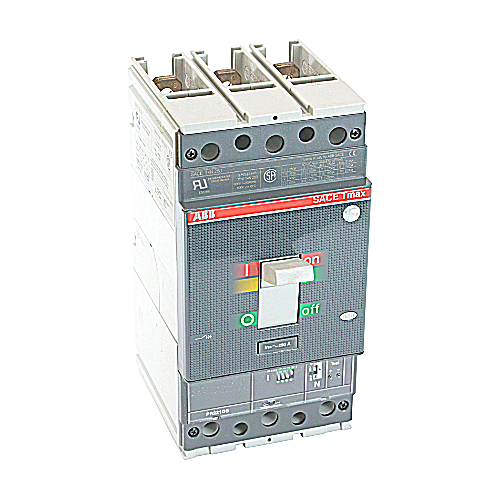

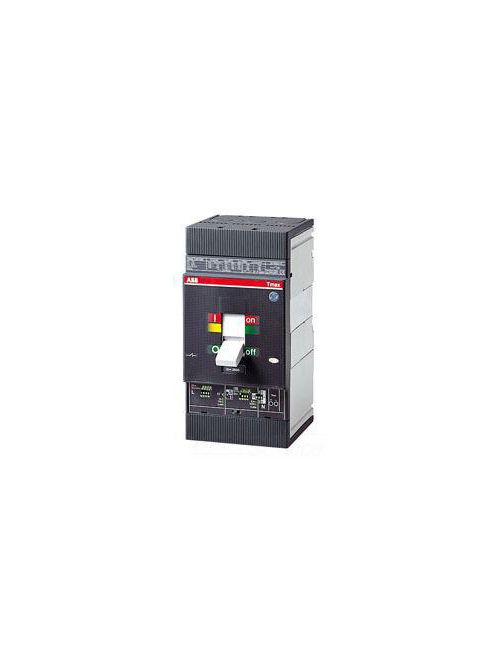

ABB T4N250E5W MCP T4N 250A 3P I UR
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$2,119.22/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer ABBEMPLV
Mfg Catalog # T4N250E5W
North Coast Part # 1610273

Specifications

North American Specifications (UNSPSC)

  • UNSPSC: 39121616 Molded case circuit breakers
  • IGCC: 4927 Molded case circuit breakers
  • Brand Name: ABB
  • Sub Brand: Tmax
  • Type: Molded case circuit breaker
  • Special Features: Short circuit protection is provided by an adjustable instantaneous only, magnetic trip unit (MCP)
  • Application: For motor control applications (MCP)
  • Standard: UL 489, CSA, IEC 60947-2
  • Current Rating: 250A
  • Frame: 250A
  • Trip Type: Electroic MCP (AC only)
  • Interrupt Rating: Normal
  • Number Of Poles: 3
  • Connection: None

Packaging

  • Outer Quantity: 1
  • Outer Dimensions (inches): 11.3x1x9.6
  • Weight Uom: 8.43 lbs. Each

Overview

Item Long Description 3 pole, 250 amps rated at 600V AC, Tmax molded case circuit breaker with an electronic trip device with a magnetic interrupt (MCP) trip device and 25kA at 480V AC interrupt current rating
GTiN 00662019318936
Type Molded case circuit breaker
Applications For motor control applications (MCP)
Connection Type None
Family Brand Name Thomas & Betts
Frame 250A
Box Quantity 1
TC Connection None
Current 250 A
Trip Type Electroic MCP (AC only)
Number of Poles 3 Pole
Interrupt Rating Normal
Sub Brand Tmax
