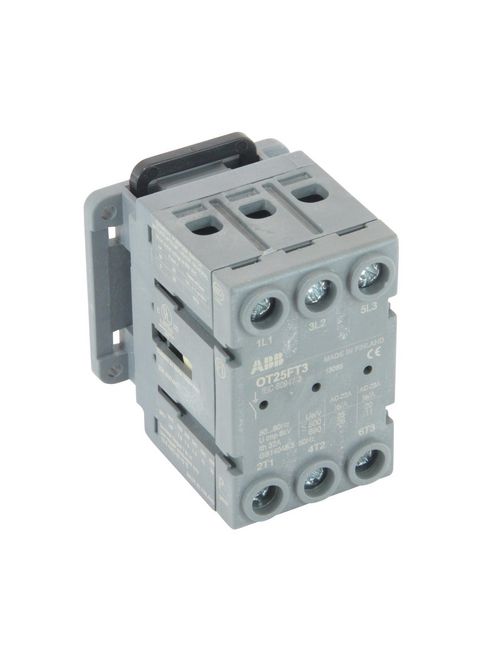

ABB OT25FT3 ROTARY DISCONNECT, 480V
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$113.37/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer ABBEMPLV
Mfg Catalog # OT25FT3
North Coast Part # 947694

Specifications

Dimensions

  • Product Net Width: 43 mm
  • Product Net Height: 54 mm
  • Product Net Depth / Length: 52 mm
  • Product Net Weight: 0.1 kg

Technical

  • Rated Operational Current AC-21A (Ie): (380 ... 415 V) 25 A(500 V) 25 A(690 V) 25 A
  • Rated Operational Current AC-22A (Ie): (380 ... 415 V) 25 A(500 V) 25 A(690 V) 25 A
  • Rated Operational Current AC-23A (Ie): (380 ... 415 V) 20 A(500 V) 20 A(690 V) 11 A
  • Rated Operational Power AC-23A (Pe): (220 ... 240 V) 4 kW(400 ... 415 V) 9 kW(500 V) 9 kW(690 V) 9 kW
  • Conventional Free-air Thermal Current (Ith): q = 40 °C 32 A
  • Conventional Thermal Current (Ithe): Fully Enclosed 32 A
  • Rated Impulse Withstand Voltage (Uimp): 8 kV
  • Rated Insulation Voltage (Ui): acc. to IEC/EN 60664-1 750 V
  • Rated Operational Voltage: Main Circuit 750 V
  • Rated Short-Circuit Making Capacity (Icm): (690 V) 0.71 kA
  • Rated Short-time Withstand Current (Icw): for 1 s 0.5 kA
  • Power Loss: at Rated Operating Conditions per Pole 0.6 W
  • Pollution Degree: 3
  • Handle Type: Handle and shaft not included
  • Switches Operating Mechanism: Mechanism on Top of the Switch
  • Distance Between Phases: Standard
  • Position of Line Terminals: Top In - Bottom OutBottom In - Top Out
  • Operating Mode: Front operated
  • Standards: IEC 60947-3 / UL 508 / CSA C22.2 No. 14
  • Special Functions: No
  • Mounting Type: Door mounting
  • Number of Poles: 3
  • Cable Cross-Section: Cu 0.75...10 mm²
  • Degree of Protection: Front IP20
  • Terminal Type: Screw Terminals
  • Tightening Torque: acc. IEC 60947-1 0.8 N·m
  • Mechanical Durability: 20000

Technical UL/CSA

  • Maximum Operating Voltage UL/CSA: 600 V
  • Horsepower Rating UL/CSA: (110 ... 120 V AC) Single Phase 1.5 Hp(240 V AC) Single Phase 3 Hp(440 ... 480 V AC) Single Phase 7.5 Hp(550 ... 600 V AC) Single Phase 10 Hp(220 ... 240 V AC) Three Phase 7,5 Hp(440 ... 480 V AC) Three Phase 15 Hp(550 ... 600 V AC) Three Phase 20 Hp
  • Ampere Rating UL/CSA: 30 A
  • Tightening Torque UL/CSA: 7 in·lb

Environmental

  • RoHS Status: Following EU Directive 2011/65/EU
  • Environmental Information: 1SCC301183D0201

Container Information

  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 63 mm
  • Package Level 1 Depth / Length: 65 mm
  • Package Level 1 Height: 54 mm
  • Package Level 1 Gross Weight: 0.11 kg
  • Package Level 1 EAN: 6417019390277

Classifications

  • Object Classification Code: Q
  • ETIM 5: EC000216 - Switch disconnector
  • ETIM 6: EC000216 - Switch disconnector
  • ETIM 7: EC000216 - Switch disconnector
  • UNSPSC: 39122233
  • WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
  • E-Number (Sweden): 3170945

Overview

Item Long Description 3 pole, 25 amps rated at 600 VAC, UL 508, door mounted open non-fusible disconnect switch
GTiN 00804325415460
Type Circuit breaker enclosure
Terminal Type Screw Terminals
Applications Industrial control panel disconnects
Mounting Type Door
Standard CSA C22.2 No. 14,IEC 60947-3,UL 508
Family Brand Name Thomas & Betts
Number of Poles 3 Pole
