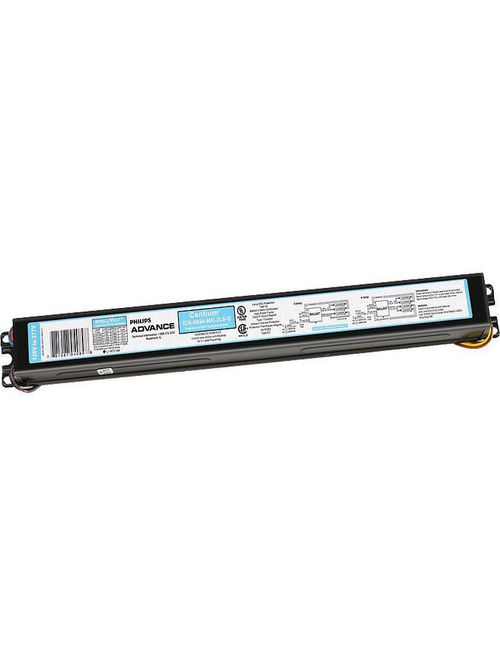

ADV HCN4S5490C2LSG35M ELE BLST (2)1

idw

Product Data

• Short product name: ELE BALLAST (4) F54T5/HO 347-480V
• eop_net_weight_pp: 1.348 kg
• Logistics code(s): 913710268702
• Skus/Case: 6
• Bar code on case: 50781087047878
• Bar code on pack: 781087047880
• eop_pck_cfg: 6
• Product number: HCN4S5490C2LSG35M
• Full product name: ELE BALLAST (4) F54T5/HO 347-480V
• Pieces per Sku: 1

General Characteristics

• Suitable for Outdoor use?: Yes
• Base Model: HCN4S5490C2LSG
• Lamp Type: F54T5/HO
• Housing Dimensions: 16.7" x 1.7" x 1.18"
• Starting Method: Programmed Start
• Housing Material: Metal
• Line Frequency: 50/60 Hz
• Family Name: Centium
• Housing: G
• Number of Lamps: 3/4 piece
• Ballast Type: Electronic Fluorescent
• Input Voltage: 347-480 V

Approval & Application Chars

• CEE Rated: No
• CEC Listing: Yes
• NEMA Premium: No
• DOE: No
• CSA E: No
• Approbation Marks: UL, CSA, RoHS
• UL Listed: Yes
• CSA certificate: Yes
• NOM certificate: No
• UL Recognized: No
• RoHS Compliant: Yes
• Energy Star: No
• EMC Immunity: FCC Non-Consumer
• FIDE Certificate: No
• SASO Certificate: No
• cUL certificate: No
• Circle E logo: No

Operating Characteristics

• Power Factor: 0.98
• Automatic restart: Yes
• Sound Rating: A
• Input Power Gear: 239-237 W
• Ballast factor: 1 -
• Ignition time: 1.5 s
• Ballast Efficacy Factor: 0.42 -
• Lamp Current Crest Factor: 1.7 -
• Max THD: 10 %

Product Dimensions

• Length A1: 16.70 in
• Width B1: 1.70 in
• Length A2: 16.34 in
• Height C1: 1.18 in

Wiring Characteristics

• Wire Length by Color: See data sheet
• Allowed Wiring Config(Tandem): Yes
• Max Dist. Ball to Lamp(Tandem): Blue & Brown = 20'
• Wire Gauge: 18AWG
• Color output terminals: No terminals
• Allowed Wiring Config(Remote): Yes
• Wire Striplength: 0.50/0.375 mm
• Connector type: No connector
• Allowed Wiring Config(Through): Yes
• Lamp Connection: Series
• Wire Type: Solid
• Color input terminals: No terminals
• Max Dist. Ball to Lamp(Remote): 20'
• Max Dist.Ball to Lamp(Through): Blue & Brown = 20'

System Chars On Driver Level

• Rated Lamp Watts: 54W

Temperature Characteristics

• T-case maximum: 90 C
