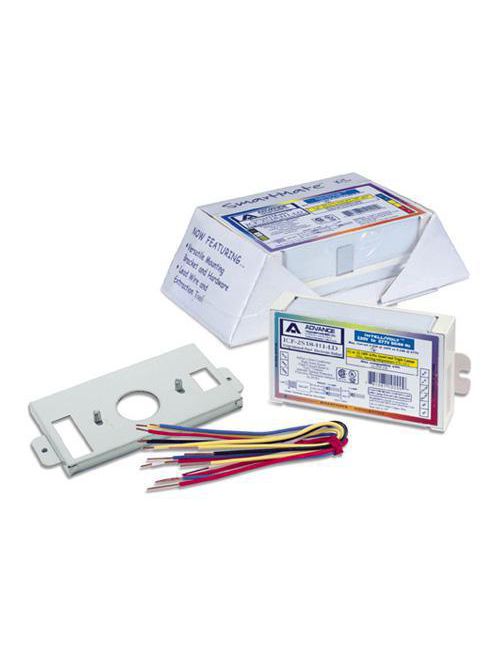

Advance ICF2S42M2LDK 120/230/277 VAC 50/60 Hz 42 W 4-Pin 2-Lamp Electronic Ballast Kit
Product image thumbnail 0
Product image thumbnail 1
$42.86/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Advance Transformer
Mfg Catalog # ICF2S42M2LDK
North Coast Part # 18017

idw

Product Data

  • Bar code on case: 30781087117799
  • Full product name: ELE BAL (2) 42W CFL (4-PIN) 120/277V KIT
  • Bar code on pack: 781087102947
  • Short product name: ELE BAL (2) 42W CFL (4-PIN) 120/277V KIT
  • Product number: ICF2S42M2LDK
  • Pieces per Sku: 1
  • Logistics code(s): 913710209004
  • Skus/Case: 12
  • eop_net_weight_pp: 0.404 kg

General Characteristics

  • Number of Lamps: 1/2 piece
  • Housing Dimensions: 4.98" x 3.0" x 1.29"
  • Lamp Type: CFTR42W/GX24Q
  • Line Frequency: 50/60 Hz
  • Suitable for Outdoor use?: Yes
  • Housing: M2
  • Family Name: SmartMate
  • Ballast Type: Electronic Fluorescent
  • Housing Material: Metal
  • Base Model: ICF2S42M2LD
  • Input Voltage: 120-277 V
  • Starting Method: Programmed Start

Approval & Application Chars

  • FIDE Certificate: No
  • DOE: No
  • UL Recognized: No
  • cUL certificate: No
  • CSA certificate: Yes
  • UL Listed: Yes
  • Energy Star: No
  • EMC Immunity: FCC Non-Consumer
  • RoHS Compliant: Yes
  • NOM certificate: Yes
  • Approbation Marks: UL, CSA, RoHS
  • CEE Rated: No
  • NEMA Premium: No
  • SASO Certificate: No
  • Circle E logo: No
  • CSA E: No
  • CEC Listing: Yes

Operating Characteristics

  • Ballast Efficacy Factor: 1.04 -
  • Automatic restart: Yes
  • Lamp Current Crest Factor: 1.5 -
  • Sound Rating: A
  • Input Power Gear: 93-93 W
  • Ballast factor: 0.97 -
  • Max THD: 10 %
  • Ignition time: 1.5 s
  • Power Factor: 0.98

Product Dimensions

  • Height C1: 1.29 in
  • Length A2: 4.20 in
  • Length A3: 2.00 in
  • Width B1: 3.00 in
  • Length A1: 4.55 in

Wiring Characteristics

  • Max Dist. Ball to Lamp(Tandem): 2-L: Red = 6'
  • Wire Gauge: 18AWG
  • Wire Length by Color: No wires
  • Wire Striplength: 0.375 mm
  • Allowed Wiring Config(Tandem): Yes
  • Max Dist. Ball to Lamp(Remote): 1-L = 15' / 2-L = 6'
  • Lamp Connection: Series
  • Allowed Wiring Config(Through): Yes
  • Connector type: Poke-In
  • Color output terminals: RED, YEL & BLU
  • Color input terminals: BLK & WHT
  • Allowed Wiring Config(Remote): Yes
  • Max Dist.Ball to Lamp(Through): 2-L: Red = 6'
  • Wire Type: Solid

System Chars On Driver Level

  • Rated Lamp Watts: 42W

Temperature Characteristics

  • T-case maximum: 75 C

Documents

Other Downloads

Leaflets

Overview

UPC 78108711779
GTiN 00781087117798
Length 4.20 in
Width 3.00 in
Type Electronic
Height 1.29 in
Wire Size 18 AWG
Wire Type Solid
Frequency 50/60 Hz
Wattage 42 Watt
Family Brand Name Advance
Lamp Type 42 W 4-Pin 3-Tube Compact Fluorescent
Number of Lamps 2
Ballast Type Electronic Fluorescent
Housing Material Metal
Blade Dimensions 126 mm L x 76 mm W x 33 mm H
Power Factor 0.98
Thermal Protection Class I
Lamp Wattage 42 W
Input Voltage 120/277 V
Input Wattage 93-93 W
Voltage 120-277 Volt
