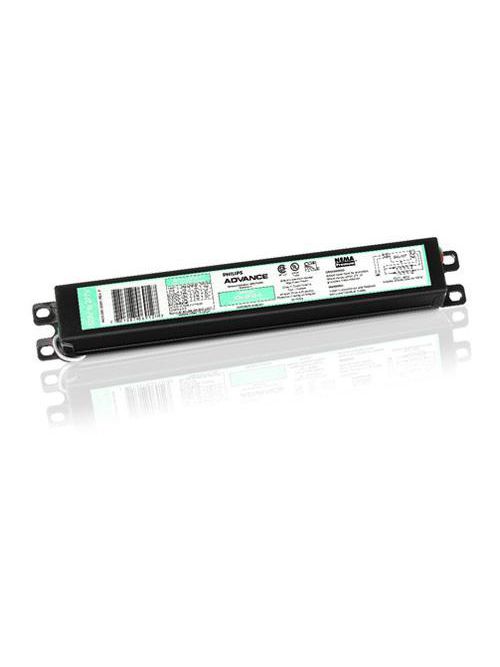

Advance ICN1P32N35I 120/230/277 VAC 50/60 Hz 32 W 1-Lamp T8 Electronic Ballast

idw

Product Data

• Bar code on case: 30781087074061
• Skus/Case: 10
• Product number: ICN1P32N35I
• eop_net_weight_pp: 0.277 kg
• Logistics code(s): 913710852301
• Full product name: ELE BALLAST (1) F32T8 120-277V
• Pieces per Sku: 1
• Bar code on pack: 781087074060
• Short product name: ELE BALLAST (1) F32T8 120-277V

General Characteristics

• Family Name: Centium
• Ballast Type: Electronic Fluorescent
• Number of Lamps: 1 piece
• Lamp Type: F32T8
• Suitable for Outdoor use?: Yes
• Base Model: ICN1P32N
• Line Frequency: 50/60 Hz
• Starting Method: Instant Start
• Housing Material: Metal
• Input Voltage: 120-277 V
• Housing Dimensions: 9.5" x 1.3" x 1.0"
• Housing: N

Approval & Application Chars

• CSA certificate: Yes
• CEC Listing: Yes
• CEE Rated: No
• Circle E logo: No
• NEMA Premium: No
• CSA E: No
• UL Recognized: No
• RoHS Compliant: Yes
• SASO Certificate: No
• EMC Immunity: FCC Non-Consumer
• Energy Star: No
• Approbation Marks: UL, CSA, RoHS
• FIDE Certificate: No
• UL Listed: Yes
• DOE: No
• cUL certificate: No
• NOM certificate: No

Operating Characteristics

• Lamp Current Crest Factor: 1.7 -
• Max THD: 10 %
• Ballast factor: 0.91 -
• Input Power Gear: 29-30 W
• Power Factor: 0.98
• Sound Rating: A
• Ballast Efficacy Factor: 3.14 -
• Automatic restart: Yes
• Ignition time: 0.1 s

Product Dimensions

• Width B1: 1.30 in
• Length A2: 8.90 in
• Height C1: 1.00 in
• Length A1: 9.50 in

Wiring Characteristics

• Wire Length by Color: See data sheet
• Connector type: No connector
• Allowed Wiring Config(Through): No
• Allowed Wiring Config(Tandem): No
• Max Dist. Ball to Lamp(Remote): ES = 6' / Standard = 20'
• Max Dist.Ball to Lamp(Through): NA
• Color output terminals: No terminals
• Wire Striplength: 0.50/0.375 mm
• Allowed Wiring Config(Remote): Yes
• Wire Type: Solid
• Color input terminals: No terminals
• Max Dist. Ball to Lamp(Tandem): NA
• Lamp Connection: Parallel
• Wire Gauge: 18AWG

System Chars On Driver Level

• Rated Lamp Watts: 32W

Temperature Characteristics

• T-case maximum: 70 C
