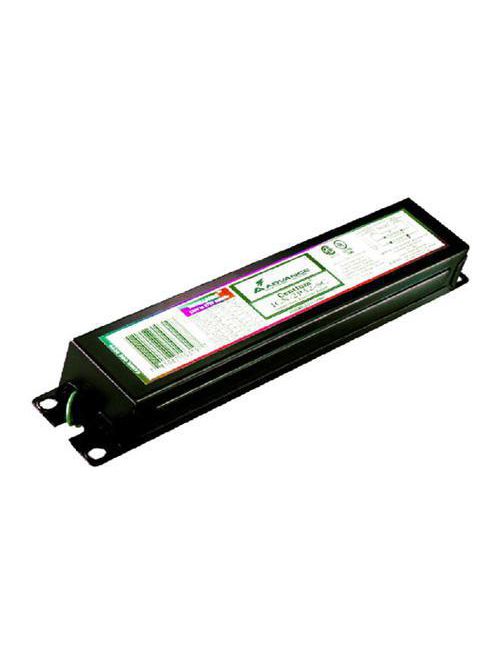

Advance ICN2S28N35I 120 to 277 VAC 50/60 Hz 28 W 2-Lamp T5 Electronic Ballast
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$79.79/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Advance Transformer
Mfg Catalog # ICN2S28N35I
North Coast Part # 606717

idw

Product Data

  • Skus/Case: 10
  • Bar code on case: 30781087080727
  • eop_net_weight_pp: 0.373 kg
  • Full product name: ELE BALLAST (2) F28T5 120-277V
  • Pieces per Sku: 1
  • Product number: ICN2S28N35I
  • Short product name: ELE BALLAST (2) F28T5 120-277V
  • Logistics code(s): 913710891601
  • Bar code on pack: 781087080726

General Characteristics

  • Housing Dimensions: 9.5" x 1.3" x 1.0"
  • Number of Lamps: 1/2 piece
  • Suitable for Outdoor use?: Yes
  • Line Frequency: 50/60 Hz
  • Housing Material: Metal
  • Housing: N
  • Starting Method: Programmed Start
  • Base Model: ICN2S28N
  • Ballast Type: Electronic Fluorescent
  • Family Name: Centium
  • Input Voltage: 120-277 V
  • Lamp Type: F28T5

Approval & Application Chars

  • NEMA Premium: No
  • RoHS Compliant: Yes
  • DOE: No
  • cUL certificate: No
  • EMC Immunity: FCC Non-Consumer
  • Energy Star: No
  • Approbation Marks: UL, CSA, RoHS
  • SASO Certificate: No
  • Circle E logo: No
  • UL Listed: Yes
  • UL Recognized: No
  • CSA certificate: Yes
  • CSA E: No
  • FIDE Certificate: Yes
  • NOM certificate: Yes
  • CEC Listing: Yes
  • CEE Rated: No

Operating Characteristics

  • Ignition time: 1.5 s
  • Ballast factor: 1.03 -
  • Input Power Gear: 63-62 W
  • Power Factor: 0.98
  • Ballast Efficacy Factor: 1.62 -
  • Lamp Current Crest Factor: 1.7 -
  • Max THD: 10 %
  • Sound Rating: A
  • Automatic restart: Yes

Product Dimensions

  • Length A1: 9.50 in
  • Length A2: 8.90 in
  • Height C1: 1.00 in
  • Width B1: 1.30 in

Wiring Characteristics

  • Connector type: No connector
  • Wire Striplength: 0.50/0.375 mm
  • Wire Gauge: 18AWG
  • Max Dist. Ball to Lamp(Tandem): Blue = 10'
  • Wire Length by Color: See data sheet
  • Allowed Wiring Config(Tandem): Yes
  • Max Dist. Ball to Lamp(Remote): 20'
  • Allowed Wiring Config(Through): Yes
  • Max Dist.Ball to Lamp(Through): Blue = 10'
  • Wire Type: Solid
  • Allowed Wiring Config(Remote): Yes
  • Color output terminals: No terminals
  • Color input terminals: No terminals
  • Lamp Connection: Series

System Chars On Driver Level

  • Rated Lamp Watts: 28W

Temperature Characteristics

  • T-case maximum: 70 C

Documents

Leaflets

Other Downloads

Overview

GTiN 00781087080726
Length 8.90 in
Width 1.30 in
Type Electronic Fluorescent
Height 1.00 in
Wire Size 18 AWG
Wire Type Solid
Frequency 50/60 Hz
Wattage 28 Watt
Family Brand Name Advance
Lamp Type F28T5
Number of Lamps 2
Ballast Type Electronic Fluorescent
Housing Material Metal
Start Type PROGRAMMED START
Power Factor 0.98
Ballast Factor 1.028
Lamp Wattage 28 W
Total Harmonic Distortion 10
Sub Brand Centium
Product UPC 78108708072
Input Voltage 120/277 V
Input Wattage 63-62 W
Voltage 120-277 Volt
