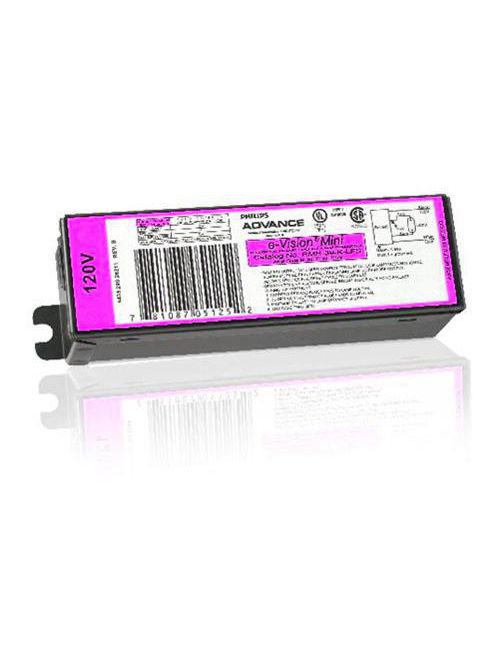

ADV RMH20KBLSM ELE MH BAL 20W M175
Product image thumbnail 0
Product image thumbnail 1
$249.97/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Advance Transformer
Mfg Catalog # RMH20KBLSM
North Coast Part # 753157

idw

Product Data

  • Skus/Case: 12
  • eop_net_weight_pp: 0.178 kg
  • Bar code on case: 50781087092021
  • Pieces per Sku: 1
  • Full product name: ELE MH BAL 20W M175 120V
  • Product number: RMH20KBLSM
  • Short product name: ELE MH BAL 20W M175 120V
  • Bar code on pack: 781087092019
  • Logistics code(s): 913701221502

General Characteristics

  • Line Frequency: 50/60 Hz
  • Lamp Type: 22W Philips Mini MC
  • Housing Dimensions: 4.1" x 1.3" x 1.2"
  • Input Voltage: 120 V
  • Family Name: eVision
  • Housing Material: Metal
  • Lifetime 90% surv.@Tcaselife: 50000 hr
  • Base Model: RMH20KBLS
  • Housing: K
  • Suitable for Outdoor use?: Yes
  • Ballast Type: Electronic HID
  • Number of Lamps: 1 piece

Approval & Application Chars

  • CSA certificate: Yes
  • FIDE Certificate: No
  • NOM certificate: No
  • EISA: No
  • CEC Listing: No
  • EMC Immunity: FCC Non-Consumer
  • VDE certificate: No
  • UL Listed: Yes
  • ANSI Code: C175
  • CSA Recognized: No
  • RoHS Compliant: Yes
  • UL Recognized: No
  • ENEC certificate: No
  • cUL certificate: No
  • CE marking: No
  • SASO Certificate: No

Operating Characteristics

  • Input Power Gear: 26 W
  • Power Factor: 0.90
  • Sound Rating: A
  • Ignition time: 1200 s
  • Ballast factor: 1 -
  • Lamp Current Crest Factor: 1.8 -
  • Max THD: 15 %

Product Dimensions

  • Height C1: 1.2 in
  • Width B2: 0.5 in
  • Length A1: 4.4 in
  • Length A3: 4.5 in
  • Width B1: 1.1 in
  • Length A2: 4.1 in

Wiring Characteristics

  • Allowed Wiring Config(Remote): Yes
  • Control Wire Gauge: NA
  • Wire Length by Color: All leads = 6"
  • Wire Gauge: 18AWG
  • Allowed Wiring Config(Through): No
  • Allowed Wiring Config(Tandem): No
  • Color input terminals: No terminals
  • Color output terminals: No terminals
  • Connector type: No connector
  • Wire Type: Stranded
  • Wire Striplength: 0.50 mm

System Chars On Driver Level

  • Rated Lamp Watts: 22

Temperature Characteristics

  • T-case maximum: 90 C

Documents

Other Downloads

Leaflets

Overview

UPC 78108709202
GTiN 00781087092026
Length 4.1 in
Width 0.5 in
Circuit Type LOW FREQUENCY
Height 1.2 in
Wire Size 18 AWG
Wire Type Stranded
Frequency 50/60 Hz
Wattage 20 Watt
Family Brand Name Philips Lighting
Lamp Type 22W Philips Mini MC
Number of Lamps 1
Ballast Type Electronic HID
Housing Material Metal
Start Type PULSE START
Power Factor 0.90
Sub Brand E-VISION
Input Voltage 120 V
Input Wattage 26 W
Voltage 120 Volt
