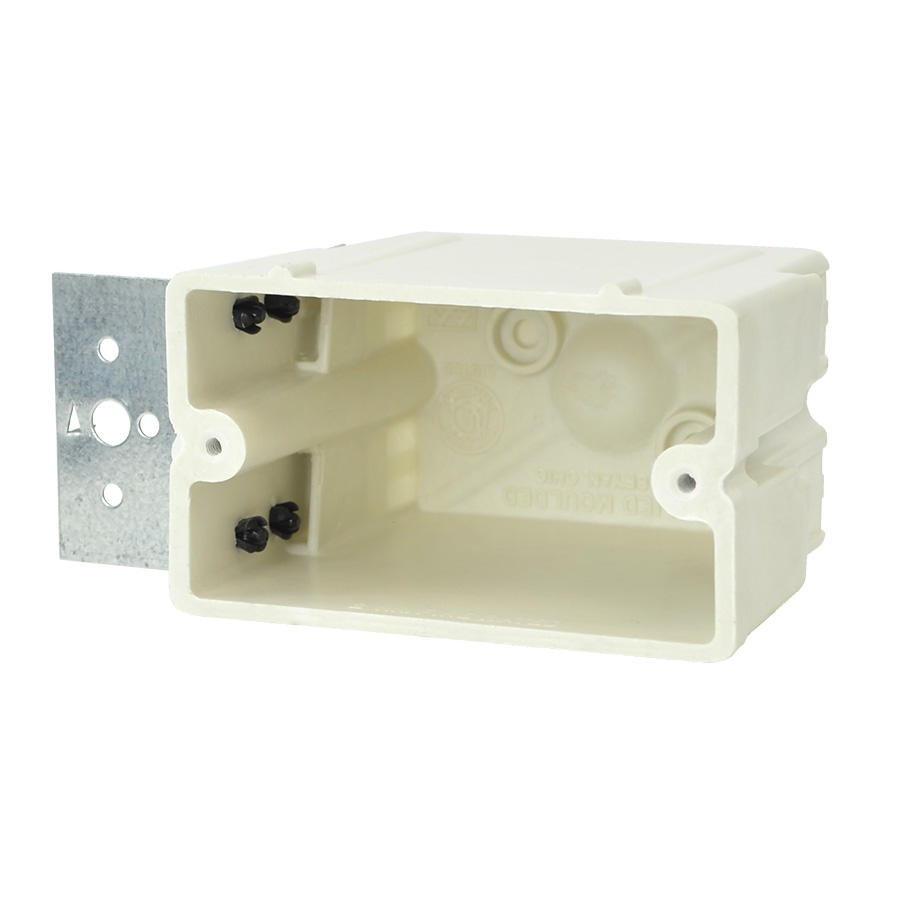

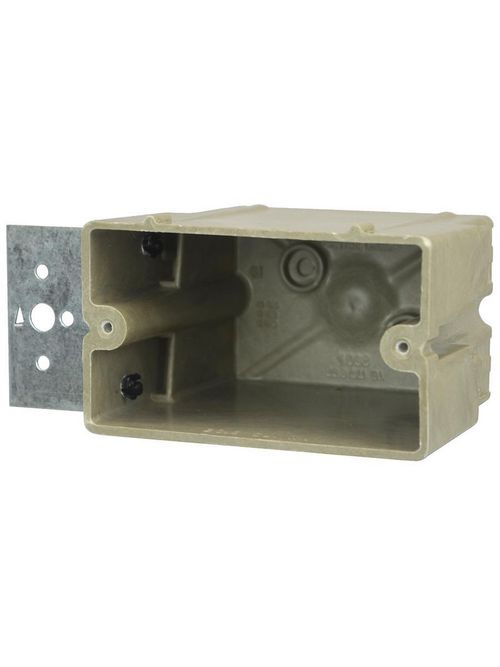

Allied Moulded Products 1098-Z4H 3-1/4 x 2-1/4 x 3-3/4 Inch 20.5 In 1-Gang Fiberglass Offset Switch/Receptacle Outlet Box

Features

Machine tapped device holes, leveling ribs, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures

Specifications

• Brand: fiberglassBOX
• Catalog #: 1098-Z4H
• Height: 3-13/16 in.
• Width: 2-1/4 in.
• Depth: 3-1/4 in.
• Volume: 20.5 cu. in.
• Type of Installation: New Work
• Wall Box
• Number of Gangs: 1
• Carton Quantity: 50
• Carton Weight: 20 lb.
• UPC: 085339250258
• UNSPSC: 39121308
• Country of Origin: United States of America
• Color: Beige/tan
• Material: Fiberglass reinforced polyester BMC
• Mounting: Stud mount-horizontal "Z" hanger bracket with 1/2" offset
• Additional Materials: Galvanized steel brackets and plated carbon steel fasteners

Application

New work residential construction stud face mounted 2 HR fire resistive walls & ceilings

Standards

ANSI / UL 514C: File No. E30594

Fire Classification

Fire Test of Building Construction Materials

• ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
• Note: Products must also be certified to: ANSI / UL 514C

Fire Resistance Classification in Wall Assemblies 2-Hours or less

• Shall be separated by a horizontal distance of not less than 3 inches

Fire Resistance Classification in Floor-Ceiling Assemblies 2-Hours or Less

• Distance between boxes in adjacent cavities may be reduced to 5 ½ inches
• Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)
