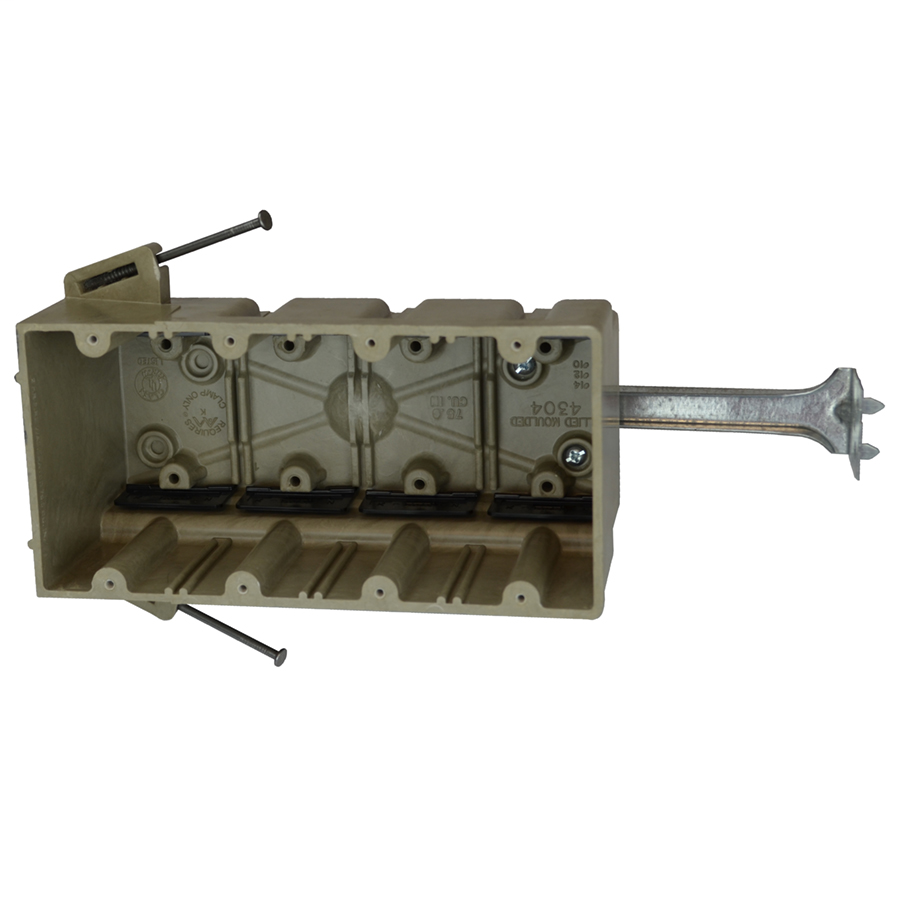

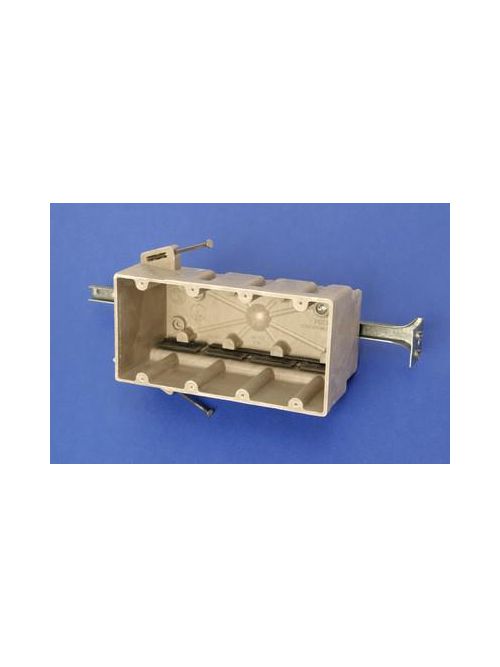

Allied Moulded Products 4304-NBK 3-9/16 x 7-1/2 x 3-3/4 Inch 75 In 4-Gang Angled Mid-Nail Switch/Receptacle Outlet Box
$1,039.81/c (100 ea)
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allied Molded Products
Mfg Catalog # 4304-NBK
North Coast Part # 665625

Features

Machine tapped device holes, slot provision for low voltage divider, offset gauge marks, leveling ribs, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures, Speed "K" Clamps factory installed

Specifications

  • Brand: fiberglassBOX
  • Catalog #: 4304-NBK
  • Height: 3-3/4 in.
  • Width: 7-1/2 in.
  • Depth: 3-9/16 in.
  • Volume: 75 cu. in.
  • Type of Installation: New Work
  • Wall Box
  • Number of Gangs: 4
  • Carton Quantity: 18
  • Carton Weight: 25 lb.
  • UPC: 085339175537
  • UNSPSC: 39121308
  • Country of Origin: United States of America
  • Color: Beige/tan
  • Material: Fiberglass reinforced polyester BMC
  • Mounting: Angled mid nails with adjustable stabilizer bar

Additional Materials

  • Carbon steel fasteners
  • Galvanized steel brackets and plated carbon steel fasteners
  • Polyvinyl chloride clamps

Application

New work residential construction 2 HR fire resistive walls

Standards

ANSI / UL 514C: File No. E30594

Fire Classification

Fire Test of Building Construction Materials

  • ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
  • Note: Products must also be certified to: ANSI / UL 514C

Fire Resistance Classification in Wall Assemblies 2-Hours or less

  • Shall be separated by a horizontal distance of not less than 24 inches
  • Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)

Overview

UPC 08533917553
GTiN 00085339175537
Width 7-1/2 in
Size D=3 9/16", W=7 1/2", H=3 3/4"
Color Beige/tan
Type Four Gang Electrical Box For Use With Nonmetallic Sheathed Cable
Insulation Type Nonconductive Nonmetallic
Material Fiberglass Reinforced Polyester - Thermoset,Galvanized Steel
Applications New work residential construction 2 HR fire resistive walls
Mounting Type Angled Mid Nails With Adjustable Stabilizer Bar
Depth 3 in
Height 3 in
Family Brand Name Allied Moulded
Construction Injection Molded
Carton Qty 18
Number of Gangs 4 Gang
Cable Entry Sixteen "no Tools" Knockouts With 8 Speed "K" Clamps
Sub Brand FIBERGLASSBOX
