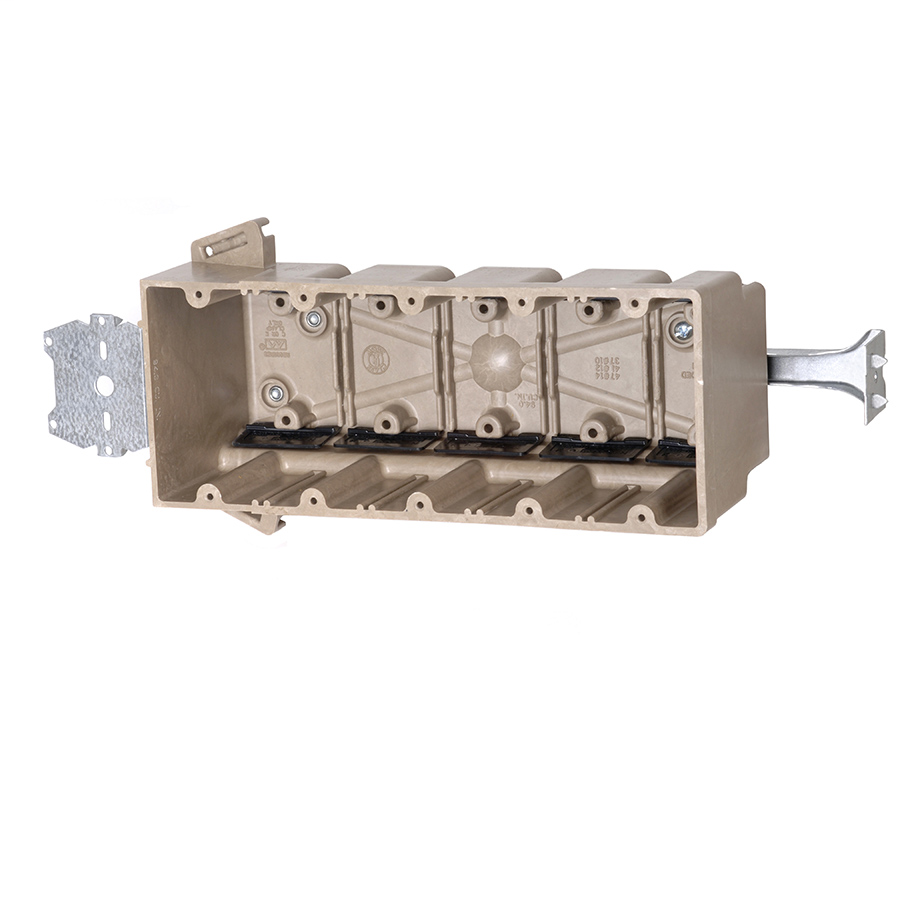

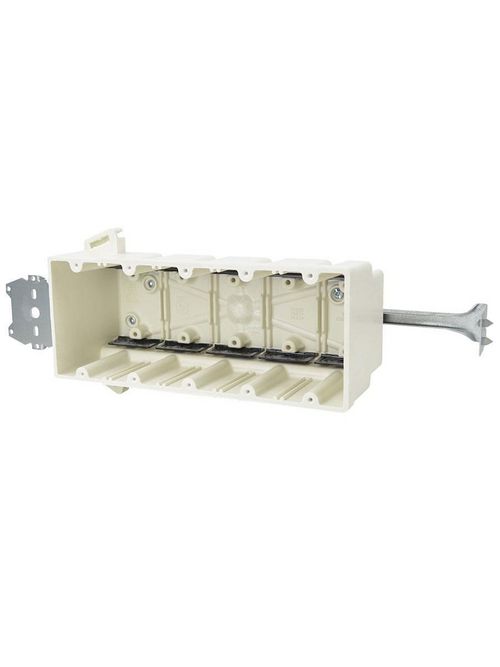

ALLIED 5305-Z4BK 94 CI 5G BOX 1/2 I
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$4,200.86/c (100 ea)
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allied Molded Products
Mfg Catalog # 5305-Z4BK
North Coast Part # 420531

Features

Machine tapped device holes, slot provision for low voltage divider, leveling ribs, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures, Speed "K" Clamps factory installed

Specifications

  • Brand: fiberglassBOX
  • Catalog #: 5305-Z4BK
  • Height: 3-3/4 in.
  • Width: 9-5/16 in.
  • Depth: 3-9/16 in.
  • Volume: 94 cu. in.
  • Type of Installation: New Work
  • Wall Box
  • Number of Gangs: 5
  • Carton Quantity: 6
  • Carton Weight: 12 lb.
  • UPC: 085339180036
  • UNSPSC: 39121308
  • Country of Origin: United States of America
  • Color: Beige/tan
  • Material: Fiberglass reinforced polyester BMC
  • Mounting: Stud mount "Z" hanger bracket with 1/2" offset and adjustable stabilizer bar

Additional Materials

  • Galvanized steel brackets and plated carbon steel fasteners
  • Polyvinyl chloride clamps

Application

New work residential construction stud face mounted 2 HR fire resistive walls

Standards

ANSI / UL 514C: File No. E30594

Fire Classification

Fire Test of Building Construction Materials

  • ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
  • Note: Products must also be certified to: ANSI / UL 514C

Fire Resistance Classification in Wall Assemblies 2-Hours or less

  • Shall be separated by a horizontal distance of not less than 24 inches
  • Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)

Overview

UPC 08533918003
Item Long Description 94.0 Cu. In. Five gang electrical box for use with nonmeatllic sheathed cable - Machine tapped device holes, leveling ribs, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures - New work residential construction stud face mounted 2 HR fire resistive walls - Fiberglass reinforced polyester - thermoset box with galvanized steel bracket and stabilizer bar - Size: D=3 9/16", W=9 7/16", H=3 3/4" - Mount with Stud mount "Z" hanger bracket with 1/2" offset and adjustable stabilizer bar
GTiN 00085339180036
Width 9-5/16 in
Size D=3 9/16", W=9 7/16", H=3 3/4"
Color Beige,Tan
Type Five Gang Electrical Box For Use With Nonmetallic Sheathed Cable
Insulation Type Nonconductive Nonmetallic
Material Fiberglass Reinforced Polyester - Thermoset,Galvanized Steel
Applications New work residential construction stud face mounted 2 HR fire resistive walls
Mounting Type Stud Mount "Z" Hanger Bracket With 1/2" Offset And Adjustable Stabilizer Bar
Depth 3 in
Height 3 in
Standard UL 514 C
Family Brand Name Allied Moulded
Construction Injection Molded
Number of Gangs 5 Gang
Cable Entry Knockouts
Sub Brand FIBERGLASSBOX
