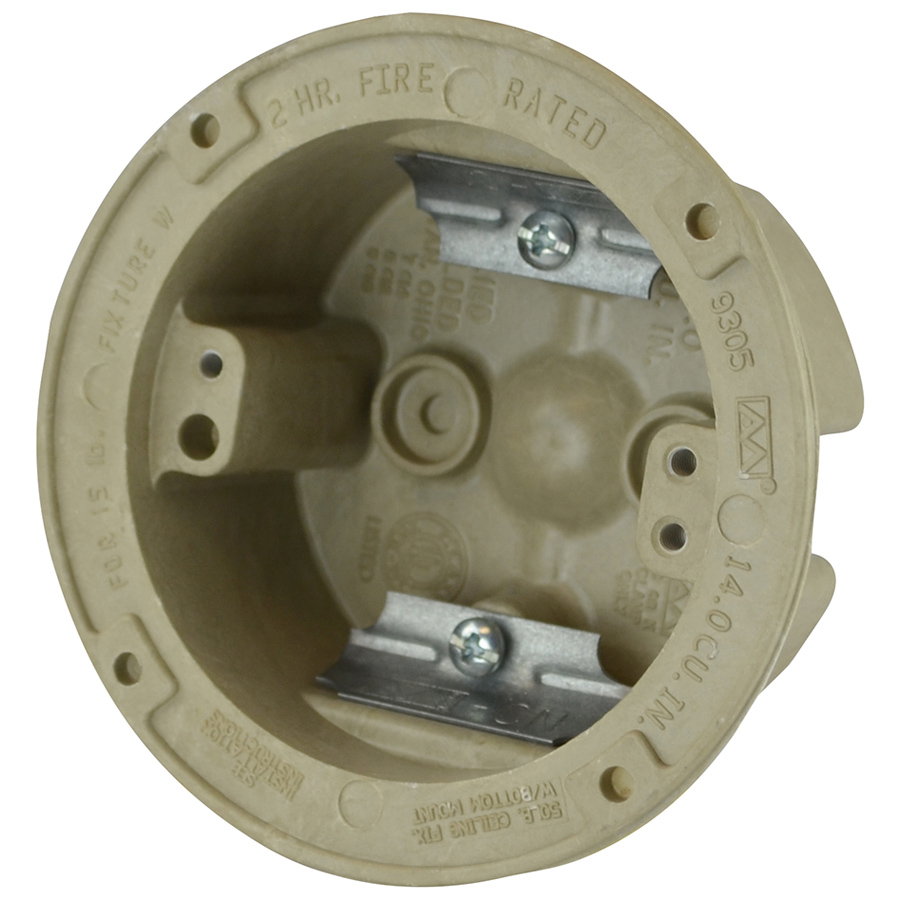

ALLIED 9305-C2 14 CI 3.5 RND BOX CL
$223.12/c (100 ea)
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allied Molded Products
Mfg Catalog # 9305-C2
North Coast Part # 1344127

Features

Machine tapped fixture holes, round exterior for easy cut-in, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures

Specifications

  • Brand: fiberglassBOX
  • Catalog #: 9305-C2
  • Width: 3-1/2 in.
  • Depth: 1-3/4 in.
  • Volume: 14 cu. in.
  • Type of Installation: Old Work
  • Round Ceiling Box
  • Carton Quantity: 50
  • Carton Weight: 17 lb.
  • UPC: 085339100324
  • UNSPSC: 39121316
  • Country of Origin: United States of America
  • Color: Beige/tan
  • Material: Fiberglass reinforced polyester BMC
  • Mounting: Bottom mount button holes or flange holes
  • Additional Materials: Plated carbon steel clamp and fasteners
  • Support Rating: 15 lbs fixture support - flange mount or 50 lbs. fixture support - bottom mounted

Application

Old work residential construction 2 HR fire resistive walls (15 lbs fixture support - flange mount) and ceilings (50 lbs. fixture support - bottom mounted)

Standards

ANSI / UL 514C: File No. E30594

Fire Classification

Fire Test of Building Construction Materials

  • ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
  • Note: Products must also be certified to: ANSI / UL 514C

Fire Resistance Classification in Wall Assemblies 2-Hours or less

  • Shall be separated by a horizontal distance of not less than 3 inches

Fire Resistance Classification in Floor-Ceiling Assemblies 2-Hours or Less

  • Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)
  • Distance between boxes in adjacent cavities may be reduced to 5 ½ inches

Overview

UPC 08533910032
GTiN 00085339100324
Width 3 in
Size Depth=1 3/4", Dia=3 1/2"
Color Beige/tan
Type 3.5" Dia. Round Fixture Support Box For Use With Nonmetallic Sheathed Cable
Insulation Type Nonconductive Nonmetallic
Material Fiberglass Reinforced Polyester
Applications Old work residential construction 2 HR fire resistive walls (15 lbs fixture support - flange mount) and ceilings (50 lbs. fixture support - bottom mounted)
Mounting Type Bottom Mount Button Holes Or Flange Holes
Depth 1-3/4 in
Standard UL 514 C
Family Brand Name Allied Moulded
Construction Injection Molded
Carton Qty 50
Cable Entry Wire Clamps,Knockouts
Sub Brand FIBERGLASSBOX
