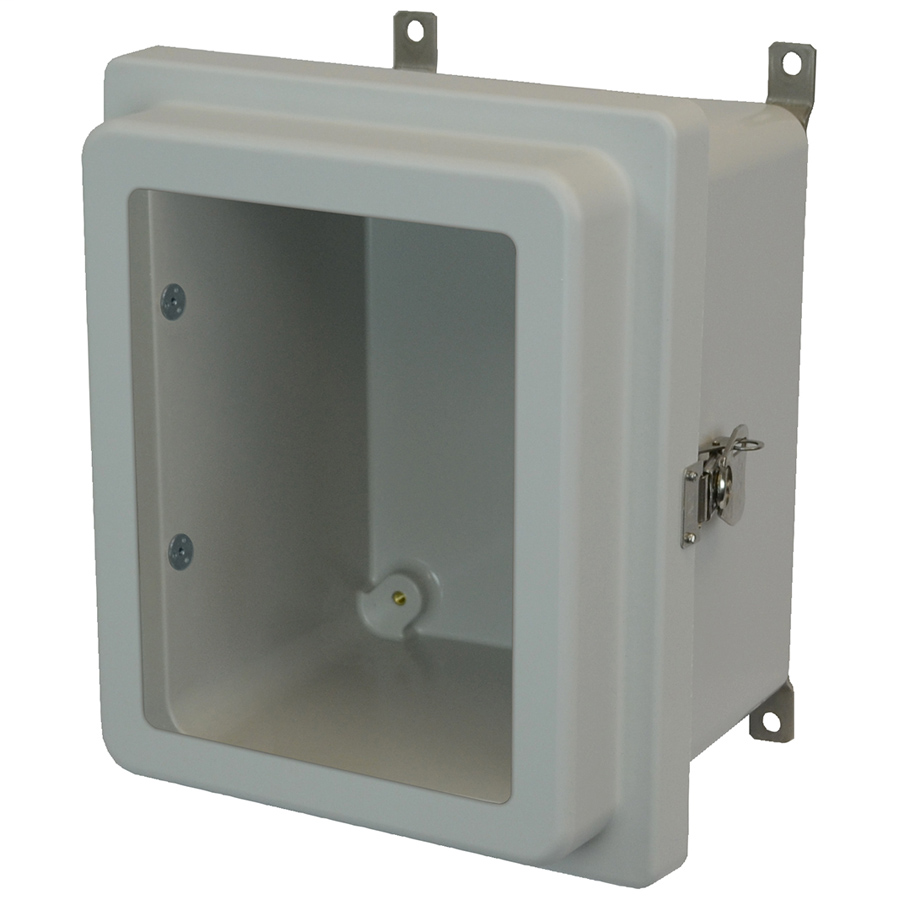

ALLIED AM1084RTW 10x8x4 ENCL RSD TW
$191.98/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allied Molded Products
Mfg Catalog # AM1084RTW
North Coast Part # 1161674

Features

Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel. Rigid design with back panel inserts plus stainless steel mounting brackets and a gasket system encased in a continuous channel on the cover.

Specifications

  • Cover Type: Twist Latch Hinged Window Cover
  • Brand: AM Series JIC Sizes
  • Catalog #: AM1084RTW
  • Height: 10.14 in.
  • Width: 8.26 in.
  • Depth: 4 in.
  • Usable Depth: 5.1 in.
  • Volume: 492 cu. in.
  • Carton Quantity: 1
  • Carton Weight: 7 lb.
  • UPC: 085339840152
  • UNSPSC: 39121324
  • Country of Origin: United States of America
  • Color: RAL 7035 - Gray with clear window
  • Material: ULTRAGUARDĀ® Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
  • Mounting: Stainless steel feet fastened to back side brass inserts
  • Enclosure Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit

Additional Materials

  • 316 stainless steel external hardware (hinges, latches and fasteners)
  • 316 stainless steel mounting brackets
  • Plated carbon steel internal hardware
  • Brass inserts
  • Polyurethane (FIP) Formed-In-Place gasket system

Application

Enclose and protect electrial and electronic controls, instruments or components for indoor and outdoor applications. Especially well suited for extreme temperature and corrosive environments.

Standards

UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175

CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590

Complies with:

  • EN / IEC 60204-1 and 60529 Type IP66
  • RoHS directive

Related Products & Accessories

  • AMU1084TW
  • AMPOLEMNT8
  • AMP1084CCL
  • AMHS075
  • PLA108
  • PL108
  • PF108
  • PG108
  • HFP108
  • AM1084RT

Overview

UPC 08533984015
GTiN 00085339840152
Width 8.26 in
Size A=10.14", B=8.26", C=4.13" plus 1.75" raised cover, usable depth=5.21"
Color RAL 7035 - Gray with clear window
Type NEMA 4X Type Nonmetallic Enclosure
Insulation Type Nonconductive Nonmetallic
Material ULTRAGUARD - Fiberglass Reinforced Polyester - Thermoset
Applications Industrial control panels intended for general industrial use, operating from a voltage of 600 volts or less
Mounting Type Stainless Steel Feet Fastened To Back Side Brass Inserts
Depth 4 in
Height 10.14 in
Standard UL 508A - Industrial Control Panels
Family Brand Name Allied Moulded
Construction Compression Molded
Carton Qty 1
Sub Brand AM JIC
