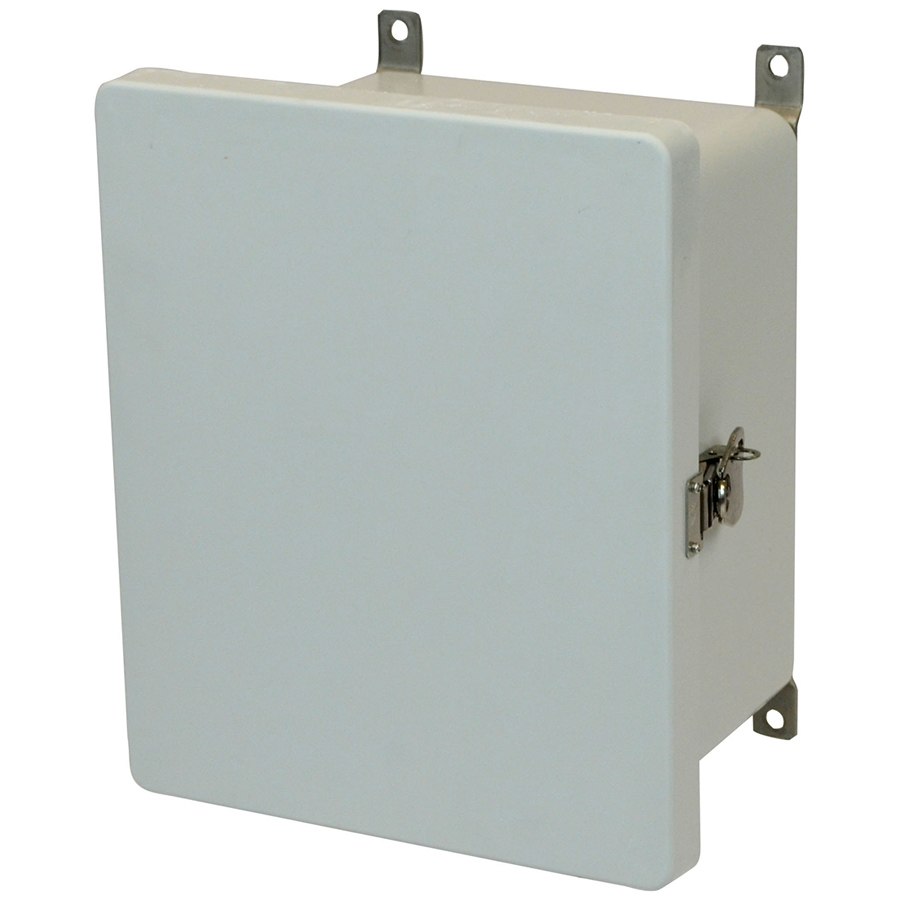

ALLIED AM1086T 10x8x6 ENCLOSURE TWI

Features

Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel. Rigid design with back panel inserts plus stainless steel mounting brackets and a gasket system encased in a continuous channel on the cover.

Specifications

• Cover Type: Twist Latch Hinged Solid/Opaque Cover
• Brand: AM Series JIC Sizes
• Catalog #: AM1086T
• Height: 10.14 in.
• Width: 8.26 in.
• Depth: 6.01 in.
• Usable Depth: 5.68 in.
• Volume: 513 cu. in.
• Carton Quantity: 1
• Carton Weight: 6 lb.
• UPC: 085339910886
• UNSPSC: 39121324
• Country of Origin: United States of America
• Color: RAL 7035 - Gray
• Material: ULTRAGUARD® Fiberglass reinforced polyester - compression molded SMC box and Cover
• Mounting: Stainless steel feet fastened to back side brass inserts
• Enclosure Accessories: Back Panels, Hole Plugs, Vent Kits, and Pole Mount Kit

Additional Materials

• 316 stainless steel external hardware (hinges, latches and fasteners)
• 316 stainless steel mounting brackets
• Plated carbon steel internal hardware
• Brass inserts
• Polyurethane (FIP) Formed-In-Place gasket system

Application

Enclose and protect electrial and electronic controls, instruments or components for indoor and outdoor applications. Especially well suited for extreme temperature and corrosive environments.

Standards

UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175

CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590

Complies with:

• EN / IEC 60204-1 and 60529 Type IP66
• RoHS directive
