Manufacturer Allied Molded Products
Mfg Catalog # AM864T
North Coast Part # 876748

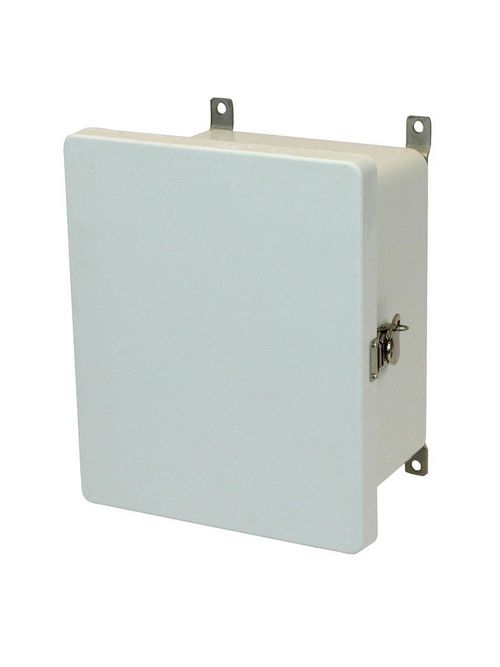

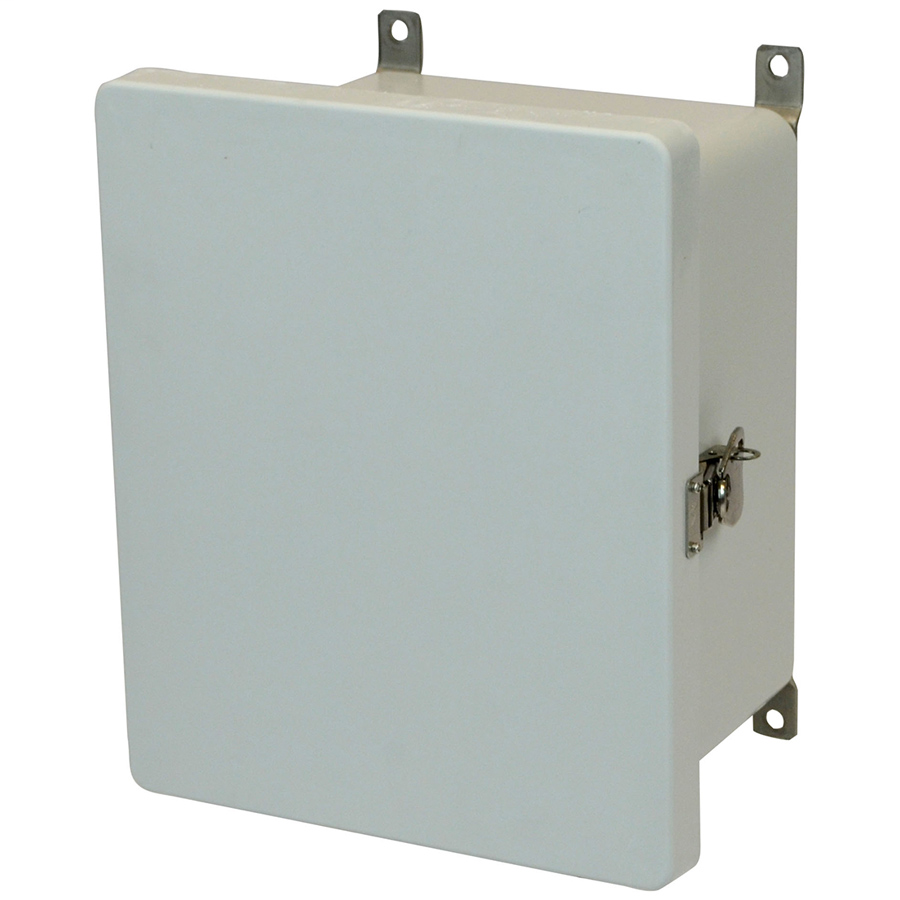

Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel. Rigid design with back panel inserts plus stainless steel mounting brackets and a gasket system encased in a continuous channel on the cover.


  • Cover Type: Twist Latch Hinged Solid/Opaque Cover
  • Brand: AM Series JIC Sizes
  • Catalog #: AM864T
  • Height: 8 in.
  • Width: 6.13 in.
  • Depth: 4.01 in.
  • Usable Depth: 3.71 in.
  • Volume: 203 cu. in.
  • Carton Quantity: 1
  • Carton Weight: 4 lb.
  • UPC: 085339908685
  • UNSPSC: 39121324
  • Country of Origin: United States of America
  • Color: RAL 7035 - Gray
  • Material: ULTRAGUARDĀ® Fiberglass reinforced polyester - compression molded SMC box and Cover
  • Mounting: Stainless steel feet fastened to back side brass inserts
  • Enclosure Accessories: Back Panels, Hole Plugs, Vent Kits, and Pole Mount Kit

Additional Materials

  • 316 stainless steel external hardware (hinges, latches and fasteners)
  • 316 stainless steel mounting brackets
  • Plated carbon steel internal hardware
  • Brass inserts
  • Polyurethane (FIP) Formed-In-Place gasket system


Enclose and protect electrial and electronic controls, instruments or components for indoor and outdoor applications. Especially well suited for extreme temperature and corrosive environments.


UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175

CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590

Complies with:

  • EN / IEC 60204-1 and 60529 Type IP66
  • RoHS directive

Related Products & Accessories

  • PLA86
  • PG86
  • AMP864L
  • PF86
  • AMU864T
  • PL86
  • AM864RTW
  • AMHS075


GTiN 00085339908685
Width 6.13 in
Size A=8.00", B=6.13", C=4.13", usable depth=3.68"
Color Gray
Type NEMA 4X Type Nonmetallic Enclosure
Insulation Type Nonconductive Nonmetallic
Material Polyester
Applications Industrial control panels intended for general industrial use, operating from a voltage of 600 volts or less
Mounting Type Stainless Steel Feet Fastened To Back Side Brass Inserts
Depth 3.71 in
Height 8 in
Standard UL 508A - Industrial Control Panels
Family Brand Name Allied Moulded
Construction Compression Molded
Sub Brand AM JIC
Product UPC 08533990868
