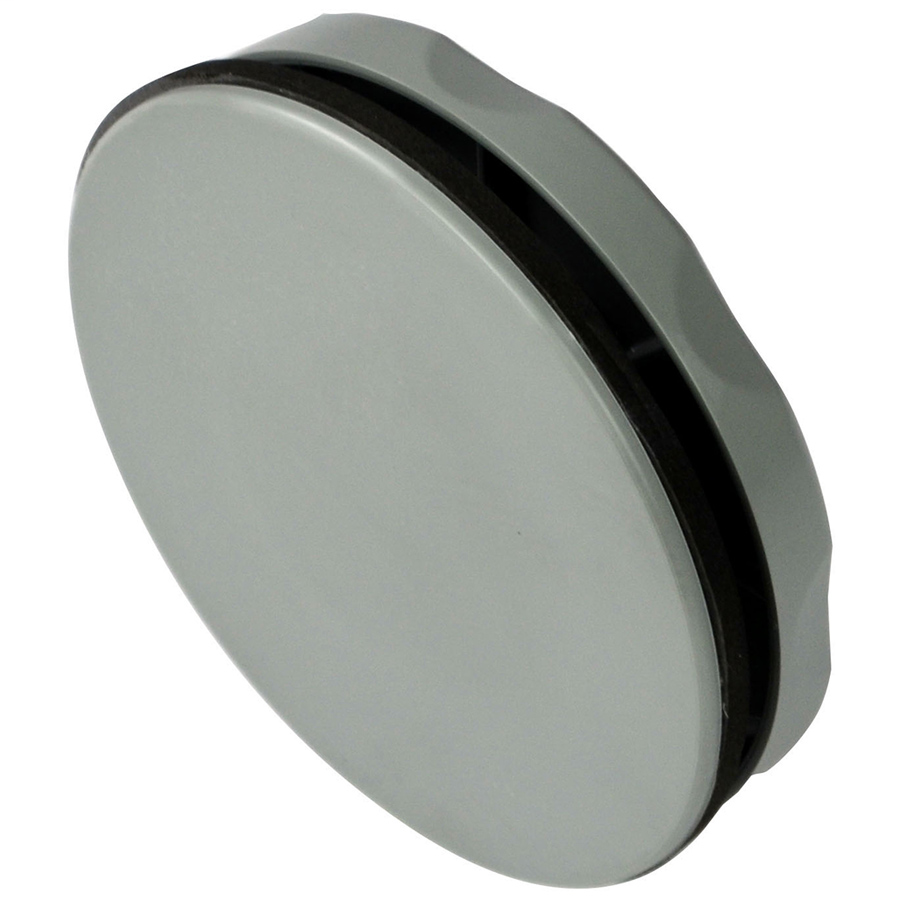

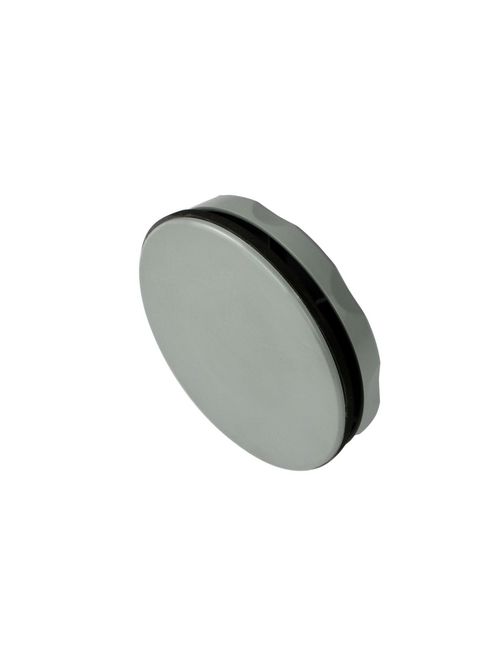

ALLIED AMHS100-GY 1 IN CND HOLE PLG
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,293.93/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allied Molded Products
Mfg Catalog # AMHS100-GY
North Coast Part # 1680091

Features

Plug fins are self centering, anti-rotational design for fast and easy one person assembly and no-tools tightening

Specifications

  • Brand: ULTRAPLUG
  • Catalog #: AMHS100-GY
  • Trade Size Ref: 1
  • Plugged Hole Dia. Range: 1.375-1.625 in.
  • Plug Diameter: 1.923 in.
  • Plug Head Height: 0.235 in.
  • Nut Height: 0.5 in.
  • Carton Quantity: 1
  • Carton Weight: 0.046 lb.
  • UPC: 085339996224
  • UNSPSC: 39121321
  • Patents: U.S. Patent No. 9,045,932
  • Country of Origin: United States of America
  • Color: ANSI 61 dark gray
  • Material: Polycarbonate
  • Additional Materials: Blended neoprene/EPDM gasket

Application

Capable of plugging unused holes in NEMA 4X enclosures and designed to maintain applicable NEMA/UL/CSA enclosure ratings

Standards

Meets Requirements: ANSI/UL50, ANSI/UL50E, and ANSI/UL508A; File No. E487574

UL® listed and recognized component for use with CSA® listed enclosure products Types 1, 3, 3R, 4, 4X, and 12.

Complies with:

1. EN / IEC 60204-1 and 60529 Type IP66

2. RoHS directive

Related Products & Accessories

  • AMHS100

Overview

UPC 08533999622
Item Long Description Brand Name:Allied Moulded Products, IncSub Brand:UltraplugType:NEMA 4X Enclosure Hole Plug AssemblySpecial Features:Plug fins are self centering, anti-rotational design for fast and easy one person assembly and no-tools tighteningApplication:Capable of sealing unused holes in NEMA 4X enclosures and designed to maintain applicable NEMA/UL/CSA enclosure ratingsStandard:UL 50E, UL 508A, CSA C22.2 No. 14-10, CSA C22.2 No. 94.2-07Material:Polycarbonate thermoplastic plug and nut, neoprene/EPDM gasketColor:ANSI 61 dark gray Insulation:Nonconductive nonmetallicConstruction:Injection molded plug and nut, stamped gasketConsist of:One plug, nut and gasket: Trade reference hole size: 1" conduit
GTiN 00085339996224
Color ANSI 61 dark gray
Type NEMA 4X Enclosure Hole Plug Assembly
Insulation Type Non-Conductive,Non-Metallic
Material Neoprene/EPDM,Polycarbonate Thermoplastic
Applications Capable of sealing unused holes in NEMA 4X enclosures and designed to maintain applicable NEMA/UL/CSA enclosure ratings
Standard CSA C22.2 No. 14-10,CSA C22.2 No. 94.2-07,UL 508A,UL 50E
Family Brand Name Allied Moulded
Construction Injection Molded Plug And Nut,Stamped Gasket
Sub Brand Ultraplug
