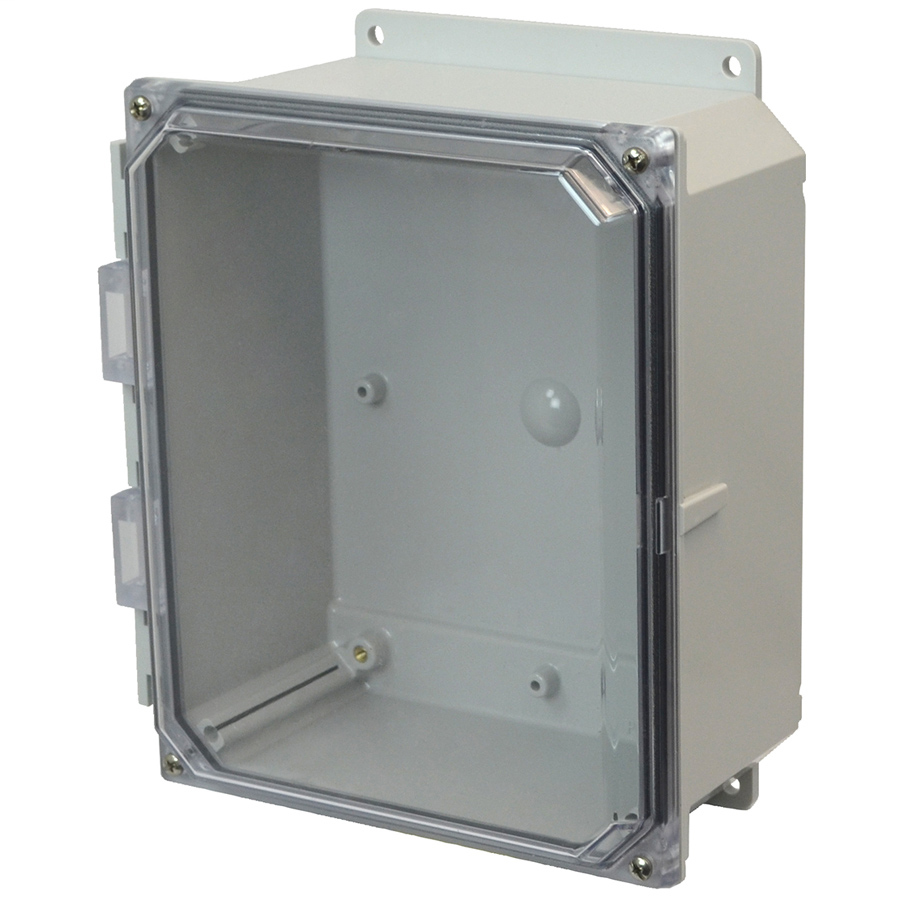

ALLIED AMP1084CCF 10x8x4 PC ENCL CL

Features

Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel. Rigid design with back panel inserts plus nonmetallic mounting brackets and a gasket system encased in a continuous channel on the cover.

Specifications

• Cover Type: Lift-Off 4-Screw Clear Cover
• Brand: POLYLINE
• Catalog #: AMP1084CCF
• Height: 9.93 in.
• Width: 8.15 in.
• Depth: 3.94 in.
• Usable Depth: 4.06 in.
• Volume: 393 cu. in.
• Carton Quantity: 1
• Carton Weight: 3 lb.
• UPC: 085339993155
• UNSPSC: 39121324
• Patents: U.S. Patent No. 7,572,975
• Country of Origin: United States of America
• Color: RAL 7035 - Gray with clear cover
• Material: Polycarbonate box and clear polycarbonate cover
• Mounting: Nonmetal flange fastened to back side brass insert
• Enclosure Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit

Additional Materials

• 316 stainless steel external hardware (hinges, latches and fasteners)
• Polycarbonate mounting brackets
• Plated carbon steel internal hardware
• Brass inserts
• Polyurethane (FIP) Formed-In-Place gasket system

Application

Enclose and protect electrial and electronic controls, instruments or components for indoor and outdoor applications. Especially well suited for extreme temperature and corrosive environments.

Standards

UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 6P, 12 and 13; File No. E120175

CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 6P, 12 and 13; File No. 89590

Complies with:

• EN / IEC 60204-1 and 60529 Type IP66 and units rated 6P are IP68 (submersible up to 24 hours at a depth of 6 feet/1.8 meters)
• RoHS directive
