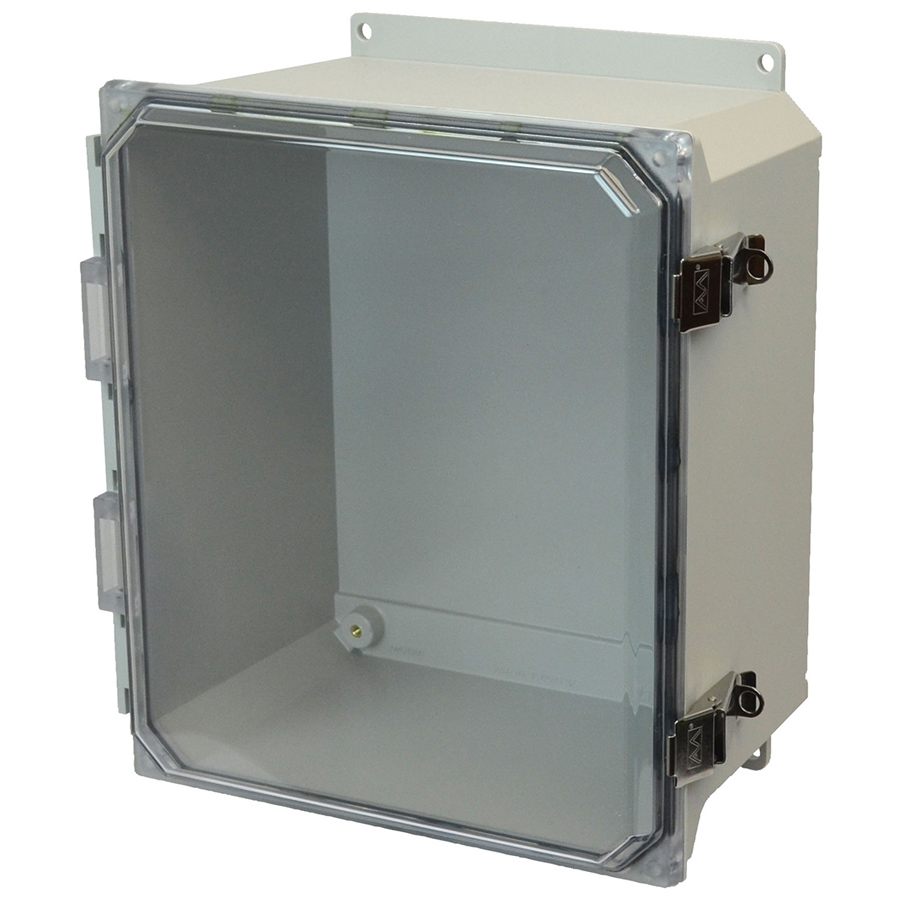

ALLIED AMU1206CCLF 12X10X6 UL ENCL
$166.62/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allied Molded Products
Mfg Catalog # AMU1206CCLF
North Coast Part # 1343563

Features

Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel. Rigid design with back panel inserts plus nonmetallic mounting brackets and a gasket system encased in a continuous channel on the cover.

Specifications

  • Cover Type: Metal Snap Latch Hinged Clear Cover
  • Brand: ULTRALINE
  • Catalog #: AMU1206CCLF
  • Height: 12.05 in.
  • Width: 10.27 in.
  • Depth: 6 in.
  • Usable Depth: 6.12 in.
  • Volume: 867 cu. in.
  • Carton Quantity: 1
  • Carton Weight: 6 lb.
  • UPC: 085339959465
  • UNSPSC: 39121324
  • Patents: U.S. Patent No. 7,572,975
  • Country of Origin: United States of America
  • Color: RAL 7035 - Gray with clear cover
  • Material: ULTRAGUARDĀ® Fiberglass reinforced polyester - compression molded SMC box and clear polycarbonate cover
  • Mounting: Nonmetal flange fastened to back side brass insert
  • Enclosure Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit

Additional Materials

  • 316 stainless steel external hardware (hinges, latches and fasteners)
  • Polycarbonate mounting brackets
  • Plated carbon steel internal hardware
  • Brass inserts
  • Polyurethane (FIP) Formed-In-Place gasket system

Application

Enclose and protect electrial and electronic controls, instruments or components for indoor and outdoor applications. Especially well suited for extreme temperature and corrosive environments.

Standards

UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175

CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590

Complies with:

  • EN / IEC 60204-1 and 60529 Type IP66
  • RoHS directive

Related Products & Accessories

  • PLA120
  • AMU1206LF
  • PL120
  • AMU1206CCTF
  • AMHS075
  • PG120
  • AMP1206CCLF
  • AM1206L
  • AMPOLEMNT10
  • PF120
  • HFPU120

Overview

UPC 08533995946
GTiN 00085339959465
Width 10.27 in
Size A=12.05", B=10.27", C=6.13" plus .87" raised cover, usable depth=6.11"
Color Gray
Type NEMA 4X Type Nonmetallic Enclosure
Insulation Type Nonconductive Nonmetallic
Material ULTRAGUARD - Fiberglass Reinforced Polyester - Thermoset
Applications Industrial control panels intended for general industrial use, operating from a voltage of 600 volts or less
Mounting Type Nonmetal Flange Fastened To Back Side Brass Insert
Depth 6 in
Height 12.05 in
Family Brand Name Allied Moulded
Construction Compression Molded Box With Injection Molded Cover
Carton Qty 1
Sub Brand ULTRALINE
