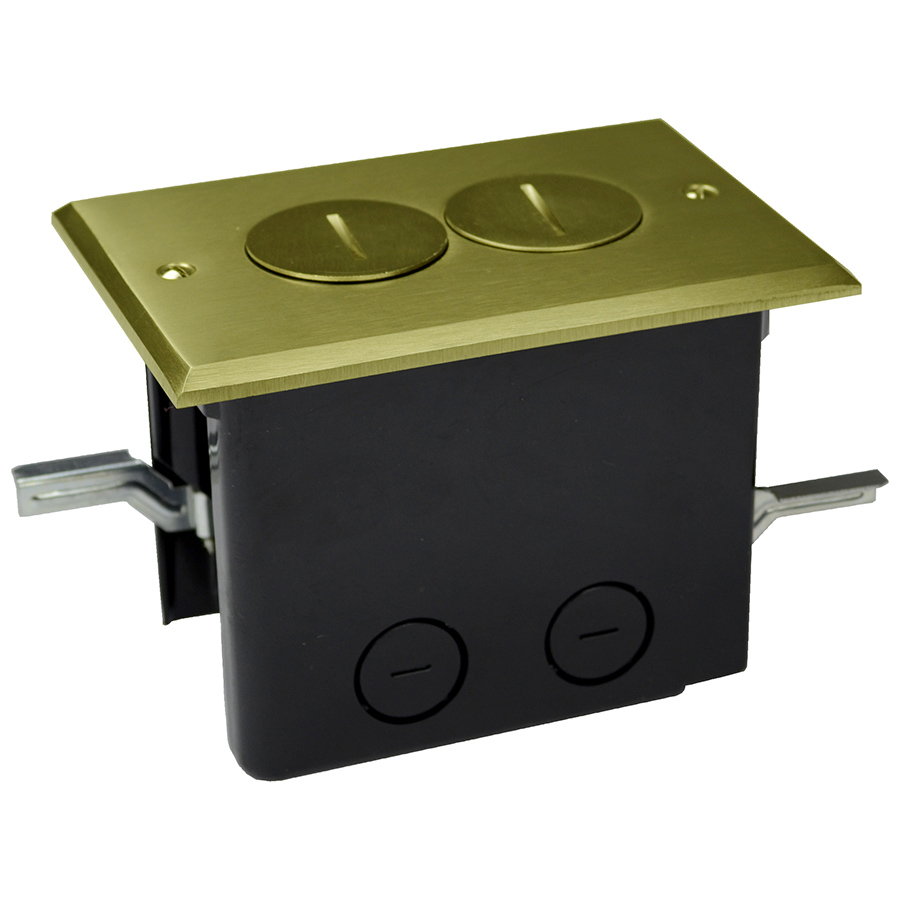

Allied Moulded Products FB-2 Thermoplastic Floor Box 25 In Rectangular Brass Cover Duplex Device
$5,810.37/c (100 ea)
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allied Molded Products
Mfg Catalog # FB-2
North Coast Part # 825293

Features

Designed for use in wood floor construction and can be installed with multiple floor substrate materials, meets scrub-water exclusion test, tamper resistant receptacle, simple exterior shape for easy cut-in application

Specifications

  • Catalog #: FB-2
  • Height: 4.31 in.
  • Width: 2.50 in.
  • Depth: 3.50 in.
  • Volume: 24.5 cu. in.
  • Carton Quantity: 6
  • Carton Weight: 9 lb.
  • UPC: 085339941248
  • UNSPSC: 39121307
  • Patents: U.S. Patent No. 6,365,831 B1
  • Country of Origin: China
  • Color: Black
  • Material: Polycarbonate box and brass cover
  • Mounting: Metal wing brackets/nonmetal flange floor or ceiling compression

Additional Materials

  • Closed cell rubber gasket
  • Galvanized steel dust plate with plated carbon steel fasteners
  • Nitrile O-ring
  • NonMetallic pop-in cable clamp
  • Plated carbon steel fasteners

Application

Floor box assembly for residential wood floor cut-in application for use with nonMetallic sheathed cable.  Used in areas of the home with large floor space openings

Standards

ANSI / UL514C: File No. QCMZ.E30594

FLOOR BOX 714L

Related Products & Accessories

  • FB-2DB
  • FB-2CVR
  • FB-1
  • FB-BRPLG
  • FB-2N

Overview

UPC 08533994124
GTiN 00085339941248
Width 2-1/2 in
Size Box - D=3.5", W=2.498", H=4.312" Cover - D=.217", W=3.5", H=5.125"
Color Black
Type Rectangular Floor Box Assembly With A Brass Duplex Device Cover
Material Brass,Polycarbonate,Galvanized Steel Dust Plate,Rubber,Copper,Nonmetallic
Applications Floor box assembly for residential wood floor cut-in application for use with nonmetallic sheathed cable. Used in areas of the home with large floor space openings where additional electric outlets are required by National Electrical Code to minimize long extension cord runs.
Mounting Type Metal Wing Brackets/nonmetal Flange Floor Or Ceiling Compression
Depth 3-1/2 in
Height 4.31 in
Standard UL 514 C
Family Brand Name Allied Moulded
Construction Cast Cover,Injection Molded Box
Carton Qty 6
Cover Type Grounded
Cable Entry Two Molded-in Speed Klamps And Four 1/2" Knockouts
Cover Material Metal
Box Type Non-Conductive,Non-Metallic
CA Prop65 Warning This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
