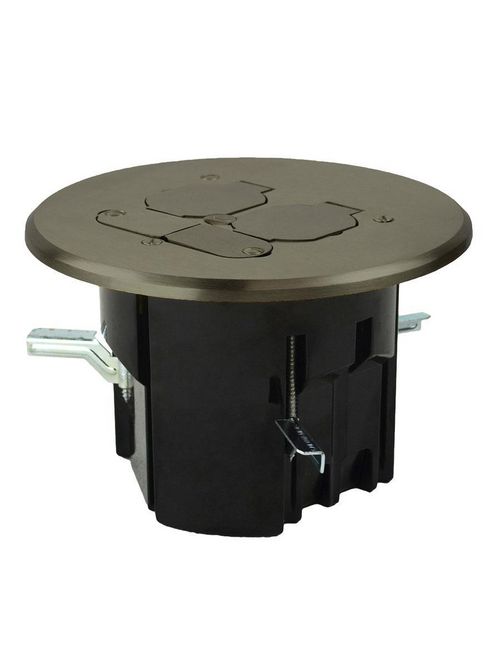

Allied Moulded Products FB-8N 3.94 x 3.43 Inch 19.5 In? Round Floor Box
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$12,498.58/c (100 ea)
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allied Molded Products
Mfg Catalog # FB-8N
North Coast Part # 1349727

Features

Designed for use in wood floor construction and can be installed with multiple floor substrate materials, meets scrub-water exclusion test, one tamper resistant receptacle, provision for adding 2 low voltage keystone plugins, and a simple exterior shape for easy cut-in application

Specifications

  • Catalog #: FB-8N
  • Width: 3.94 in.
  • Depth: 3.43 in.
  • Volume: 19.5 cu. in.
  • Carton Quantity: 6
  • Carton Weight: 11 lb.
  • UPC: 085339972402
  • UNSPSC: 39121307
  • Patents: U.S. Patent No. 6,365,831 B1
  • Country of Origin: China
  • Color: Black
  • Material: Polycarbonate box and nickel plated brass cover
  • Mounting: Metal wing brackets/nonmetal flange floor or ceiling compression

Additional Materials

  • Closed cell rubber gasket
  • Galvanized steel dust plate with plated carbon steel fasteners
  • Nonmetallic pop-in cable clamp
  • Plated carbon steel fasteners

Application

Floor box assembly for residential wood floor cut-in application for use with nonmetallic sheathed cable.  Used in areas of the home with large floor space openings where additional electric outlets are required by National Electrical Code to minimize long extension cord runs.

Standards

ANSI / UL514C: File No. QCMZ.E30594

FLOOR BOX 714L

Related Products & Accessories

  • FB-NPLGLV
  • FB-8
  • FB-8NCVR
  • FB-4N
  • FB-CAK
  • FB-8DB

Overview

UPC 08533997240
Item Long Description 19.5 Cu. In. Round flip lid floor box assembly with a nickel plated duplex device and LV cover - designed for use in wood floor construction and can be installed with multiple floor substrate materials, meets scrub-water exclusion test, tamper resistant receptacle, simple exterior shape for easy cut-in application - Floor box assembly for residential wood floor cut-in application for use with nonmetallic sheathed cable. Used in areas of the home with large floor space openings where additional electric outlets are required by National Electrical Code to minimize long extension cord runs - Polycarbonate box, nickel plated flip lid cover, galvanized steel dust plate, nonmeatallic device with copper terminals and brass ground, closed cell rubber gasket - Size: Box - Dia=3.936", Depth=3.433" Cover - Dia=5.75", Thickness=.237" - Mount with Metal wing brackets/nonmetal flange floor or ceiling compression
GTiN 00085339972402
Width 3.94 in
Size Box - Dia=3.936", Depth=3.433" Cover - Dia=5.75", Thickness=.237"
Color Black
Type Round Floor Box Assembly With A Nickel-plated Duplex Device/low Voltage Flip-lid Cover
Material Copper,Galvanized Steel,Nickel-plated,Nonmetallic,Polycarbonate,Rubber
Applications Floor box assembly for residential wood floor cut-in application for use with nonmetallic sheathed cable. Used in areas of the home with large floor space openings where additional electric outlets are required by National Electrical Code to minimize long extension cord runs.
Mounting Type Metal Wing Brackets/nonmetal Flange Floor Or Ceiling Compression
Depth 3.43 in
Standard UL 514 C
Family Brand Name Allied Moulded
Construction Cast Cover,Injection Molded Box
Cover Type Grounded
Cable Entry Four Molded-in Speed Klamps And Two 1/2" Knockouts
Cover Material Metal
Box Type Non-Conductive,Non-Metallic
CA Prop65 Warning This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
