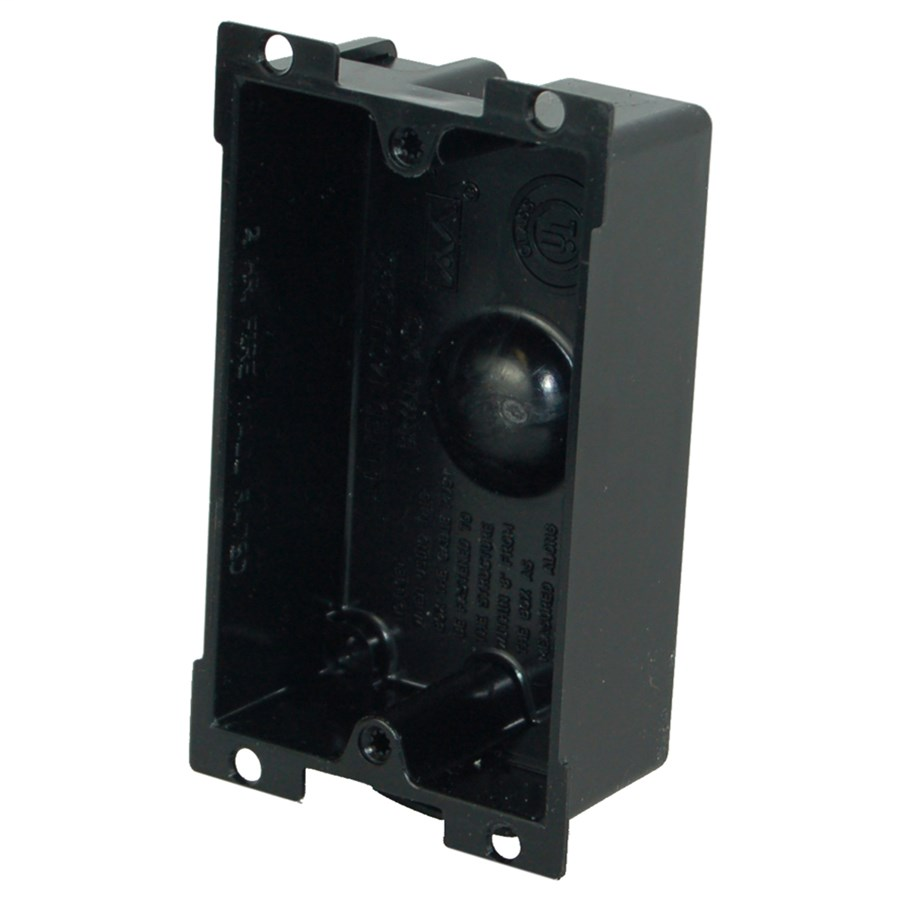

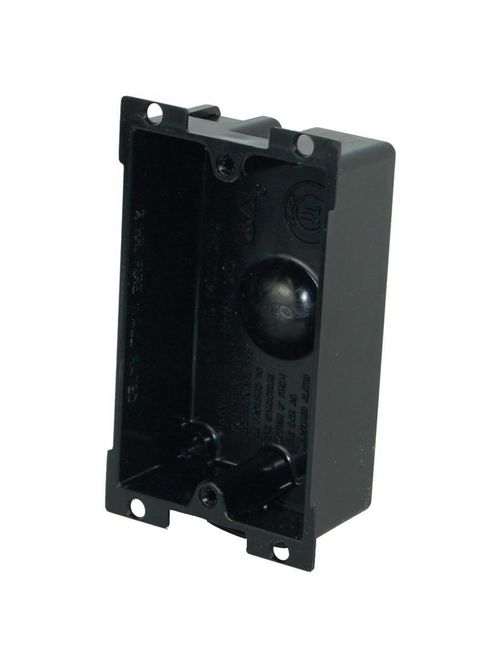

Allied Moulded Products P-108E 1-1/4 x 2-3/8 x 3-5/8 Inch 8 In 1-Gang PVC Switch/Receptacle Outlet Box
$214.97/c (100 ea)
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allied Molded Products
Mfg Catalog # P-108E
North Coast Part # 825287

Features

Molded-in spline device holes, rectangular exterior for easy cut-in

Specifications

  • Brand: flexBOX
  • Catalog #: P-108E
  • Height: 3-3/4 in.
  • Width: 2-5/16 in.
  • Depth: 1-1/4 in.
  • Volume: 8 cu. in.
  • Type of Installation: Old Work
  • Wall Box
  • Number of Gangs: 1
  • Carton Quantity: 24
  • Carton Weight: 3 lb.
  • UPC: 085339249177
  • UNSPSC: 39121308
  • Country of Origin: United States of America
  • Color: Black
  • Material: Polyvinyl Chloride
  • Mounting: Nonmetal ears

Application

Old work residential construction 2 HR fire resistive walls

Standards

ANSI / UL 514C: File No. E30594

Fire Classification

Fire Test of Building Construction Materials

  • ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
  • Note: Products must also be certified to: ANSI / UL 514C

Fire Resistance Classification in Wall Assemblies 2-Hours or less

  • Shall be separated by a horizontal distance of not less than 24 inches

Fire Resistance Classification in Floor-Ceiling Assemblies 2-Hours or Less

  • Distance between boxes must be 4-½ feet from one another
  • Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)

Overview

UPC 08533924917
GTiN 00085339249177
Width 2-5/16 in
Size D=1 1/4", W=2 3/8", H=3 3/4"
Color Black
Type Single Gang Electrical Box For Use With Nonmetallic Sheathed Cable
Insulation Type Nonconductive Nonmetallic
Material PVC - Thermoplastic
Applications Old work residential construction 2 HR fire resistive walls
Mounting Type Nonmetal Ears
Depth 1-1/4 in
Height 3 in
Standard UL 514 C
Family Brand Name Allied Moulded
Construction Injection Molded
Carton Qty 24
Number of Gangs 1 Gang
Cable Entry Speed Klamps
Sub Brand FLEXBOX
