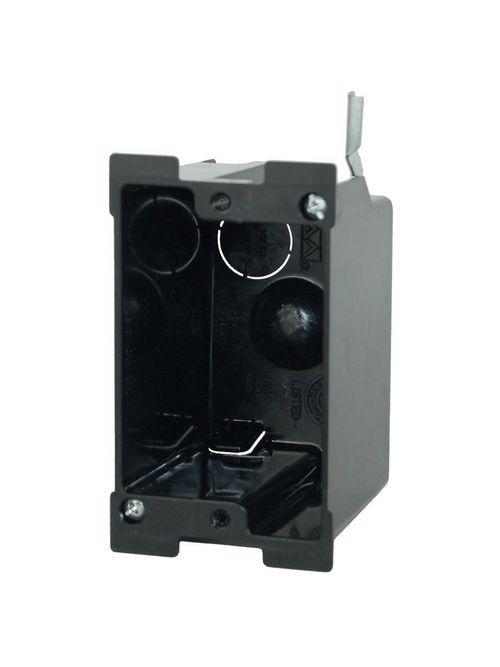

Allied Moulded Products P-116OW 2-5/8 x 2-3/8 x 3-11/16 Inch 1-Gang PVC Switch/Receptacle Outlet Box
Product image thumbnail 0
Product image thumbnail 1
$293.17/c (100 ea)
Already a Customer? Log in to view your pricing
Manufacturer Allied Molded Products
Mfg Catalog # P-116OW
North Coast Part # 667974


Molded-in spline device holes, rectangular exterior for easy cut-in


  • Brand: flexBOX
  • Catalog #: P-116OW
  • Height: 3-11/16 in.
  • Width: 2-5/16 in.
  • Depth: 2-5/8 in.
  • Volume: 16 cu. in.
  • Type of Installation: Old Work
  • Wall Box
  • Number of Gangs: 1
  • Carton Quantity: 48
  • Carton Weight: 10 lb.
  • UPC: 085339249153
  • UNSPSC: 39121308
  • Patents: U.S. Patent No. 6,365,831 B1
  • Country of Origin: United States of America
  • Color: Black
  • Material: Polyvinyl Chloride
  • Mounting: Metal wing brackets/nonmetal ears wall compression
  • Additional Materials: Galvanized steel brackets and plated carbon steel fasteners


Old work residential construction 2 HR fire resistive walls


ANSI / UL 514C: File No. E30594

Fire Classification

Fire Test of Building Construction Materials

  • ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
  • Note: Products must also be certified to: ANSI / UL 514C

Fire Resistance Classification in Wall Assemblies 2-Hours or less

  • Shall be separated by a horizontal distance of not less than 24 inches

Fire Resistance Classification in Floor-Ceiling Assemblies 2-Hours or Less

  • Distance between boxes must be 4-½ feet from one another
  • Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)


UPC 08533924915
GTiN 00085339249153
Width 2-5/16 in
Size D=2 5/8", W=2 3/8", H=3 11/16"
Color Black
Type Single Gang Electrical Box For Use With Nonmetallic Sheathed Cable
Insulation Type Nonconductive Nonmetallic
Material PVC - Thermoplastic
Applications Old work residential construction 2 HR fire resistive walls
Mounting Type Metal Wing Brackets/nonmetal Ears Wall Compression
Depth 2-5/8 in
Height 3 in
Standard UL 514 C
Family Brand Name Allied Moulded
Construction Injection Molded
Carton Qty 48
Number of Gangs 1 Gang
Cable Entry Knockouts,Speed Klamps
