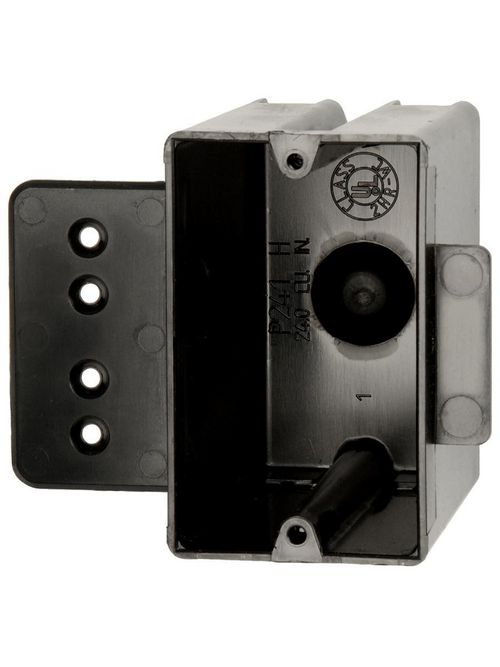

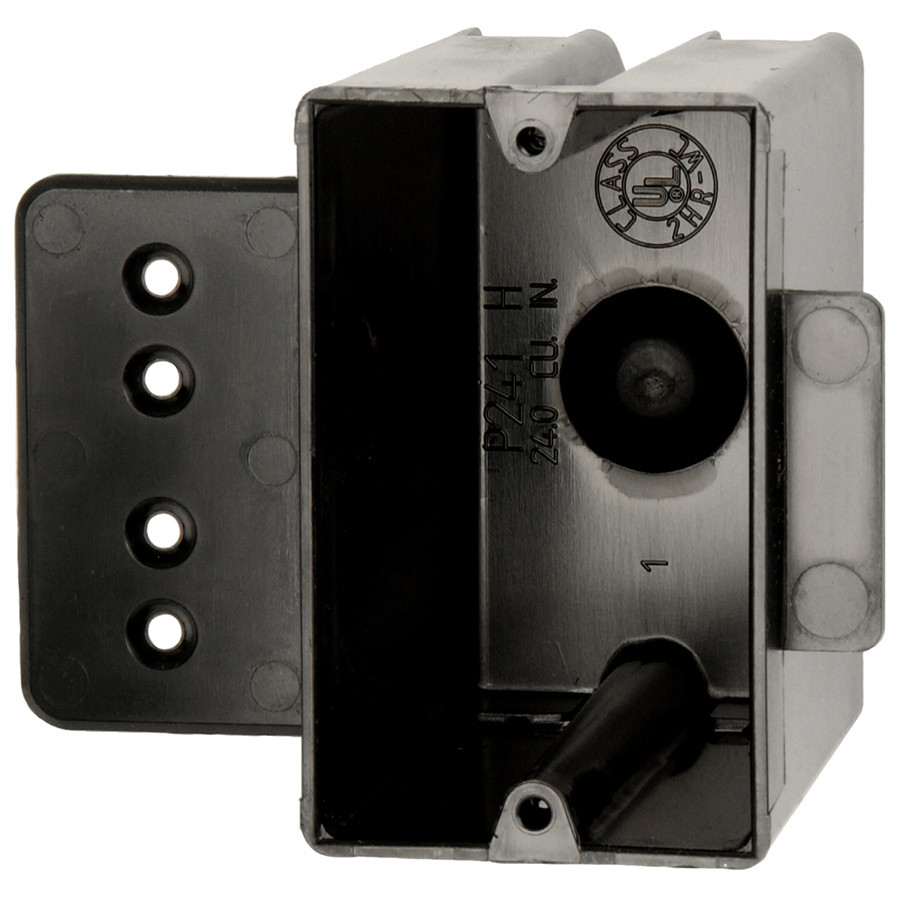

Allied Moulded Products P-241H 3-9/16 x 2-1/4 x 3-3/4 Inch 24 In 1-Gang PVC Switch/Receptacle Outlet Box
Product image thumbnail 0
Product image thumbnail 1
$190.03/c (100 ea)
In Stock | 95 available at 6 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allied Molded Products
Mfg Catalog # P-241H
North Coast Part # 155907

Features

Molded-in splined device holes, leveling ribs

Specifications

  • Brand: flexBOX
  • Catalog #: P-241H
  • Height: 3-3/4 in.
  • Width: 2-5/16 in.
  • Depth: 3-9/16 in.
  • Volume: 24 cu. in.
  • Type of Installation: New Work
  • Wall Box
  • Number of Gangs: 1
  • Carton Quantity: 50
  • Carton Weight: 12 lb.
  • UPC: 085339249078
  • UNSPSC: 39121308
  • Country of Origin: United States of America
  • Color: Black
  • Material: Polyvinyl Chloride
  • Mounting: Stud face mount molded-in hanger bracket with 1/2" offset and opposite side drywall tabs
  • Additional Materials: Galvanized snap in bracket

Application

New work residential construction 2 HR fire resistive walls & ceilings

Standards

ANSI / UL 514C: File No. E30594

Fire Classification

Fire Test of Building Construction Materials

  • ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
  • Note: Products must also be certified to: ANSI / UL 514C

Fire Resistance Classification in Wall Assemblies 2-Hours or less

  • Shall be separated by a horizontal distance of not less than 24 inches

Fire Resistance Classification in Floor-Ceiling Assemblies 2-Hours or Less

  • Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)
  • Distance between boxes must be 4-½ feet from one another

Overview

UPC 08533924907
GTiN 00085339249078
Width 2-5/16 in
Size D=3 9/16", W=2 5/16", H=3 3/4"
Color Black
Type Single Gang Electrical Box For Use With Nonmetallic Sheathed Cable
Insulation Type Non-Conductive,Non-Metallic
Material PVC - Thermoplastic
Applications New work residential construction 2 HR fire resistive walls & ceilings
Mounting Type Stud Face Mount Molded-in Hanger Bracket With 1/2" Offset And Opposite Side Drywall Tabs
Depth 3 in
Height 3 in
Family Brand Name Allied Moulded
Construction Injection Molded
Carton Qty 50
Number of Gangs 1 Gang
Cable Entry Four "no Tools" Cable Knockouts
Sub Brand FLEXBOX
