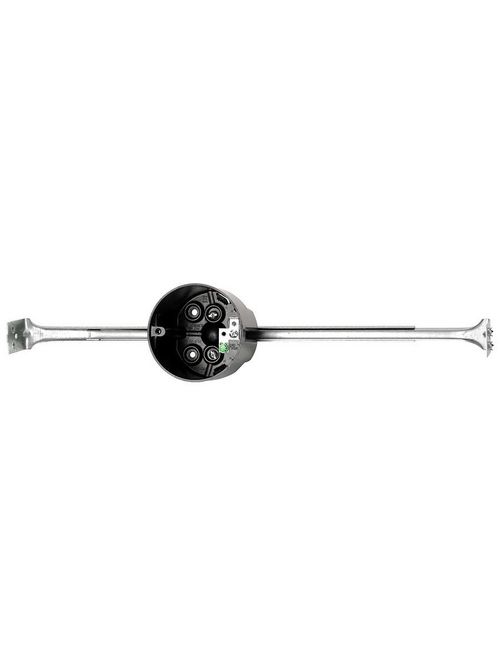

Allied Moulded Products PC213-16 2-7/8 x 3-1/2 x 16 Inch 20.5 In Fiberglass Round Ceiling Fixture Outlet Box
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$846.74/c (100 ea)
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allied Molded Products
Mfg Catalog # PC213-16
North Coast Part # 606965

Features

Machine tapped fixture holes

Specifications

  • Brand: flexBOX
  • Catalog #: PC213-16
  • Width: 3-1/2 in.
  • Depth: 2-13/16 in.
  • Volume: 21 cu. in.
  • Type of Installation: New Work
  • Round Ceiling Box
  • Carton Quantity: 24
  • Carton Weight: 17 lb.
  • UPC: 085339983040
  • UNSPSC: 39121316
  • Patents: U.S. Patent No. 6,365,831 B1
  • Country of Origin: United States of America
  • Color: Black
  • Material: Polycarbonate
  • Mounting: Adjustable bar hanger - max 16" on center Joist application
  • Additional Materials: Galvanized steel brackets and plated carbon steel fasteners
  • Support Rating: 50 lbs fixture support

Application

New work residential construction 2 HR fire resistive walls and ceilings (50 lbs. fixture support)

Standards

ANSI / UL 514C: File No. E30594

Fire Classification

Fire Test of Building Construction Materials

  • ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
  • Note: Products must also be certified to: ANSI / UL 514C

Fire Resistance Classification in Floor-Ceiling Assemblies 2-Hours or Less

  • Distance between boxes in adjacent cavities may be reduced to 5 ½ inches
  • Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)

Related Products & Accessories

  • PC234-16
  • PC213-16G
  • PC213-N

Overview

UPC 08533998304
Item Long Description 21.0 Cu. In. 3.5" dia. round fixture support box for use with nonmetallic sheathed cable - Machine tapped fixture holes - New work residential construction 2 HR fire resistive walls and ceilings (50 lbs. fixture support) - Polycarbonate - thermoplastic box - Size: Depth=2 13/16", Dia=3 1/2" - Mount with Adjustable bar hanger - max 16" on center Joist application
GTiN 00085339983040
Width 3 in
Size Depth=2 13/16", Dia=3 1/2"
Color Black
Type 3.5" Dia. Round Fixture Support Box For Use With Nonmetallic Sheathed Cable
Insulation Type Non-Conductive,Non-Metallic
Material Polycarbonate - Thermoplastic
Applications New work residential construction 2 HR fire resistive walls and ceilings (50 lbs. fixture support)
Mounting Type Adjustable Bar Hanger - Max 16" On Center Joist Application
Depth 2-13/16 in
Standard UL 514 C
Family Brand Name Allied Moulded
Construction Injection Molded
Cable Entry Four Molded-in Speed Klamps
Sub Brand FLEXBOX
