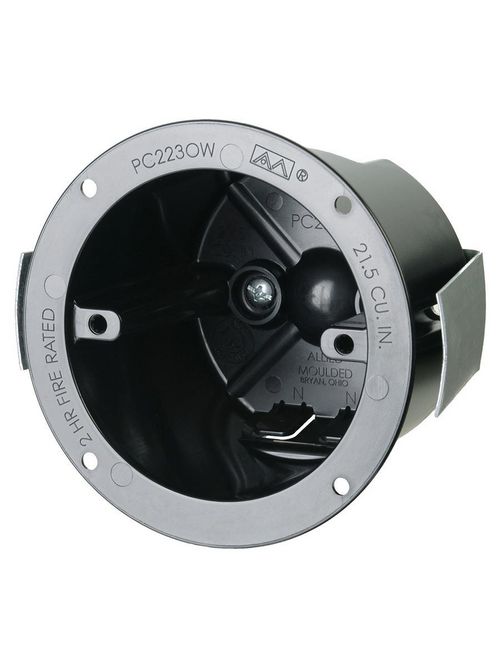

Allied Moulded Products PC223OW 2-13/16 x 3-1/2 Inch 22 In Polycarbonate Round Fixture Outlet Box
Product image thumbnail 0
Product image thumbnail 1
$445.64/c (100 ea)
In Stock | 82 available at 4 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allied Molded Products
Mfg Catalog # PC223OW
North Coast Part # 339978

Features

Machine tapped fixture holes, round exterior for easy cut-in

Specifications

  • Brand: flexBOX
  • Catalog #: PC223OW
  • Width: 3-1/2 in.
  • Depth: 2-13/16 in.
  • Volume: 21.5 cu. in.
  • Type of Installation: Old Work
  • Round Ceiling Box
  • Carton Quantity: 24
  • Carton Weight: 9 lb.
  • UPC: 085339980285
  • UNSPSC: 39121316
  • Patents: U.S. Patent No. 6,365,831 B1
  • Country of Origin: United States of America
  • Color: Black
  • Material: Polycarbonate
  • Mounting: Snap bracket/box flange wall compression
  • Additional Materials: Galvanized steel brackets and plated carbon steel fasteners
  • Support Rating: Meets NEC for wall applications

Application

Old work residential construction 2 HR fire resistive walls. Meets requirements of Articles 314.27 (A1) and 314.27 (D) of the 2014 NEC. Suitable for use in mounting utilization equipment (wall sconce lights, alarm system strobe/speaker, smoke detector and low-profile LED lighting) weighing six pounds or less.

Standards

ANSI / UL 514C: File No. E30594

Fire Classification

Fire Test of Building Construction Materials

  • ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
  • Note: Products must also be certified to: ANSI / UL 514C

Fire Resistance Classification in Floor-Ceiling Assemblies 2-Hours or Less

  • Distance between boxes in adjacent cavities may be reduced to 5 ½ inches
  • Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)

Related Products & Accessories

  • PC223OWG

Overview

UPC 08533998028
GTiN 00085339980285
Width 3 in
Size Depth=2 13/16", Dia=3 1/2"
Color Black
Type 3.5" Dia. Round Fixture Support Box For Use With Nonmetallic Sheathed Cable
Insulation Type Non-Conductive,Non-Metallic
Material Polycarbonate - Thermoplastic Box With Galvanized Snap Bracket
Applications Old work residential construction 2HR fire resistive walls. Meets requirements of Articles 314.27 (A1) and 314.27 (D) of the 2014 NEC. Suitable for use in mounting utilization equipment (wall sconce lights, alarm system strobe/speaker, smoke detector and low-profile LED lighting) weiging six pounds or less.
Mounting Type Snap Bracket/box Flange Wall Compression
Depth 2-13/16 in
Standard UL 514 C
Family Brand Name Allied Moulded
Construction Injection Molded
Carton Qty 24
Cable Entry Four Molded-in Speed Klamps
Sub Brand FLEXBOX
