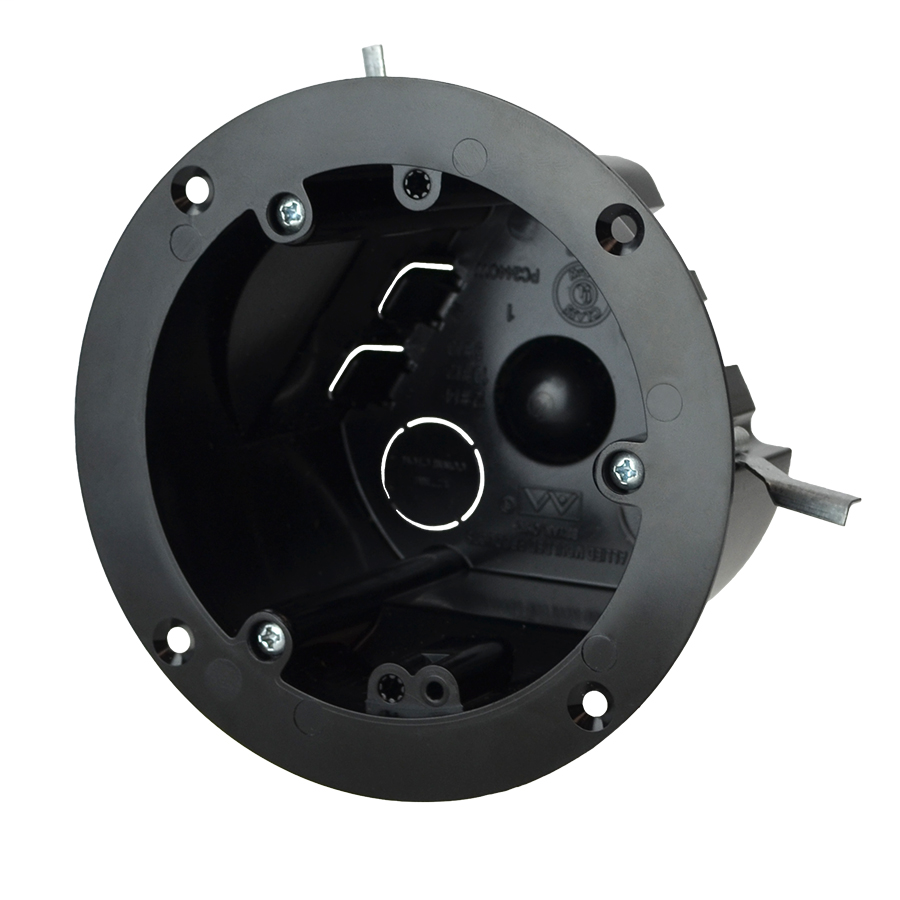

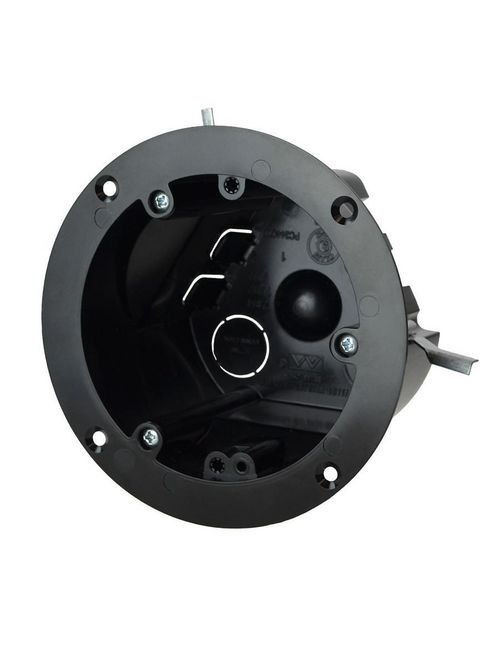

Allied Moulded Products PC244OW 24.5 cubic inch 4 Inch Diameter Old Work Wing Bracket Fixture Support Box
$400.01/c (100 ea)
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allied Molded Products
Mfg Catalog # PC244OW
North Coast Part # 1160201

Features

Machine tapped fixture holes, round exterior for easy cut-in

Specifications

  • Brand: flexBOX
  • Catalog #: PC244OW
  • Width: 4 in.
  • Depth: 3 in.
  • Volume: 24.5 cu. in.
  • Type of Installation: Old Work
  • Round Ceiling Box
  • Carton Quantity: 24
  • Carton Weight: 7 lb.
  • UPC: 085339983118
  • UNSPSC: 39121316
  • Patents: U.S. Patent No. 6,365,831 B1
  • Country of Origin: United States of America
  • Color: Black
  • Material: Polycarbonate
  • Mounting: Metal wing brackets/nonmetal ears wall compression
  • Additional Materials: Galvanized steel brackets and plated carbon steel fasteners
  • Support Rating: Meets NEC for wall applications

Application

Old work residential construction 2 HR fire resistive walls. Meets requirements of Articles 314.27 (A1) and 314.27 (D) of the 2014 NEC. Suitable for use in mounting utilization equipment (wall sconce lights, alarm system strobe/speaker, smoke detector and low-profile LED lighting) weighing six pounds or less.

Standards

ANSI / UL 514C: File No. E30594

Fire Classification

Fire Test of Building Construction Materials

  • ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
  • Note: Products must also be certified to: ANSI / UL 514C

Fire Resistance Classification in Floor-Ceiling Assemblies 2-Hours or Less

  • Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)
  • Distance between boxes in adjacent cavities may be reduced to 5 ½ inches

Related Products & Accessories

  • 9305-SK
  • 9338-ESK
  • SB-CB
  • PC244OWG
  • PC223OW

Overview

UPC 08533998311
GTiN 00085339983118
Width 4 in
Size Depth=3", Dia=4"
Color Black
Type 4" Dia. Round Wall Box For Use With Nonmetallic Sheathed Cable
Insulation Type Nonconductive Nonmetallic
Material Polycarbonate - Thermoplastic
Applications Old work residential construction 2HR fire resistive walls. Meets requirements of Articles 314.27 (A1) and 314.27 (D) of the 2014 NEC. Suitable for use in mounting utilization equipment (wall sconce lights, alarm system strobe/speaker, smoke detector and low-profile LED lighting) weiging six pounds or less.
Mounting Type Wing Bracket/box Flange Wall Compression
Depth 3 in
Family Brand Name Allied Moulded
Construction Injection Molded
Carton Qty 24
Cable Entry Four Molded-in Speed Klamps
Sub Brand FLEXBOX
