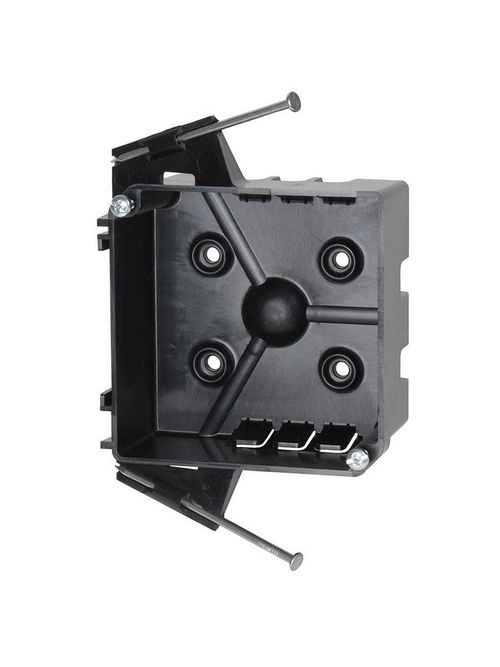

Allied Moulded Products PJ-20N 1-5/8 x 4 Inch 20.5 In? PVC Square Wall Junction Box
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$599.87/c (100 ea)
In Stock | 44 available at 2 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allied Molded Products
Mfg Catalog # PJ-20N
North Coast Part # 670370

Features

Machine tapped cover screw holes, cover screws included

Specifications

  • Brand: flexBOX
  • Catalog #: PJ-20N
  • Height: 4 in.
  • Width: 4 in.
  • Depth: 1-5/8 in.
  • Volume: 20.5 cu. in.
  • Type of Installation: New Work
  • Wall Box
  • Carton Quantity: 48
  • Carton Weight: 11 lb.
  • UPC: 085339990017
  • UNSPSC: 39121332
  • Patents: U.S. Patent No. 6,365,831 B1
  • Country of Origin: United States of America
  • Color: Black
  • Material: Polyvinyl Chloride
  • Mounting: Angled mid-nails

Additional Materials

  • Carbon steel fasteners
  • Plated carbon steel fasteners

Application

In the wall junction box with optional single and two gang plaster ring covers for junction box capacity and device applications - 2 HR fire resistive walls

Standards

ANSI / UL 514C: File No. E30594

Fire Classification

Fire Test of Building Construction Materials

  • ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
  • Note: Products must also be certified to: ANSI / UL 514C

Fire Resistance Classification in Wall Assemblies 2-Hours or less

  • Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)
  • Shall be separated by a horizontal distance of not less than 24 inches

Overview

UPC 08533999001
Item Long Description 20.5 Cu. In. 4 square inch electrical junction box for use with nonmetallic sheathed cable - Machine tapped cover screw holes, cover screws included - In the wall junction box with optional single and two gang plaster ring covers for junction box capacity and device applications - 2 HR fire resistive walls - PVC - Thermoplastic - Size: D=1 5/8", W=4", H=4" - Mount with Angled mid-nails
GTiN 00085339990017
Width 4 in
Size D=1 5/8", W=4", H=4"
Color Black
Type 4 Square Inch Electrical Junction Box For Use With Nonmetallic Sheathed Cable
Insulation Type Nonconductive Nonmetallic
Material PVC - Thermoplastic
Applications In the wall junction box with optional single and two gang plaster ring covers for junction box capacity and device applications - 2 HR fire resistive walls
Mounting Type Angled Mid-nails
Depth 1-5/8 in
Height 4 in
Standard UL 514 C
Connection Type For Use With 14-2 Through 10-3 Nonmetallic Sheathed Cable With Ground
Family Brand Name Allied Moulded
Construction Injection Molded
TC Connection For use with 14-2 through 10-3 nonmetallic sheathed cable with ground
Cable Entry Speed Klamps
Sub Brand FLEXBOX
