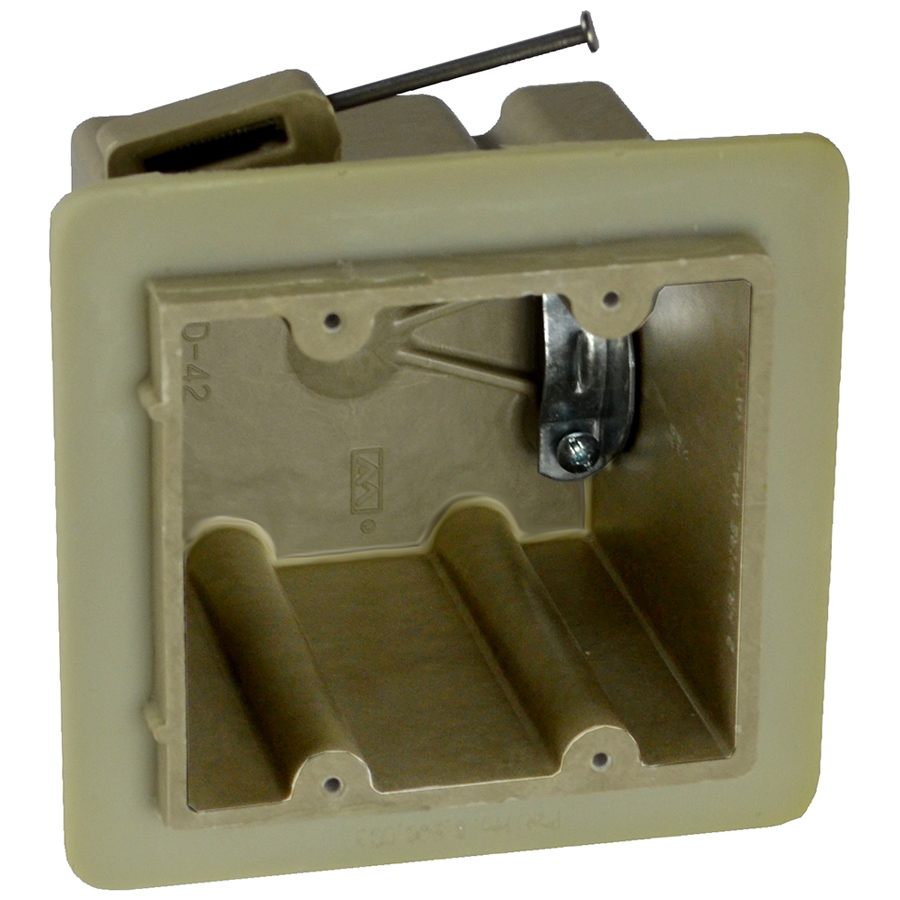

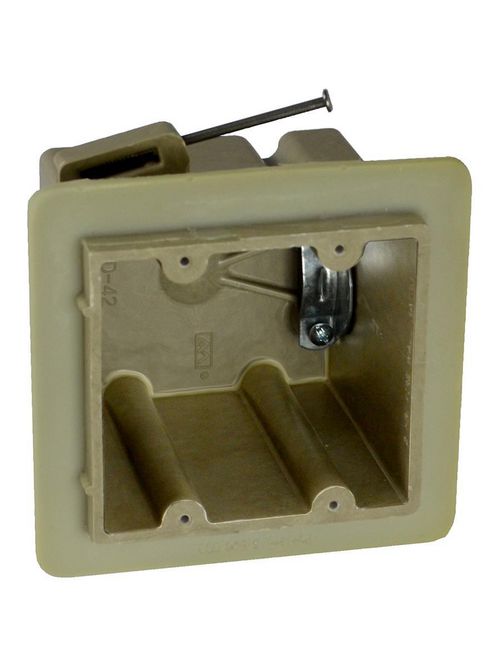

Allied Moulded Products RD-42V 42.0 Inch  Dryer Box with Vapor Seal
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,756.27/c (100 ea)
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allied Molded Products
Mfg Catalog # RD-42V
North Coast Part # 667324

Features

Machine tapped holes for 2-position device , internal metal clamp for easy wire adjustment, offset gauge marks, leveling ribs, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures

Specifications

  • Brand: fiberglassBOX
  • Catalog #: RD-42V
  • Height: 3-3/4 in.
  • Width: 4 in.
  • Depth: 3-13/16 in.
  • Volume: 42 cu. in.
  • Wall Box
  • Carton Quantity: 24
  • Carton Weight: 23 lb.
  • UPC: 085339129066
  • UNSPSC: 39121309
  • Patents: U.S. Patent No. 6,908,003 B2
  • Country of Origin: United States of America
  • Color: Beige/tan
  • Material: Fiberglass reinforced polyester BMC
  • Mounting: Angled mid nails with fetter ring nails

Additional Materials

  • Carbon steel fasteners
  • Plated carbon steel clamp and fasteners
  • Polyurethane flange

Application

New work residential construction 2 HR fire resistive walls - air tight

Standards

ANSI / UL 514C: File No. E30594

NEMA OS 4 - Energy Efficient Air-Sealed Boxes for Electrical Applications

Fire Classification

Fire Test of Building Construction Materials

  • ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
  • Note: Products must also be certified to: ANSI / UL 514C

Fire Resistance Classification in Wall Assemblies 2-Hours or less

  • Shall be separated by a horizontal distance of not less than 3 inches
  • Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)

Overview

UPC 08533912906
Item Long Description 42.0 Cu. In. Range/dryer electrical box for use with nonmetallic sheathed cable - Machine tapped holes for 2-position device , internal metal clamp for easy wire adjustment, offset gauge marks, leveling ribs, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures - New work residential construction 2 HR fire resistive walls - air tight - Fiberglass reinforced polyester - thermoset with polyurethane flange - Size:D=3 5/16", W=4", H=3 3/4" - Mount with Angled mid nails with fetter ring nails
GTiN 00085339129066
Width 4 in
Size D=3 5/16", W=4", H=3 3/4"
Color Beige,Tan
Type Range/dryer Electrical Box For Use With Nonmetallic Sheathed Cable
Insulation Type Non-Conductive,Non-Metallic
Material Fiberglass Reinforced Polyester - Thermoset With Polyurethane
Applications New work residential construction 2 HR fire resistive walls - air tight
Mounting Type Angled Mid Nails With Fetter Ring Nails
Depth 3 in
Height 3 in
Family Brand Name Allied Moulded
Construction Injection Molded
Cable Entry One "no Tools" Knockout With One Metal Wire Clamp Which Accomodates #6 & #8 Wire
Sub Brand FIBERGLASSBOX
