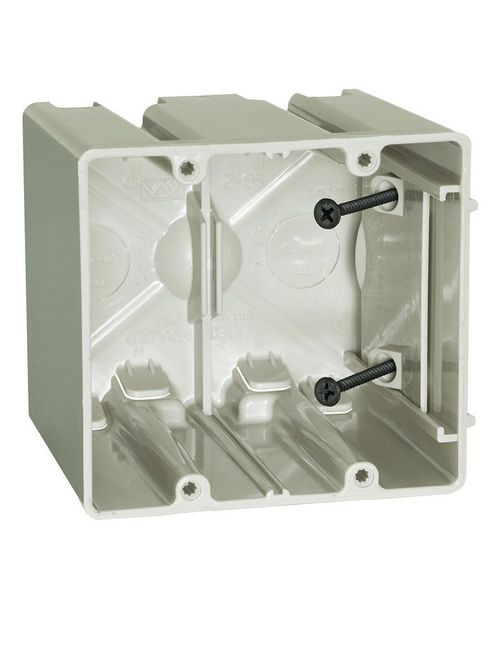

Allied Moulded Products SB-2 42.0 Inch Internal Screws Adjustable Outlet Box

Features

Molded-in splined device holes, adjustable slider plate for additional wall substrate thickness, slot provision for low voltage divider, rectangular exterior for easy cut-in, leveling ribs, offset gauge marks

Specifications

• Brand: SLIDERBOX
• Catalog #: SB-2
• Height: 3-3/4 in.
• Width: 4 in.
• Depth: 3-9/16 in.
• Volume: 42 cu. in.
• Wall Box
• Number of Gangs: Old or New Work
• Carton Quantity: 24
• Carton Weight: 9 lb.
• UPC: 085339945017
• UNSPSC: 39121308
• Patents: U.S. Patent No. 7,855,338
• Country of Origin: U.S. Patent No. 6,365,831 B1
• Color: Beige/tan
• Material: Polycarbonate
• Mounting: Internal screws with adjustable slider plate for substrates 1/2" to 1 3/8"
• Additional Materials: Carbon steel fasteners

Application

New and old work residential construction 2 HR fire resistive walls and ceilings

Standards

ANSI / UL 514C: File No. E30594

Fire Classification

Fire Test of Building Construction Materials

• ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
• Note: Products must also be certified to: ANSI / UL 514C

Fire Resistance Classification in Wall Assemblies 2-Hours or less

• Shall be separated by a horizontal distance of not less than 24 inches
• Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)
