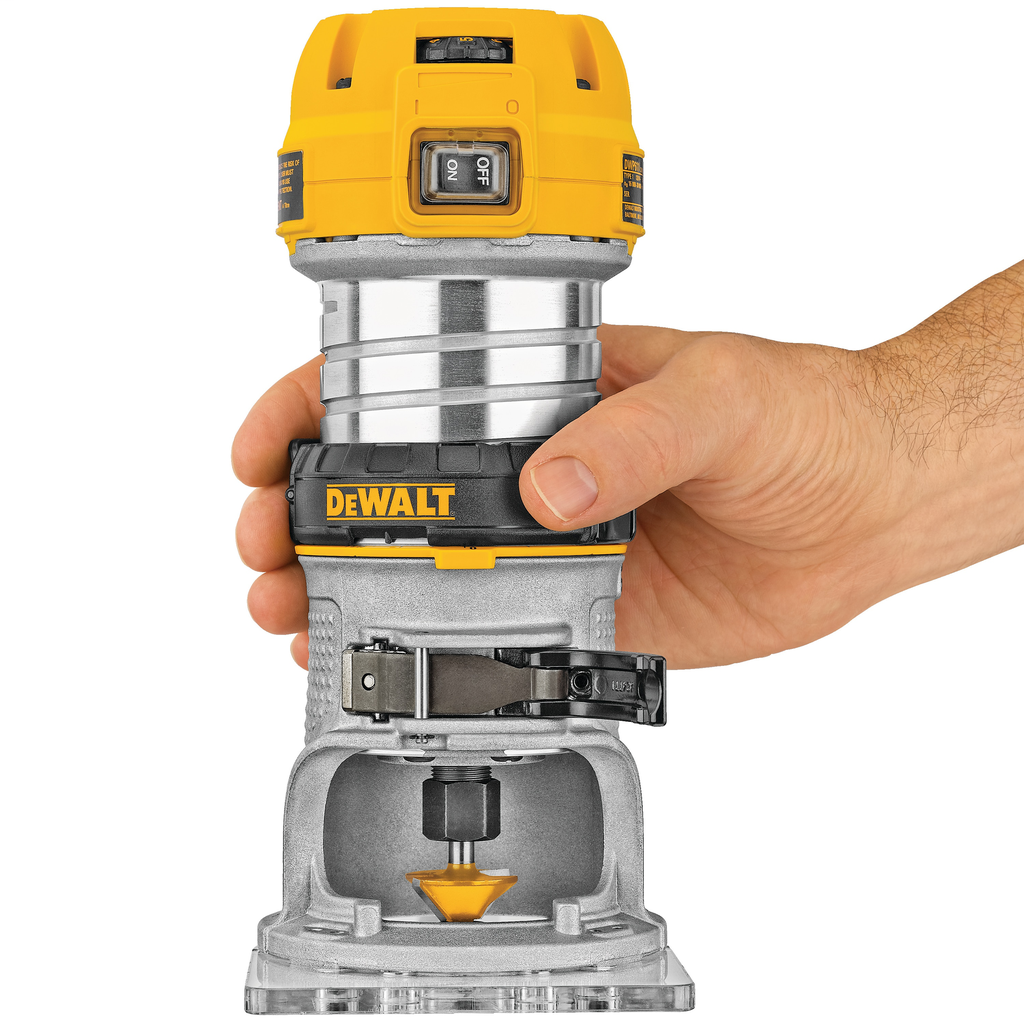

Manufacturer Black & Decker / Dewalt
Mfg Catalog # DWP611
North Coast Part # 1016125


  • Aluminum motor housing and base construction provides long term durability
  • Depth ring and clamping mechanism combine to ensure motor remains locked in position
  • Dual LED's and clear sub-base ensure maximum visibility in operation
  • Large, low-pressure spindle lock button allows for comfortable, single wrench bit changes
  • Adjustment ring enables controlled bit depth changes to within 1/64 in.
  • Soft-starting motor features full-time electronic feedback that maintains motor speed through the cut
  • Multiple shaft-lock detents enable quick and simple bit changes
  • Variable speed control feature enables bit speed to be optimized for changing applications
  • Spring-loaded release tabs allow for quick base removal
  • Allows up to 1.5 in. of depth travel with standard base
  • Extended 8-slot 1/4 in. collet maximizes surface contact with router bit shank for a tighter grip
  • Extended sub-base provides greater work surface contact for improved user control
  • Durable 1.25HP motor delivers the power to meet the toughest applications


  • Wrench
  • Standard Base
  • Motor
  • Instruction Manual


  • Amps: 7.0 Amps
  • Base Dimension: 4 in
  • Collet Diameter: 1/4 in
  • No Load Speed: 16,000-27,000 rpm
  • Peak Horsepower: 1 1/4
  • Plunge Stroke: 1.5 in
  • Power Tool Type: Corded
  • Router Base: Fixed Base
  • Router Type: Compact Router
  • Spindle Lock: 12 position
  • Tool Weight: 4.6 lbs


UPC 88591119182
Family Brand Name DEWALT
GTiN 00885911191821
Weight 4.6 lb
Power Type Corded
