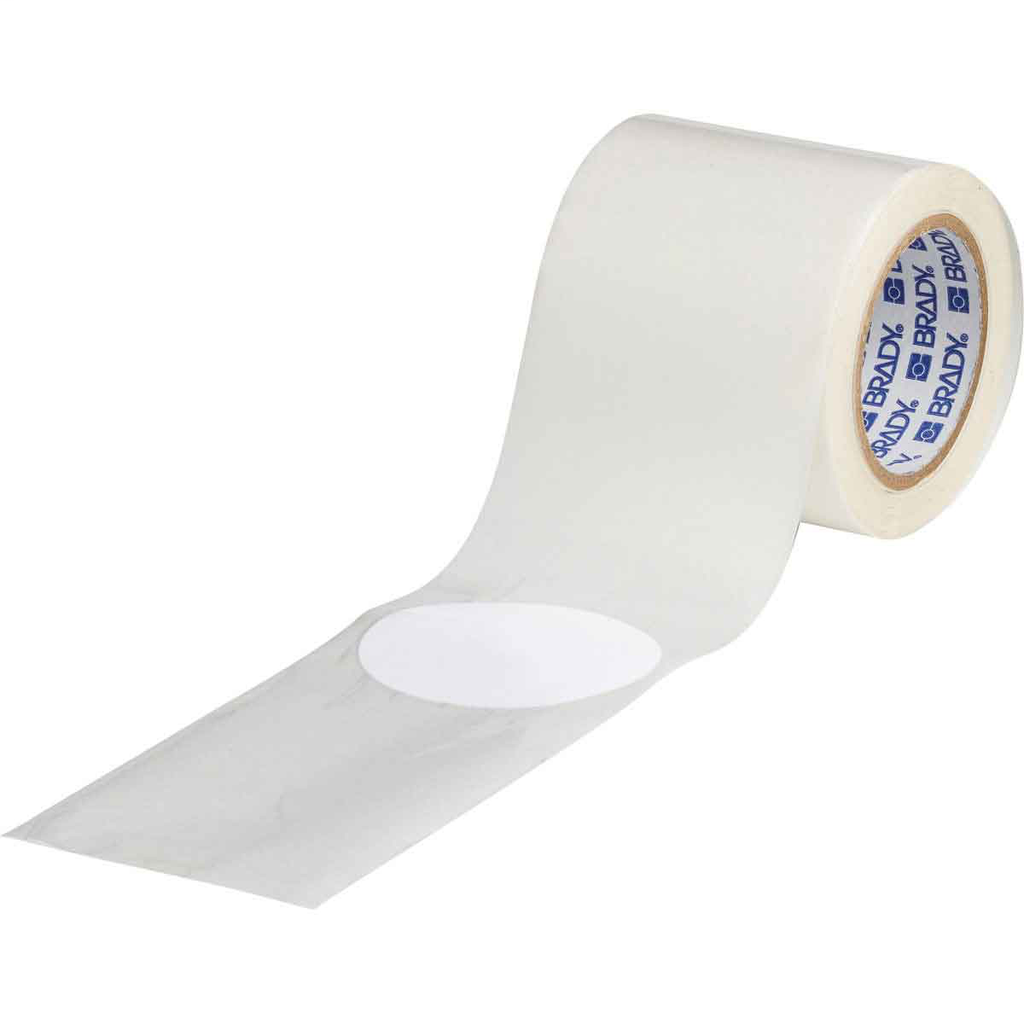

BRADY 104522 3.5" B514 WH FLOOR DOT
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 6 to 8 Days
Already a Customer? Log in to view your pricing
Manufacturer Brady
Mfg Catalog # 104522
North Coast Part # 1340693


  • High-gloss surface shines like new paint and withstands forklift traffic without tearing or lifting
  • Ideal for marking aisles, passageways and storage locations and identifying equipment and egress paths
  • Exceeds safety standards for clean, dry non-slip surfaces per ANSI A 1264.2-2006 and OSHA 1910.38
  • Packaged on a roll and spaced 18" apart on a continuous liner


  • Anti-Slip Factor: Not Anti-Slip
  • Brand Name: Brady®
  • Color: White
  • Compatible Surface Types: General
  • Die-Cut Design: Dot-Shaped
  • Enables Industry Compliance: ANSI A1264.2-2006; ASTM/ANSI F1679; OSHA 29 CFR 1910.22
  • Finish: Gloss
  • Primary Noun, Basic Function: Floor Marking Tape
  • PSPA Photoluminescence Class: Not Rated
  • Quantity per Roll: 55
  • Reflective Type: Non-Reflective
  • Shape: Circle
  • Total Qty per Pack: 55 Piece(s) / Roll
  • Trade Name: ToughStripe®
  • Adhesive (Y/N): Yes
  • Adhesive Type: Permanent Rubber Based
  • Brady Material Number: B-514
  • Material: Polyester with Polyester Overlaminate
  • SAP B-Number: B-514
  • Diameter (in/ft/yd): 3.5 in
  • Diameter (mm/cm/m): 88.90 mm
  • Dimensions: 3.5 in Dia x 100 ft L
  • Dimensions (Metric): 88.90 mm Dia
  • Maximum Service Temperature °C: 54 °C
  • Maximum Service Temperature °F: 130 °F
  • Minimum Application Temperature °C: 5 °C
  • Minimum Application Temperature °F: 41 °F
  • Minimum Service Temperature °C: -18 °C
  • Minimum Service Temperature °F: 0 °F
  • Roll/Tape Length (in/ft/yd): 100 ft
  • Roll/Tape Size (in/ft/yd): 3.5 in Dia x 100 ft L
  • Sign Size-General: 3.5 in Dia
  • Thickness (in/ft/yd): 0.008 in
  • Thickness (mm/cm/m): 0.203 mm

Regulatory Information

  • Contains CA PROP 65 Substance: Yes Contains-Label not req.
  • Contains CA PROP 65 Substance: No
  • Contains Heavy Metal(s): Unavailable
  • DOT Regulated Product: No = not regulated by DOT
  • EU RoHS Compliance: Not Applicable
  • EU RoHS Compliant: No
  • SDS Safety Data Sheet required: No = MSDS/SDS is not required


UPC 75447316300
GTiN 00754473163006
Length 3-1/2 in
Finish Gloss
Width 3-1/2 in
Size 3.5 in x 3.5 in
Color White
Type Spaced Dot
Thickness 0.008 in
Material B-514 Polyester
Temperature Rating 0 To 129 F
Family Brand Name Brady
Max Operating Temperature 130 degrees F
Min Operating Temperature 0 degrees F
CA Prop65 Warning N
Max Temperature 130 degrees F
Min Temperature 0 degrees F
Roll Length 100 ft
