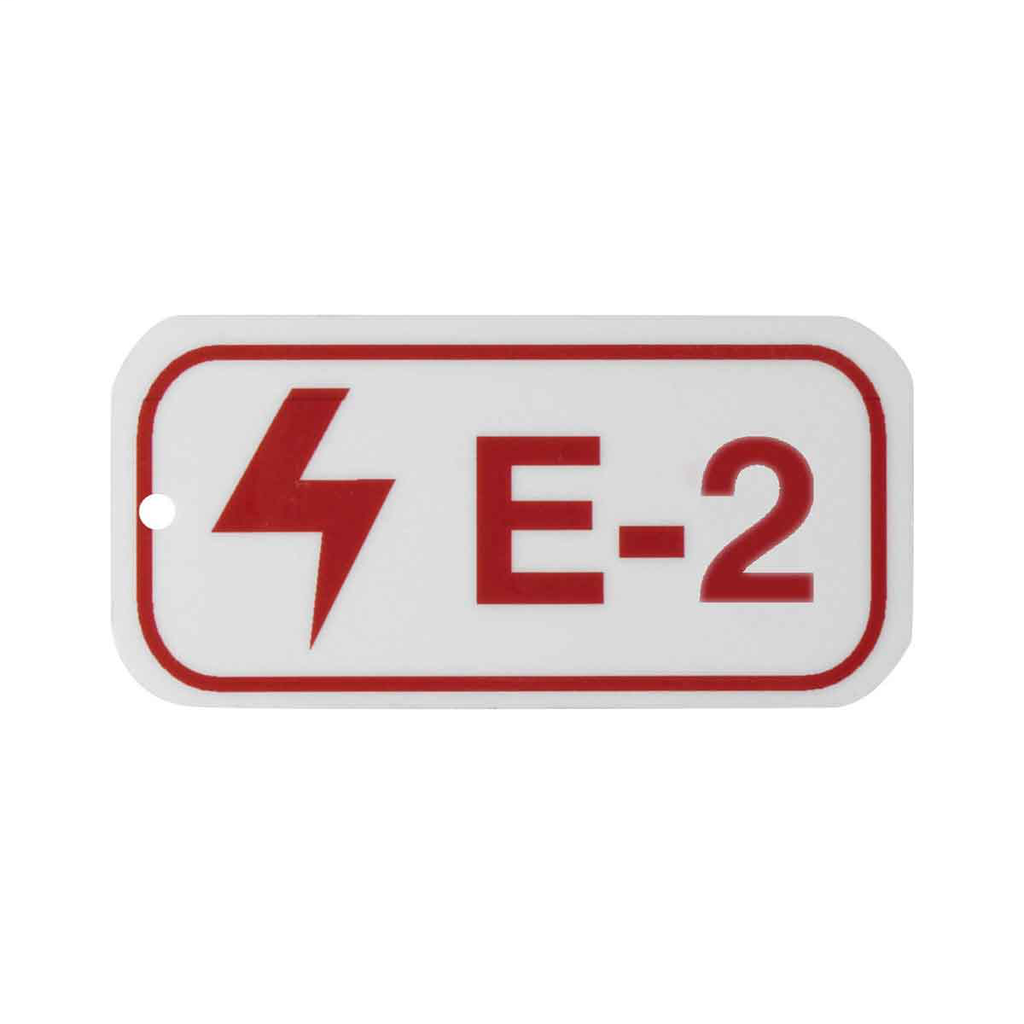

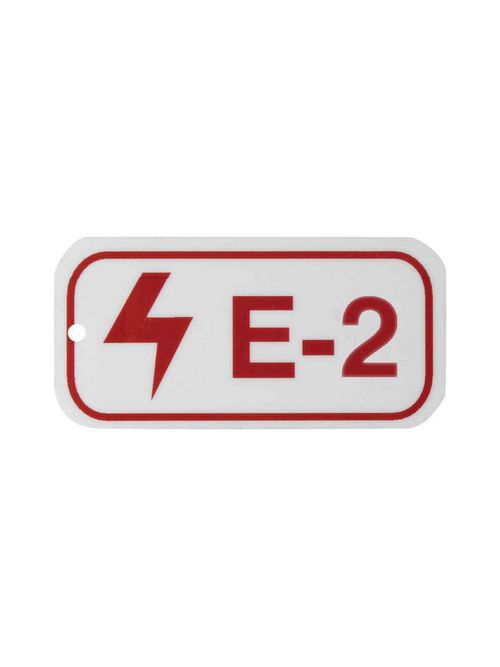

BRADY 105640 B401 1.5"X3" RED/WHT E
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Usually ships within 6 to 8 Days
Already a Customer? Log in to view your pricing
Manufacturer Brady
Mfg Catalog # 105640
North Coast Part # 1886971


  • High impact polystyrene construction is recommended for both indoor and outdoor use
  • Material conforms to flat or well-curved surfaces
  • B-401 signs are designed for use in light duty industrial, utility, commercial and institutional environments
  • Good abrasion and chemical resistance


  • Attachment Type: Adhesive Back
  • Brand Name: Brady®
  • Color: Red on White
  • Enables Industry Compliance: ANSI Z53.1-1967; ANSI Z535-2006; OSHA 1910.145; OSHA 1910.147
  • Energy Source Type: Electrical
  • Language: English
  • Primary Noun, Basic Function: Tag
  • Shape: Rectangle
  • Text Legend: E-2
  • Brady Material Number: B-401
  • Indoor or Outdoor Use: Outdoor Use
  • Material: Polystyrene
  • Material Properties: Rigid
  • Resistance Properties: Abrasion-Resistant; Chemical-Resistant
  • SAP B-Number: B-401
  • Dimensions: 1.5 in H x 3 in W
  • Dimensions (Metric): 38.1 mm H
  • Dimensions 2: 1.5 in H x 3 in W
  • Height (in/ft/yd): 1.5 in
  • Height (mm/cm/m): 38.1 mm
  • Hole Inside Diameter (in/ft/yd): .2 in
  • Maximum Service Temperature °C: 80 °C
  • Maximum Service Temperature °F: 176 °F
  • Minimum Service Temperature °C: -40 °C
  • Minimum Service Temperature °F: -40 °F
  • Sign Size-General: 1.5 in x 3 in
  • Thickness (in/ft/yd): 0.0591 in
  • Thickness (mm/cm/m): 1.4 mm
  • Width (in/ft/yd): 3 in
  • Width (mm/cm/m): 76.2 mm

Regulatory Information

  • Contains CA PROP 65 Substance: No - Does not contain
  • Contains CA PROP 65 Substance: No
  • DOT Regulated Product: No = not regulated by DOT
  • EU RoHS Compliance: Pass 2011/65/EU(Pass 2015/863)
  • EU RoHS Compliant: Yes
  • SDS Safety Data Sheet required: No = MSDS/SDS is not required


GTiN 00754473036973
Width 3 in
Color Red,White
Type Energy Source Tag
Thickness 0.059 in
Material Polystyrene
Mounting Type Adhesive Back
Height 1.5 in
Shape Rectangle
Family Brand Name Brady
Indoor Outdoor Outdoor
Max Operating Temperature 176 degrees F
Min Operating Temperature -40 degrees F
Legend E-2
CA Prop65 Warning N
Product UPC 75447303697
Max Temperature 176 degrees F
Min Temperature -40 degrees F
