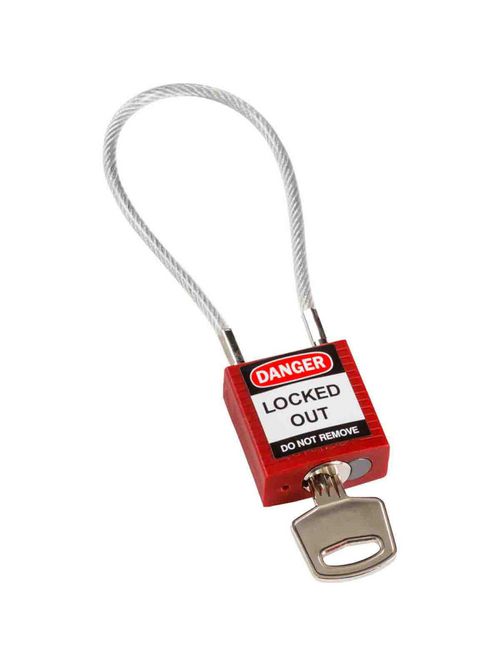

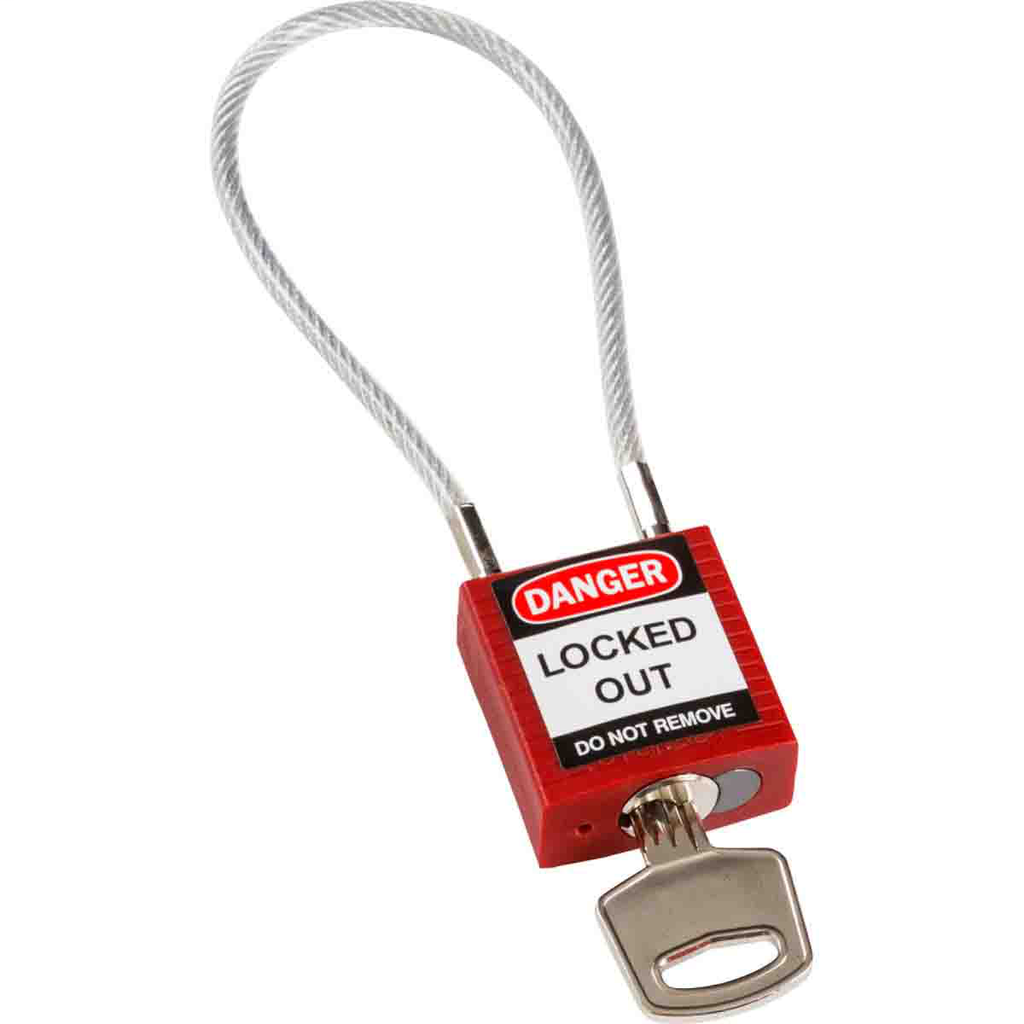

BRADY 146120 COMPACT CABLE PADLOCK
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$19.89/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Brady
Mfg Catalog # 146120
North Coast Part # 1427075

Features

  • Flexible cable allows for effective lockout in tight spaces such as breaker cabinets or simultaneous lockout of several energy isolation points.
  • Angle and twist the padlock cable in tight application areas
  • Complies with all OSHA requirements and makes it possible to secure several breaker lockouts simultaneously
  • Includes high-visibility safety label

Specifications

  • Applications: Electrical Labeling; Hazard Communication Identification
  • Body Coating/Finish: Reinforced Fiberglass
  • Brand Name: Brady®
  • Branded: Yes
  • Color: Red
  • Enables Industry Compliance: OSHA 1910.147
  • Engraving: Yes
  • Includes: (1) English Label; (1) French Label; (1) Key; (1) Padlock; (1) Spanish Label
  • Key Mechanism: Standard Pin Tumbler
  • Key Option: Keyed Different
  • Key-Retaining: Yes
  • Labels Supplied: Yes
  • Language: English; French; Spanish
  • Manufacturer Name: Brady®
  • Manufacturer Part Number: 71/30CAB20 RED KD
  • Maximum Number of Different Keycodes: 15000
  • Number of Keys Included: 1
  • Number of Labels Included: 3
  • Number of Pin Tumblers: 5
  • Primary Noun, Basic Function: Padlock
  • Reverse Legend: PROPERTY OF - PROPRIETE DE
  • Shackle Coating/Finish: Non-Conductive Nylon
  • Shackle Type: Open Shackle
  • Text Legend: DANGER LOCKED OUT
  • Total Qty per Pack: 1 Piece(s) / Box
  • Brady Material Number: LOTO-77
  • Conductive: No
  • Material: Rugged reinforced nylon body with Aluminum shackle
  • Material Properties: Anti-spark, Non-conductive
  • Padlock Body Material: Nylon
  • Shackle Material: Steel
  • Body Depth (in/ft/yd): 0.56 in
  • Body Depth (mm/cm/m): 14.2 mm
  • Body Height (in/ft/yd): 1.31 in
  • Body Height (mm/cm/m): 33.3 mm
  • Body Size (in/ft/yd): 1.31 in H x 1.25 in W x 0.56 in D
  • Body Size (mm/cm/m): 33.3 mm H x 31.8 mm W x 14.2 mm D
  • Body Width (in/ft/yd): 1.25 in
  • Body Width (mm/cm/m): 31.8 mm
  • Cable Length (mm/cm/m): 0.20
  • Depth (mm/cm/m): 16.00 mm
  • Dimensions (Metric): 32.00 mm W x 16.00 mm D
  • Maximum Service Temperature °C: 120 °C
  • Maximum Service Temperature °F: 250 °F
  • Minimum Service Temperature °C: -17.8 °C
  • Minimum Service Temperature °F: 0 °F
  • Minimum Wire Diameter (mm/cm/m): 4.76 mm
  • Shackle Diameter: 0.16 in
  • Shackle Diameter (mm): 4.70 mm
  • Shackle Horizontal Clearance: 0.75 in
  • Shackle Horizontal Clearance (Metric): 17.00 mm
  • Shackle Vertical Clearance: 4.2 in
  • Shackle Vertical Clearance (Metric): 106.68 mm
  • Shackle Width (mm): 26.00 mm
  • Size - Width (mm): 32.00 mm

Regulatory Information

  • CA Prop 65 Labeled: Yes
  • CA Prop 65 Label Warning: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
  • Contains CA PROP 65 Substance: Yes Contains-Label required
  • Contains CA PROP 65 Substance: Yes
  • Contains CA PROP 65 Warning Type: Cancer and Reproductive Harm
  • Contains CA Prop 65 Cancer and Reproductive Harm Chemical: Lead
  • Contains Heavy Metal(s): No - Does not contain
  • DOT Regulated Product: No = not regulated by DOT
  • EU RoHS Compliance: Not Applicable
  • EU RoHS Compliant: No
  • Contains 3TG Mineral: No-Does Not Contain
  • SDS Safety Data Sheet required: No = MSDS/SDS is not required

Overview

UPC 75447354990
GTiN 00754473549909
Color Red
Family Brand Name Brady?
Max Operating Temperature 250 degrees F
Min Operating Temperature 0 degrees F
CA Prop65 Warning Y
Width 32.00 mm
Depth 16.00 mm
Max Temperature 250 degrees F
Min Temperature 0 degrees F
Sub Brand Safety Lockout Padlock
