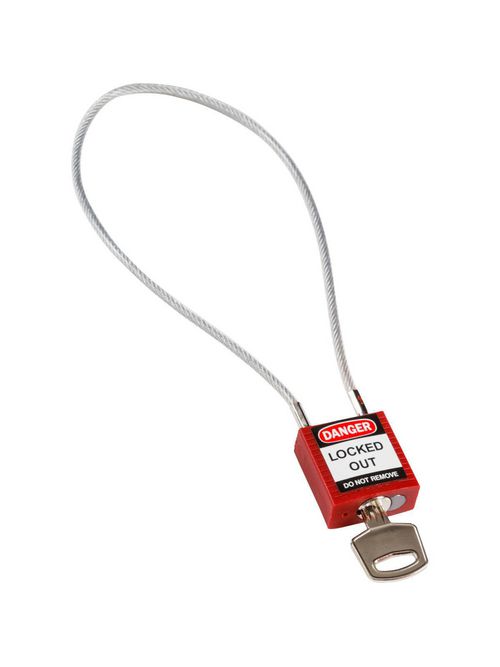

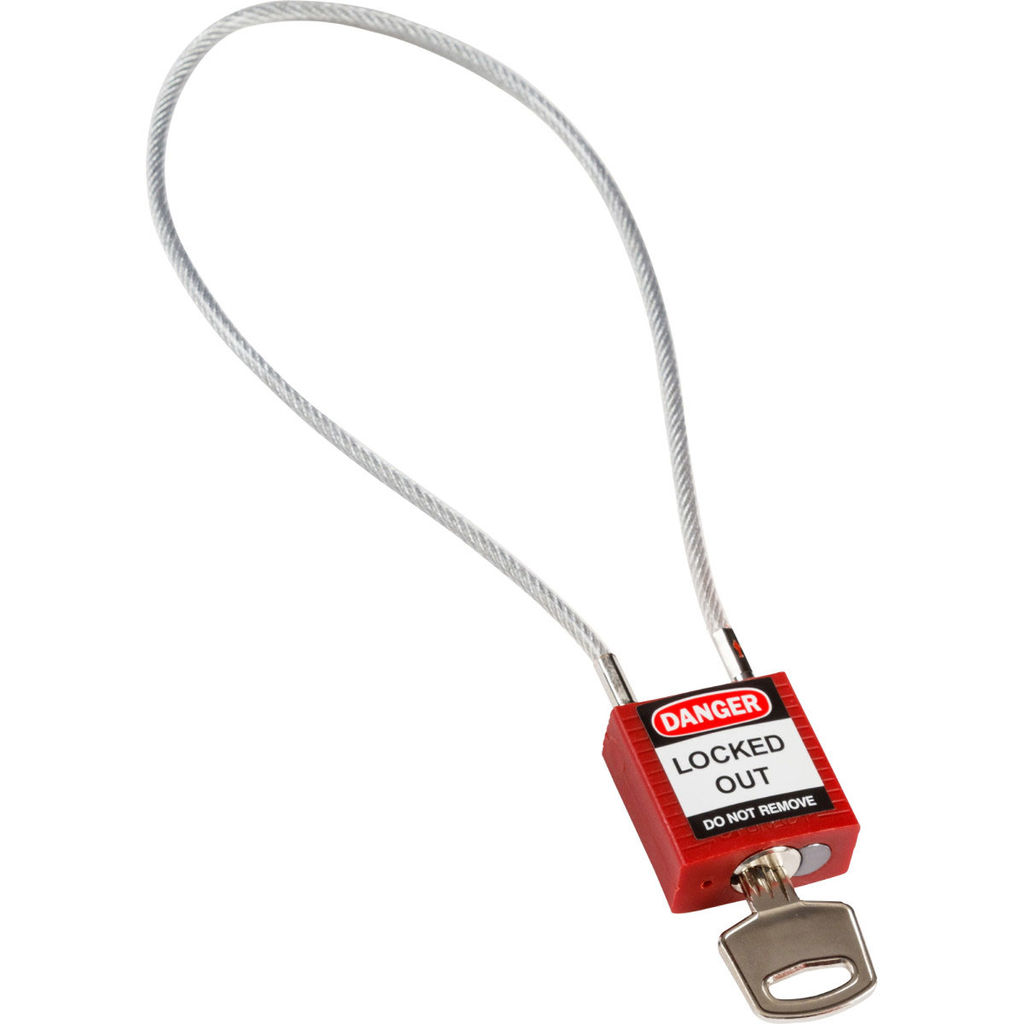

BRADY 146124 COMPACT CABLE PADLOCK

Features

• Flexible cable allows for effective lockout in tight spaces such as breaker cabinets or simultaneous lockout of several energy isolation points.
• Angle and twist the padlock cable in tight application areas
• Complies with all OSHA requirements and makes it possible to secure several breaker lockouts simultaneously
• Includes high-visibility safety label

Specifications

• Applications: Electrical Labeling; Hazard Communication Identification
• Body Coating/Finish: Reinforced Fiberglass
• Brand Name: Brady®
• Branded: Yes
• Color: Red
• Enables Industry Compliance: OSHA 1910.147
• Engraving: Yes
• Includes: (1) English Label; (1) French Label; (1) Key; (1) Padlock; (1) Spanish Label
• Key Mechanism: Standard Pin Tumbler
• Key Option: Keyed Different
• Key-Retaining: Yes
• Labels Supplied: Yes
• Language: English; French; Spanish
• Manufacturer Name: Brady®
• Manufacturer Part Number: 71/30CAB40 RED KD
• Maximum Number of Different Keycodes: 15000
• Number of Keys Included: 1
• Number of Labels Included: 3
• Number of Pin Tumblers: 5
• Primary Noun, Basic Function: Padlock
• Reverse Legend: PROPERTY OF - PROPRIETE DE
• Shackle Coating/Finish: Non-Conductive Nylon
• Shackle Type: Open Shackle
• Text Legend: DANGER LOCKED OUT
• Total Qty per Pack: 1 Piece(s) / Box
• Brady Material Number: LOTO-77
• Conductive: No
• Material: Rugged reinforced nylon body with Aluminum shackle
• Material Properties: Anti-spark, Non-conductive
• Padlock Body Material: Nylon
• Shackle Material: Steel
• Body Depth (in/ft/yd): 0.56 in
• Body Depth (mm/cm/m): 14.2 mm
• Body Height (in/ft/yd): 1.31 in
• Body Height (mm/cm/m): 33.3 mm
• Body Size (in/ft/yd): 1.31 in H x 1.25 in W x 0.56 in D
• Body Size (mm/cm/m): 33.3 mm H x 31.8 mm W x 14.2 mm D
• Body Width (in/ft/yd): 1.25 in
• Body Width (mm/cm/m): 31.8 mm
• Cable Length (mm/cm/m): 0.40
• Depth (mm/cm/m): 16.00 mm
• Dimensions (Metric): 32.00 mm W x 16.00 mm D
• Maximum Service Temperature °C: 120 °C
• Maximum Service Temperature °F: 250 °F
• Minimum Service Temperature °C: -17.8 °C
• Minimum Service Temperature °F: 0 °F
• Minimum Wire Diameter (mm/cm/m): 4.76 mm
• Shackle Diameter: 0.16 in
• Shackle Diameter (mm): 4.70 mm
• Shackle Horizontal Clearance: 0.75 in
• Shackle Horizontal Clearance (Metric): 17.00 mm
• Shackle Vertical Clearance: 8 in
• Shackle Vertical Clearance (Metric): 203.20 mm
• Shackle Width (mm): 26.00 mm
• Size - Width (mm): 32.00 mm

Regulatory Information

• CA Prop 65 Labeled: Yes
• CA Prop 65 Label Warning: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
• Contains CA PROP 65 Substance: Yes Contains-Label required
• Contains CA PROP 65 Substance: Yes
• Contains CA PROP 65 Warning Type: Cancer and Reproductive Harm
• Contains CA Prop 65 Cancer and Reproductive Harm Chemical: Lead
• Contains Heavy Metal(s): No - Does not contain
• DOT Regulated Product: No = not regulated by DOT
• EU RoHS Compliance: Not Applicable
• EU RoHS Compliant: No
• Contains 3TG Mineral: No-Does Not Contain
• SDS Safety Data Sheet required: No = MSDS/SDS is not required
