Manufacturer Brady
Mfg Catalog # 22075-B
North Coast Part # 762388


  • The permanent front- and back-side labels on these aluminum hasps include a write-on area that accepts pen, pencil and permanent marker
  • Hasps allow multiple padlocks to secure a single lockout device.
  • Equipping your employees with the proper lockout tools and warning devices can save lives, reduce lost employee time, and cut insurance costs
  • Brady® is a world leader in lockout/tagout products and services offering industry expertise and a broad range of durable, easy-to-use lockout devices


  • Brand Name: Brady®
  • Color: Blue
  • Enables Industry Compliance: OSHA 1910.147
  • Language: English
  • Maximum Number of Padlocks: 6
  • Number of Holes: 6
  • Number of Jaws: 1
  • Primary Noun, Basic Function: Hasp

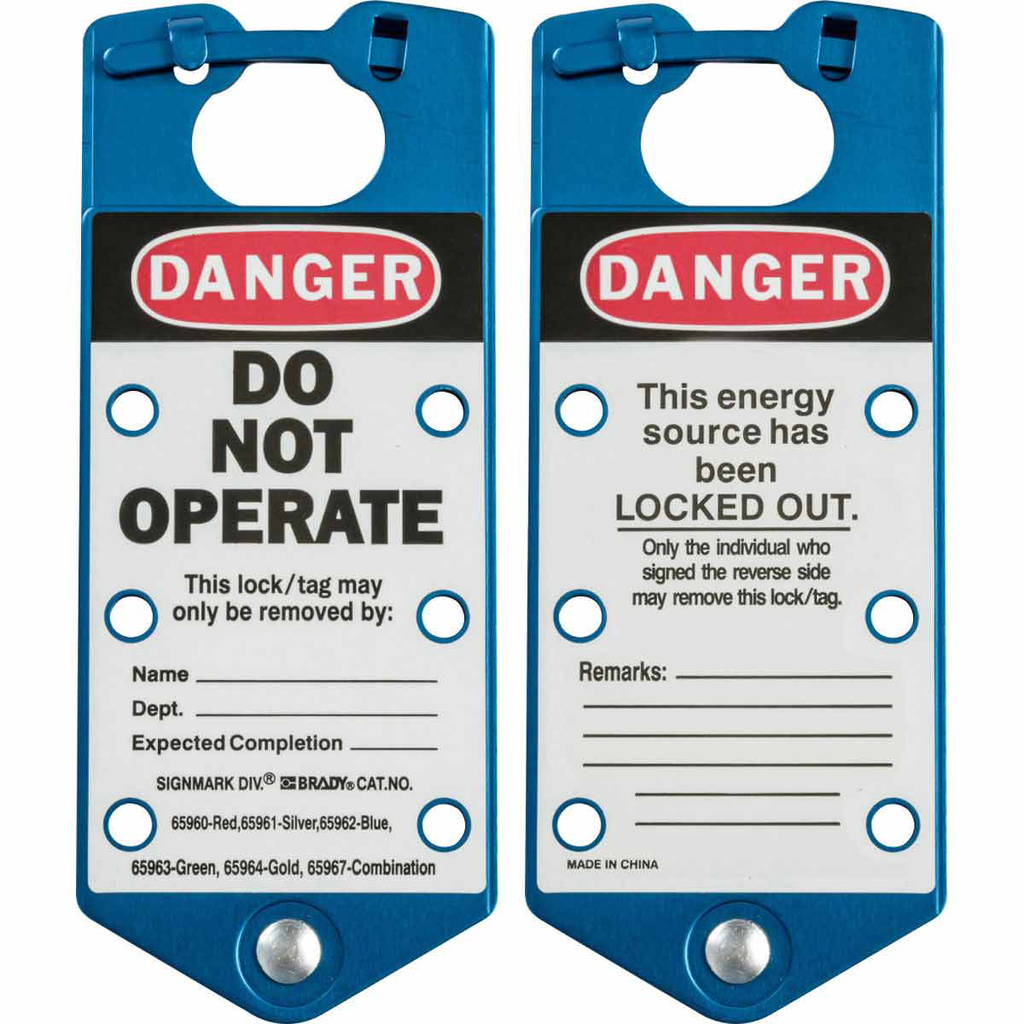

  • Reverse Legend: DANGER This energy source has been LOCKED OUT.
  • Risk Type: Mechanical Risk
  • Total Qty per Pack: 5 Piece(s) / Pack
  • Type: Snap-In with Interlocking Tabs
  • Adhesive (Y/N): No
  • Brady Material Number: LOTO-34
  • Coating Material: Anodized
  • Material: Aluminum
  • SAP B-Number: LOTO-34
  • Depth (in/ft/yd): 0.157 in
  • Depth (mm/cm/m): 3.99 mm
  • Dimensions: 7.512 in H x 3 in W x 0.157 in D
  • Dimensions (Metric): 76.30 mm W x 190.80 mm H x 3.99 mm D
  • Height (in/ft/yd): 7.512 in
  • Height (mm/cm/m): 190.80 mm
  • Hole Inside Diameter (mm/cm/m): 8.00 mm
  • Inside Jaw Size: 1.429 in
  • Maximum Service Temperature °C: 175 °C
  • Maximum Shackle Diameter (in/ft/yd): 0.3125 in
  • Maximum Shackle Diameter (mm/cm/m): 7.94 mm
  • Minimum Service Temperature °C: -30 °C
  • Sign Size-General: 7.512 in x 3 in
  • Size - W x H x D (mm): 76.30 x 190.80 x 3.99
  • Size - Width (mm): 76.30 mm
  • Thickness (mm/cm/m): 5.00
  • Width (in/ft/yd): 3 in
  • Width (mm/cm/m): 76.2 mm

Regulatory Information

  • Contains CA PROP 65 Substance: No - Does not contain
  • Contains CA PROP 65 Substance: No
  • Contains Heavy Metal(s): No - Does not contain
  • DOT Regulated Product: No = not regulated by DOT
  • EU RoHS Compliance: Not Applicable
  • EU RoHS Compliant: No
  • SDS Safety Data Sheet required: No = MSDS/SDS is not required


UPC 75447365962
GTiN 00754473659622
Length 0.157 in
Finish Anodized
Width 3 in
Color Blue
Type Hasp
Material Aluminum
Applications Mechanical Risk Lockout
Height 7.512 in
Family Brand Name Brady
Number of Jaws 1
CA Prop65 Warning N
Depth 0.157 in
Max Temperature 175 C
Min Temperature -30 C
