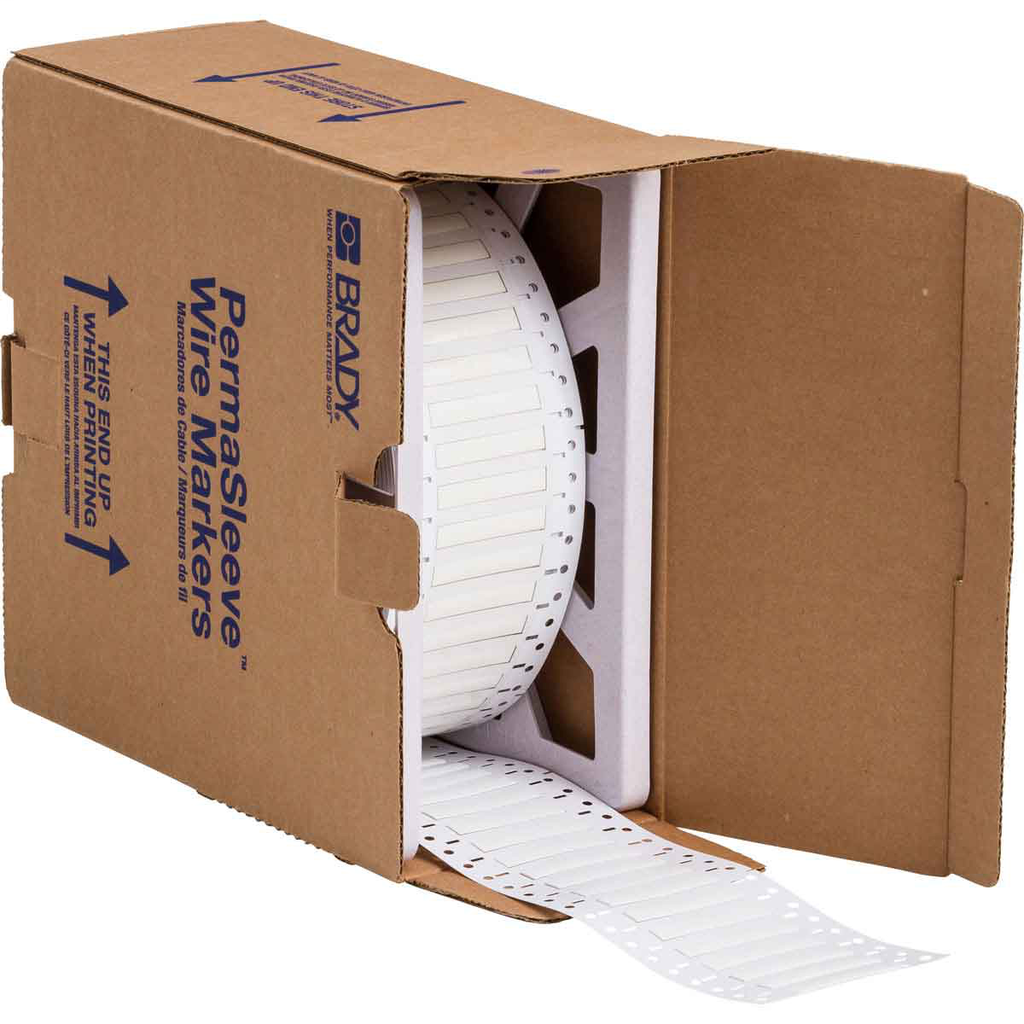

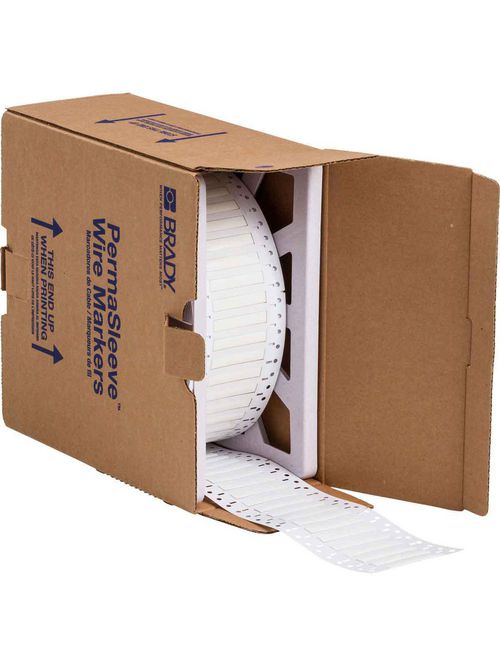

BRADY 2LSZH-187-2-WT Wire Mkr,THT,B
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$1,758.99/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Brady
Mfg Catalog # 2LSZH-187-2-WT
North Coast Part # 1342518

Features

  • Made of halogen-free, flexible flame-retardant, heat-shrinkable polyolefin tubing, offering fire safety properties and minimal smoke emission
  • Compatible with the most stringent requirements in the market today to enhance fire safety needs
  • 2:1 heat-shrink ratio
  • Use with thermal transfer printers and Brady's R6000 series halogen-free ribbon

Specifications

  • Applications: Electrical Labeling; Wire and Cable Labeling
  • Brand Name: Brady®
  • Color: White
  • Enables Industry Compliance: ASTM D 257; ASTM D 2671; ASTM D 2671C; ASTM D 570; ASTM D 635; ASTM D 638; ASTM D 792; BS6853 (1999) Vehicle Category 1a; European Standard EN 45545-2, Requirement Set R22/R23, Vehicle Category HL3; Halogen Free (DIN VDE 0472 Part 815); MIL-M-81531; MIL-STD-202; MIL-STD-202G; SAE-AS-81531
  • Finish: Matte
  • For Use with Printer: BBP®72 Label Printer; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
  • Label/Media Format: Roll
  • Markers per Roll: 2500
  • Primary Noun, Basic Function: Sleeve
  • Print Technology: Thermal Transfer
  • Printable Sides: Double-Side Printable
  • Printer and Label Applications: Wire & Cable
  • Printer Compatibility: BBP12; BBP11; BBP72; PR200Plus; PR300Plus; PR600Plus; i7100
  • Printer Compatibility (Print): BBP12; BBP72; i7100
  • Quantity per Roll: 2500
  • Quantity per Row: 1
  • Recommended Ribbon: IP-R6007; R6007
  • Ribbon Series: R6600
  • Shape: Rectangle
  • Shrink Ratio: 2:1
  • Sleeve Slits: No
  • Software Compatibility: LabelMark, CodeSoft
  • Suggested Ribbon Series: R6000 Halogen Free; R6600
  • Total Qty per Pack: 2500 Sleeve(s) / Roll
  • Total Quantity: 2500
  • Trade Name: PermaSleeve®
  • Adhesive (Y/N): No
  • Brady Material Number: B-7641
  • Label Properties: Heat Shrink Sleeves
  • Material: Heat-shrink Polyolefin
  • Material Properties: Flame-retardant; Heat-shrinkable; Low-smoke; Zero-halogen
  • Resistance Properties: Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Self-Extinguishing; UV-Resistant; Weather-Resistant
  • SAP B-Number: B-7641
  • Core Diameter (mm/cm/m): 76.20 mm
  • Diameter as Supplied (in/ft/yd): 0.187 in
  • Diameter as Supplied (mm/cm/m): 4.8 mm
  • Dimensions: 0.335 in H
  • Dimensions (Metric): 50.80 mm W x 8.50 mm H
  • Dimensions 2: 0.335 in H
  • Height (in/ft/yd): 0.335 in
  • Height (mm/cm/m): 8.50 mm
  • Maximum Service Temperature °C: 105 °C
  • Maximum Service Temperature °F: 221 °F
  • Maximum Wire Diameter (in/ft/yd): 0.15 in
  • Maximum Wire Diameter (mm/cm/m): 3.83 mm
  • Maximum Wire Gauge: 10 AWG
  • Minimum Service Temperature °C: -55 °C
  • Minimum Service Temperature °F: -67 °F
  • Minimum Wire Diameter (in/ft/yd): 0.094 in
  • Minimum Wire Diameter (mm/cm/m): 2.39 mm
  • Minimum Wire Gauge: 16 AWG
  • Recovered Diameter (in/ft/yd): 0.094 in
  • Recovered Diameter (mm/cm/m): 2.4 mm
  • Recovered Wall Thickness (in/ft/yd): 0.025 in
  • Recovered Wall Thickness (mm/cm/m): 0.64 mm
  • Roll Width (in/ft/yd): 2 in
  • Roll Width (mm/cm/m): 50.8 mm
  • Size - Width (mm): 50.80 mm
  • Sleeve Size (in/ft/yd): 0.187 in Dia x 2 in W
  • Sleeve Size (mm/cm/m): 4.8 mm Dia x 50.8 mm W
  • Sleeve Width (in/ft/yd): 2 in
  • Sleeve Width (mm/cm/m): 50.8 mm
  • Vertical Repeat: 0.625 in
  • Vertical Repeat (mm): 15.88 mm
  • Web Width (in/ft/yd): 3.49 in
  • Web Width (mm/cm/m): 88.65 mm
  • Wire Diameter Range: 0.094 in to 0.15 in
  • Wire Gauge Range: 16 AWG to 10 AWG

Regulatory Information

  • Contains CA PROP 65 Substance: No - Does not contain
  • Contains CA PROP 65 Substance: No
  • Contains Heavy Metal(s): No - Does not contain
  • EU RoHS Compliance: Pass 2011/65/EU(Pass 2015/863)
  • EU RoHS Compliant: Yes
  • SDS Safety Data Sheet required: No = MSDS/SDS is not required

Overview

UPC 75447394241
GTiN 00754473942410
Finish Matte
Width 50.80 mm
Color White
Type Heat Shrink Tubing
Diameter 0.187 in Diameter as Supplied
Material Polyolefin
Shrink Ratio 2:1
Applications Cable & Wire Marking; Panel Labeling
Height 0.335 in
Wire Size 16-10 AWG
Shape Rectangle
Family Brand Name Brady
Roll Width 2 in
Sub Brand PermaSleeve
CA Prop65 Warning N
Max Temperature 221 degrees F
Min Temperature -67 degrees F
