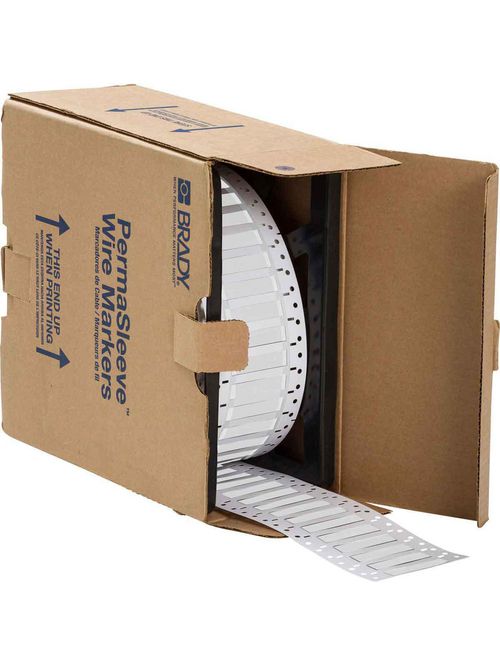

BRADY 2LSZH-250-2-WT Wire Mkr,THT,B

Features

• Made of halogen-free, flexible flame-retardant, heat-shrinkable polyolefin tubing, offering fire safety properties and minimal smoke emission
• Compatible with the most stringent requirements in the market today to enhance fire safety needs
• 2:1 heat-shrink ratio
• Use with thermal transfer printers and Brady's R6000 series halogen-free ribbon

Specifications

• Applications: Electrical Labeling; Wire and Cable Labeling
• Brand Name: Brady®
• Color: White
• Enables Industry Compliance: ASTM D 257; ASTM D 2671; ASTM D 2671C; ASTM D 570; ASTM D 635; ASTM D 638; ASTM D 792; BS6853 (1999) Vehicle Category 1a; European Standard EN 45545-2, Requirement Set R22/R23, Vehicle Category HL3; Halogen Free (DIN VDE 0472 Part 815); MIL-M-81531; MIL-STD-202; MIL-STD-202G; SAE-AS-81531
• Finish: Matte
• For Use with Printer: BBP®72 Label Printer; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
• Label/Media Format: Roll
• Markers per Roll: 2500
• Primary Noun, Basic Function: Sleeve
• Print Technology: Thermal Transfer
• Printable Sides: Double-Side Printable
• Printer and Label Applications: Wire & Cable
• Printer Compatibility: BBP12; BBP11; BBP72; PR200Plus; PR300Plus; PR600Plus; i7100
• Printer Compatibility (Print): BBP12; BBP72; i7100
• Quantity per Roll: 2500
• Quantity per Row: 1
• Recommended Ribbon: IP-R6007; R6007
• Ribbon Series: R6600
• Shape: Rectangle
• Shrink Ratio: 2:1
• Sleeve Slits: No
• Software Compatibility: LabelMark, CodeSoft
• Suggested Ribbon Series: R6000 Halogen Free; R6600
• Total Qty per Pack: 2500 Sleeve(s) / Roll
• Total Quantity: 2500
• Trade Name: PermaSleeve®
• Adhesive (Y/N): No
• Brady Material Number: B-7641
• Label Properties: Heat Shrink Sleeves
• Material: Heat-shrink Polyolefin
• Material Properties: Flame-retardant; Heat-shrinkable; Low-smoke; Zero-halogen
• Resistance Properties: Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Self-Extinguishing; UV-Resistant; Weather-Resistant
• SAP B-Number: B-7641
• Core Diameter (mm/cm/m): 76.20 mm
• Diameter as Supplied (in/ft/yd): 0.25 in
• Diameter as Supplied (mm/cm/m): 6.4 mm
• Dimensions: 0.439 in H
• Dimensions (Metric): 50.80 mm W x 11.15 mm H
• Dimensions 2: 0.439 in H
• Height (in/ft/yd): 0.439 in
• Height (mm/cm/m): 11.15 mm
• Maximum Service Temperature °C: 105 °C
• Maximum Service Temperature °F: 221 °F
• Maximum Wire Diameter (in/ft/yd): 0.215 in
• Maximum Wire Diameter (mm/cm/m): 5.46 mm
• Maximum Wire Gauge: 8 AWG
• Minimum Service Temperature °C: -55 °C
• Minimum Service Temperature °F: -67 °F
• Minimum Wire Diameter (in/ft/yd): 0.125 in
• Minimum Wire Diameter (mm/cm/m): 3.18 mm
• Minimum Wire Gauge: 12 AWG
• Recovered Diameter (in/ft/yd): 0.125 in
• Recovered Diameter (mm/cm/m): 3.2 mm
• Recovered Wall Thickness (in/ft/yd): 0.029 in
• Recovered Wall Thickness (mm/cm/m): 0.74 mm
• Roll Width (in/ft/yd): 2 in
• Roll Width (mm/cm/m): 50.8 mm
• Size - Width (mm): 50.80 mm
• Sleeve Size (in/ft/yd): 0.25 in Dia x 2 in W
• Sleeve Size (mm/cm/m): 6.4 mm Dia x 50.8 mm W
• Sleeve Width (in/ft/yd): 2 in
• Sleeve Width (mm/cm/m): 50.8 mm
• Vertical Repeat: 0.75 in
• Vertical Repeat (mm): 19.05 mm
• Web Width (in/ft/yd): 3.49 in
• Web Width (mm/cm/m): 88.65 mm
• Wire Diameter Range: 0.125 in to 0.215 in
• Wire Gauge Range: 12 AWG to 8 AWG

Regulatory Information

• Contains CA PROP 65 Substance: No - Does not contain
• Contains CA PROP 65 Substance: No
• Contains Heavy Metal(s): No - Does not contain
• DOT Regulated Product: No = not regulated by DOT
• EU RoHS Compliance: Pass 2011/65/EU(Pass 2015/863)
• EU RoHS Compliant: Yes
• SDS Safety Data Sheet required: No = MSDS/SDS is not required
