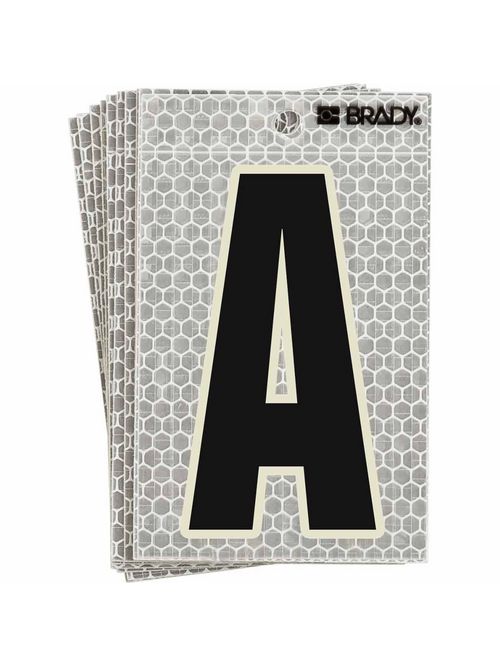

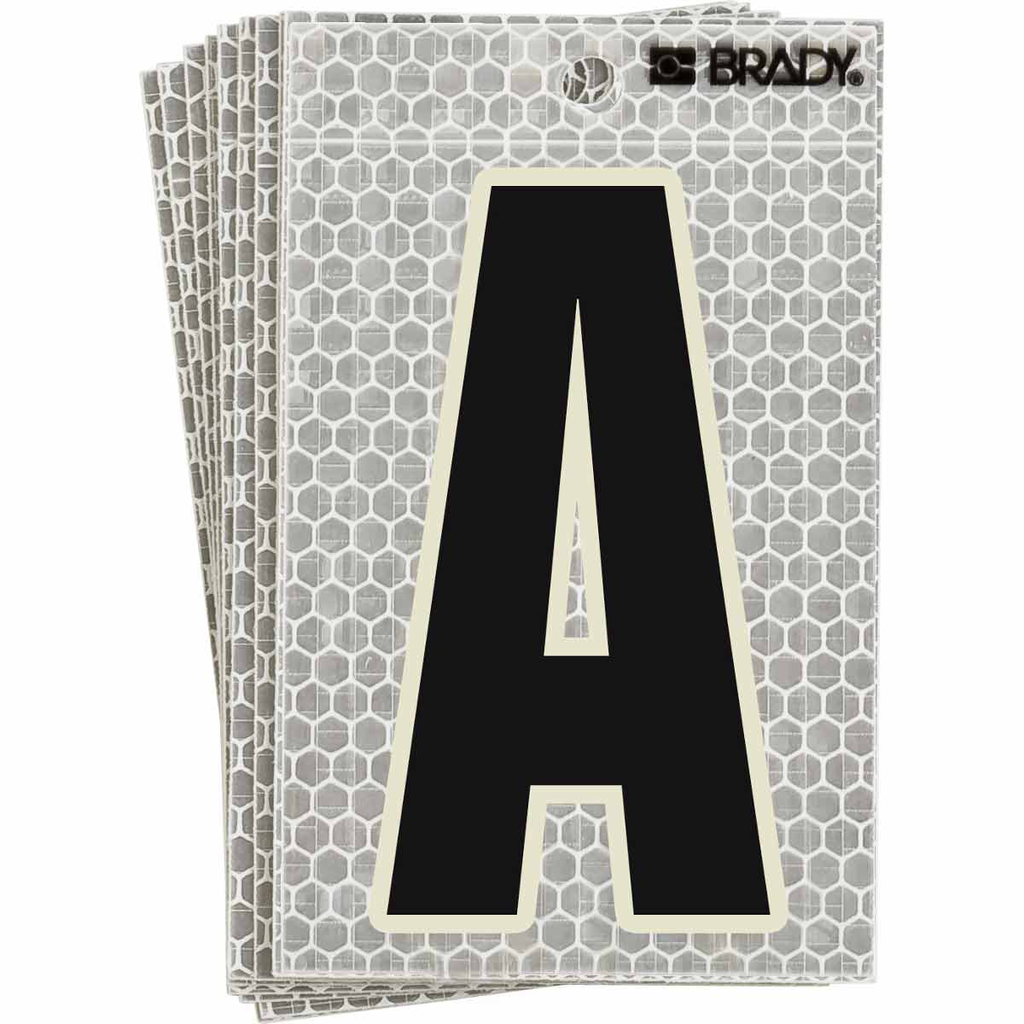

BRADY 3020-A Label,3 Series,5"H,Blk
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Usually ships within 6 to 8 Days
Already a Customer? Log in to view your pricing
Manufacturer Brady
Mfg Catalog # 3020-A
North Coast Part # 486798


  • Ideal for use in general permanent labeling indoors and in severe outdoor environments.
  • Special acrylic adhesive adheres strongly making marker removal difficult
  • Ultra-reflective technology allows for maximum visibility from a greater distance than standard vinyl


  • Brand Name: Brady®
  • Cards or Sheets per Pack: 10
  • Color: Black/Green Glow on Silver
  • Compatible Surface Types: High Surface Energy
  • Enables Industry Compliance: ASTM D 4956; ASTM D 523
  • Label/Media Format: Die-Cut on Cards
  • Primary Noun, Basic Function: Label
  • Printer and Label Applications: General Identification; Safety
  • PSPA Photoluminescence Class: Photoluminescent
  • Quantity per Card or Sheet: 1
  • Reflective Type: High-Intensity Prismatic (HIP)
  • Text Legend: A
  • Adhesive Type: Permanent Acrylic
  • Brady Material Number: B-309
  • Indoor or Outdoor Use: Outdoor Use
  • Label Properties: Glow in the Dark Labels
  • Material: Reflective Sheeting
  • Material Properties: Photoluminescent; Reflective
  • Resistance Properties: Abrasion-Resistant; Chemical-Resistant
  • SAP B-Number: B-309
  • Character Height (in/ft/yd): 5 in
  • Character Height (mm/cm/m): 127 mm
  • Dimensions: 6 in H x 3 in W
  • Dimensions (Metric): 152.4 mm H
  • Dimensions 2: 6 in H x 3 in W
  • Height (in/ft/yd): 6 in
  • Height (mm/cm/m): 152.4 mm
  • Maximum Service Temperature °C: 100 °C
  • Maximum Service Temperature °F: 212 °F
  • Minimum Application Temperature °C: 18 °C
  • Minimum Application Temperature °F: 64 °F
  • Minimum Service Temperature °C: -40 °C
  • Minimum Service Temperature °F: -40 °F
  • Sign Size: 6 in H x 3 in W
  • Sign Size-General: 6 in x 3 in
  • Thickness (in/ft/yd): 0.0155 in
  • Thickness (mm/cm/m): 0.394 mm
  • Width (in/ft/yd): 3 in
  • Width (mm/cm/m): 76.2 mm

Regulatory Information

  • Contains CA PROP 65 Substance: No - Does not contain
  • Contains CA PROP 65 Substance: No
  • Contains Heavy Metal(s): No - Does not contain
  • DOT Regulated Product: No = not regulated by DOT
  • EU RoHS Compliance: Pass 2011/65/EU
  • EU RoHS Compliant: Yes
  • SDS Safety Data Sheet required: No = MSDS/SDS is not required


UPC 75447303639
Item Long Description This B-309 material is a high intensity presmatic reflective sheeting with photoluminescent material backed with pressure senstive adhesive.
GTiN 00754473036393
Width 3 in
Adhesive Type Acrylic
Color Black,Green
Type Label
Thickness 0.015 in
Material B-309 Vinyl
Applications Labeling in Low Light Conditions
Height 6 in
Family Brand Name Brady
Indoor Outdoor Outdoor
Max Operating Temperature 212 degrees F
Min Operating Temperature -40 degrees F
Legend A
CA Prop65 Warning N
Max Temperature 212 degrees F
Min Temperature -40 degrees F
