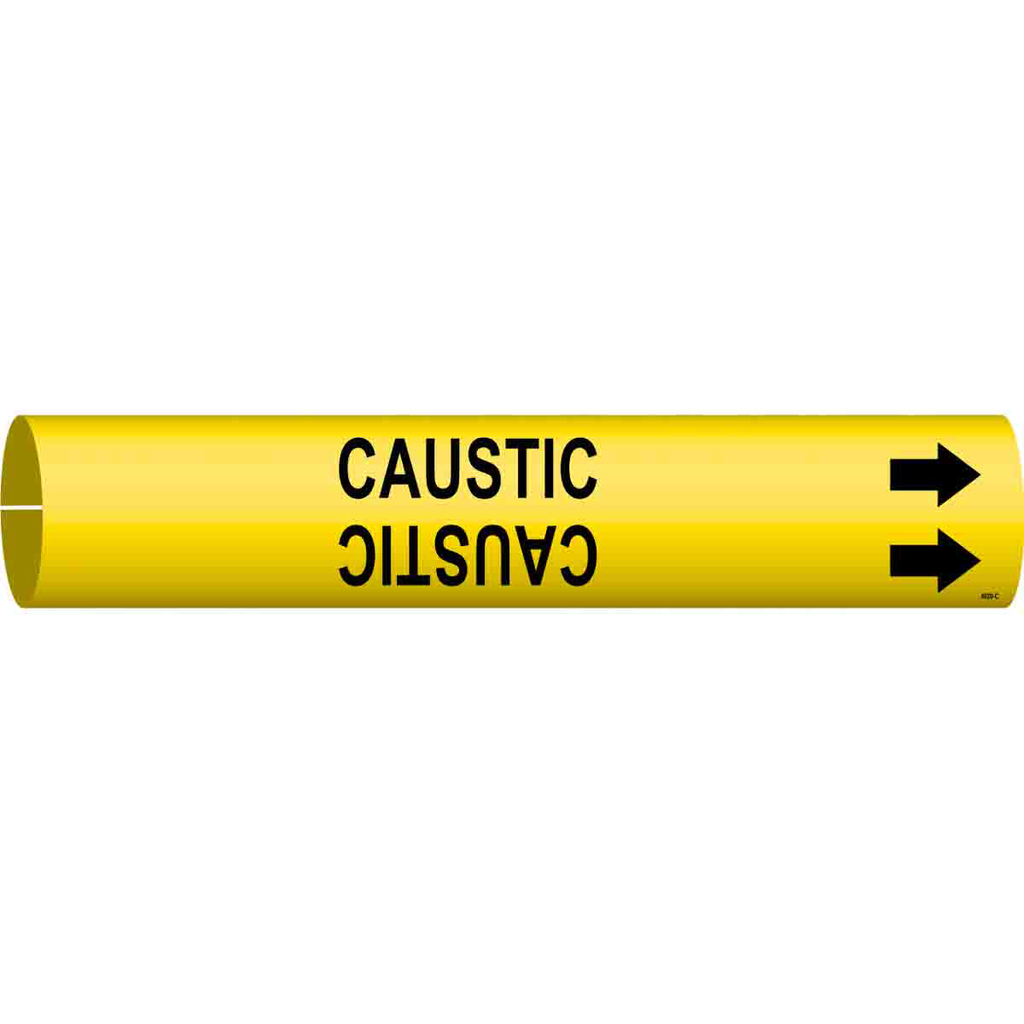

BRADY 4020-C Pipe Mkr,B915,S-C,Yw,C

Features

• Designed for general purpose pipe identification
• May be applied to dirty, oily, greasy or rough surfaces
• Meets ASME (ANSI) Standard
• Lightweight coiled plastic can be removed and reapplied

Specifications

• Applications: Pipe and Valve Marking
• Arrow Direction: Right
• Brand Name: Brady®
• Color: Black on Yellow
• Compatible Surface Types: Curved
• Enables Industry Compliance: ANSI A13.1-2007
• Language: English
• Pictogram Description: Directional Arrow Symbol
• Pipe Marker Mounting Style: Snap-On
• Pipe Marker Style: C
• Pre-Printed Areas on Label: Pipe Contents & Pictograms
• Primary Noun, Basic Function: Pipe Marker
• Printer and Label Applications: Pipe Marker
• PSPA Photoluminescence Class: Not Illuminated
• Reflective Type: Non-Reflective
• Text Legend: CAUSTIC
• Trade Name: BradySnap-On™
• Brady Material Number: B-915
• Indoor or Outdoor Use: Outdoor Use
• Label Properties: Harsh Environment Labels
• Material: Plastic
• Resistance Properties: Abrasion-Resistant; Chemical-Resistant
• SAP B-Number: B-915
• Average Outdoor Durability: 5 to 8 Years
• Character Height (in/ft/yd): 1.25 in
• Character Height (mm/cm/m): 31.8 mm
• Dimensions: 2 in H x 2 in W
• Dimensions (Metric): 50.8 mm H
• Dimensions 2: 2 in H x 2 in W
• Height (in/ft/yd): 2 in
• Height (mm/cm/m): 50.8 mm
• Maximum Outside Pipe Diameter (in/ft/yd): 3.875 in
• Maximum Outside Pipe Diameter (mm/cm/m): 98.43 mm
• Maximum Service Temperature °C: 60 °C
• Maximum Service Temperature °F: 140 °F
• Minimum Outside Pipe Diameter (in/ft/yd): 2.5 in
• Minimum Outside Pipe Diameter (mm/cm/m): 63.5 mm
• Minimum Service Temperature °C: -40 °C
• Minimum Service Temperature °F: -40 °F
• Overall Size: Fits Pipes 2.5" Dia. Thru 3.875in Dia.
• Sign Size-General: 2 in x 2 in
• Size: C
• Width (in/ft/yd): 2 in
• Width (mm/cm/m): 50.8 mm

Regulatory Information

• Contains CA PROP 65 Substance: No - Does not contain
• Contains CA PROP 65 Substance: No
• Contains Heavy Metal(s): No - Does not contain
• DOT Regulated Product: No = not regulated by DOT
• EU RoHS Compliance: Pass 2011/65/EU
• EU RoHS Compliant: Yes
• SDS Safety Data Sheet required: No = MSDS/SDS is not required
