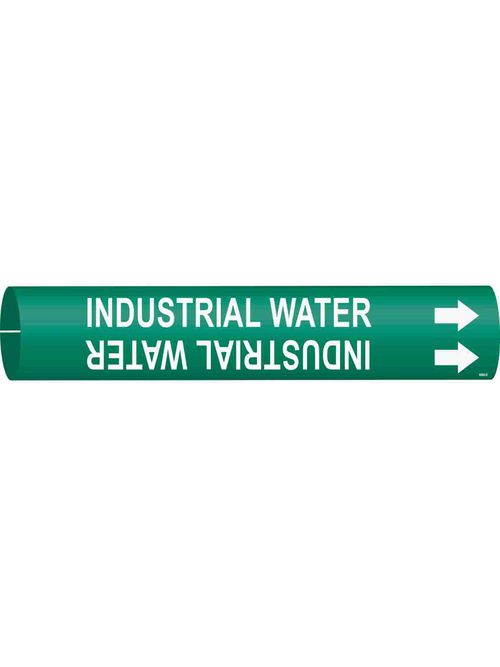

BRADY 4088-B Pipe Mkr,B915,S-B,Gr,I

Features

• Designed for general purpose pipe identification
• May be applied to dirty, oily, greasy or rough surfaces
• Meets ASME (ANSI) Standard
• Lightweight coiled plastic can be removed and reapplied

Specifications

• Applications: Pipe and Valve Marking
• Arrow Direction: Right
• Brand Name: Brady®
• Color: White on Green
• Compatible Surface Types: Curved
• Enables Industry Compliance: ANSI A13.1-2007
• Language: English
• Pictogram Description: Directional Arrow Symbol
• Pipe Marker Mounting Style: Snap-On
• Pipe Marker Style: B
• Pre-Printed Areas on Label: Pipe Contents
• Primary Noun, Basic Function: Pipe Marker
• Printer and Label Applications: Pipe Marker
• PSPA Photoluminescence Class: Not Illuminated
• Reflective Type: Non-Reflective
• Text Legend: INDUSTRIAL WATER
• Trade Name: BradySnap-On™
• Brady Material Number: B-915
• Indoor or Outdoor Use: Outdoor Use
• Label Properties: Harsh Environment Labels
• Material: Plastic
• Resistance Properties: Abrasion-Resistant; Chemical-Resistant
• SAP B-Number: B-915
• Average Outdoor Durability: 5 to 8 Years
• Character Height (in/ft/yd): 0.75 in
• Dimensions: 0.875 in H x 0.875 in W
• Dimensions (Metric): 22.2 mm H
• Dimensions 2: 0.875 in H x 0.875 in W
• Height (in/ft/yd): 0.875 in
• Height (mm/cm/m): 22.2 mm
• Maximum Outside Pipe Diameter (in/ft/yd): 2.375 in
• Maximum Outside Pipe Diameter (mm/cm/m): 60.33 mm
• Maximum Service Temperature °C: 60 °C
• Maximum Service Temperature °F: 140 °F
• Minimum Outside Pipe Diameter (in/ft/yd): 1.5 in
• Minimum Outside Pipe Diameter (mm/cm/m): 38.1 mm
• Minimum Service Temperature °C: -40 °C
• Minimum Service Temperature °F: -40 °F
• Overall Size: Fits Pipes 1.5" Dia. Thru 2.375in Dia.
• Roll/Tape Size (in/ft/yd): 0.875 in H x 0.875 in W
• Sign Size-General: 0.875 in x 0.875 in
• Size: B
• Width (in/ft/yd): 0.875 in
• Width (mm/cm/m): 22.23 mm

Regulatory Information

• Contains CA PROP 65 Substance: No - Does not contain
• Contains CA PROP 65 Substance: No
• Contains Heavy Metal(s): No - Does not contain
• DOT Regulated Product: No = not regulated by DOT
• EU RoHS Compliance: Not Applicable
• EU RoHS Compliant: No
• SDS Safety Data Sheet required: No = MSDS/SDS is not required
