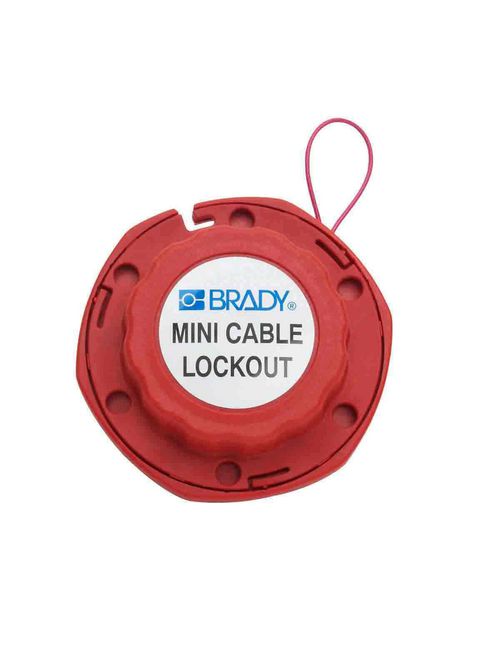

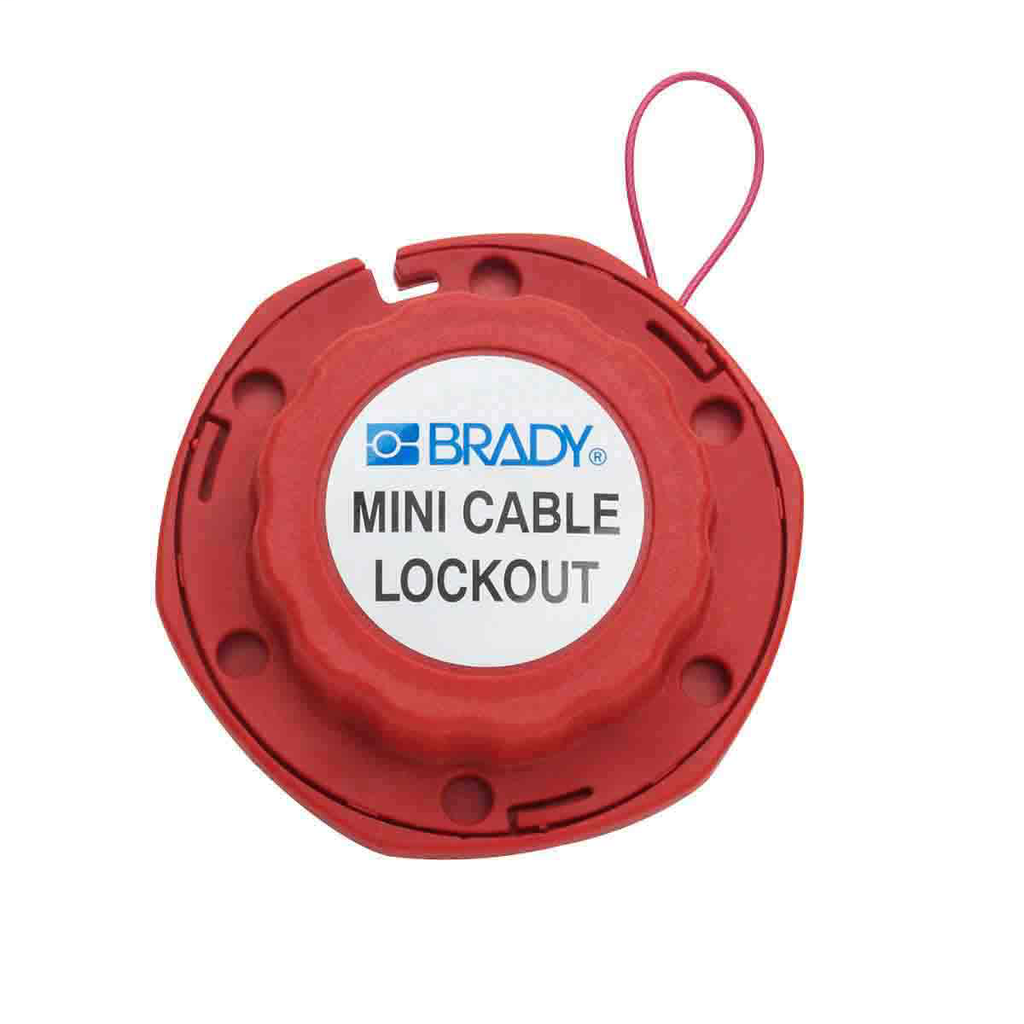

Brady 50940 Mini Cable Lockout with Metal Cable
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$47.99/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Brady
Mfg Catalog # 50940
North Coast Part # 349828

Features

  • Mini Cable Lockouts are extremely compact and portable, cable stored internally
  • Push button self-winding mechanism retracts automatically to tightly cinch the cable, leaving no slack
  • Device comes complete with a sheathed metal lockout cable attachment
  • Superior chemical, corrosion and temperature-resistant properties

Specifications

  • Brand Name: Brady®
  • Cable Color: Red
  • Cable Finish/Coating: Vinyl
  • Cable Included: Yes
  • Color: Red
  • Enables Industry Compliance: OSHA 1910.147
  • Language: English
  • Maximum Number of Padlocks: 6
  • Primary Noun, Basic Function: Lockout Device
  • Risk Type: Mechanical Risk
  • Text Legend: DANGER LOCKED OUT DO NOT REMOVE
  • Total Qty per Pack: 1 Piece(s) / Pack
  • Trade Name: Mini Cable Lockout
  • Type: Mini Cable Lock-Out
  • Adhesive (Y/N): No
  • Brady Material Number: LOTO-38
  • Cable Material: Steel
  • Material: Polypropylene
  • SAP B-Number: LOTO-38
  • Body Depth (in/ft/yd): 1.78 in
  • Body Depth (mm/cm/m): 45.2 mm
  • Body Diameter (in/ft/yd): 4 in
  • Body Diameter (mm/cm/m): 101.6 mm
  • Body Height (in/ft/yd): 4 in
  • Body Height (mm/cm/m): 101.6 mm
  • Body Size (in/ft/yd): 4 in H x 4 in W x 1.78 in D
  • Body Size (mm/cm/m): 101.6 mm H x 101.6 mm W x 45.2 mm D
  • Body Width (in/ft/yd): 4 in
  • Body Width (mm/cm/m): 101.6 mm
  • Cable Diameter (in/ft/yd): 0.07 in
  • Cable Diameter (mm/cm/m): 1.78 mm
  • Cable Length (in/ft/yd): 8 ft
  • Cable Length (mm/cm/m): 2.44 m
  • Depth (mm/cm/m): 45.00 mm
  • Diameter (mm/cm/m): 100.00 mm
  • Dimensions (Metric): 100.00 mm Dia x 2.44 m L x 45.00 mm D
  • Maximum Service Temperature °C: 120 °C
  • Maximum Shackle Diameter (in/ft/yd): 0.31 in
  • Maximum Shackle Diameter (mm/cm/m): 7.87 mm
  • Maximum Wire Diameter (mm/cm/m): 1.60 mm
  • Minimum Service Temperature °C: -20 °C
  • Minimum Shackle Clearance (in/ft/yd): 0.75 in
  • Minimum Shackle Clearance - (mm/cm/m): 19.05 mm
  • Minimum Wire Diameter (mm/cm/m): 1.60 mm
  • Size - Length (m): 2.44 m

Regulatory Information

  • Contains CA PROP 65 Substance: No - Does not contain
  • Contains CA PROP 65 Substance: No
  • Contains Heavy Metal(s): No - Does not contain
  • EU RoHS Compliance: Pass 2011/65/EU(Pass 2015/863)
  • EU RoHS Compliant: Yes
  • Contains 3TG Mineral: No-Does Not Contain
  • SDS Safety Data Sheet required: No = MSDS/SDS is not required

Overview

UPC 75447350940
GTiN 00754473509408
Length 2.44 m
Width 4 in
Color Red
Type Mini
Diameter 4 Inches
Material LOTO-38 Glass-Filled Nylon
Applications For Lockout/Tagout
Depth 1-3/4 in
Height 1-3/4 in
Family Brand Name Brady
CA Prop65 Warning N
Max Temperature 120 C
Min Temperature -20 C
