Usually ships within 6 to 8 Days
Already a Customer? Log in to view your pricing
Manufacturer Brady
Mfg Catalog # 64221
North Coast Part # 350550

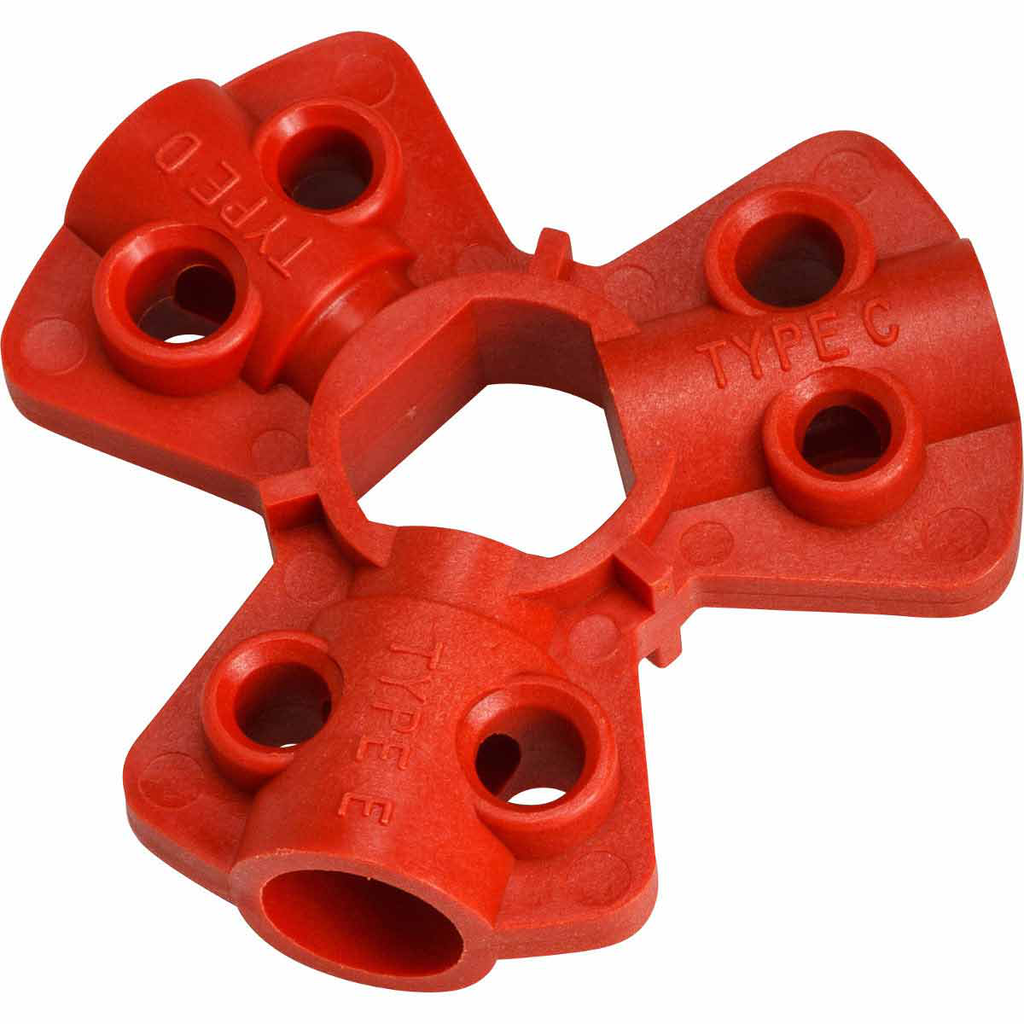

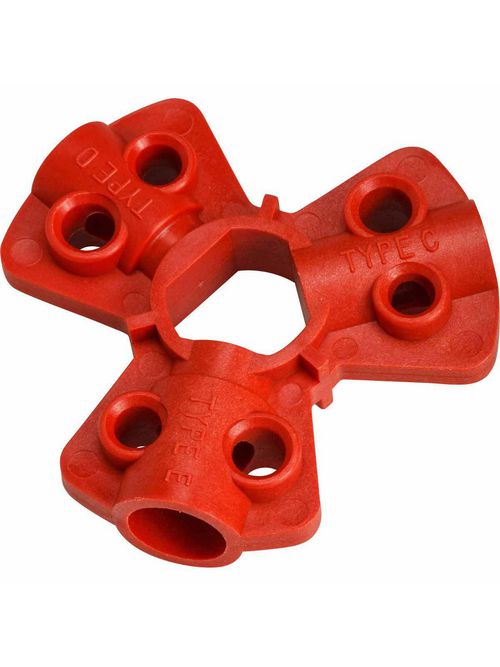

  • Device is applied to the male fitting, isolating equipment from all compressed air sources
  • Accommodates the majority of 1/4 in., 3/8 in. and 1/2 in. male fittings
  • Hole in center of device allows for permanent storage on an air hose and a loop on the side can be used to hang the hose and lockout device
  • Accepts padlock with up to 1/4 in. shackle


  • Brand Name: Brady®
  • Color: Red
  • Enables Industry Compliance: OSHA 1910.147
  • Hose Lockout Type: Pneumatic Quick Disconnect
  • Maximum Number of Padlocks: 1
  • Primary Noun, Basic Function: Lockout Device
  • Risk Type: Mechanical Risk
  • Total Qty per Pack: 1 Piece(s) / Pack
  • Adhesive (Y/N): No
  • Brady Material Number: LOTO-47
  • Lockout Material: Fiberglass Reinforced Nylon
  • Material: Glass-Reinforced Nylon
  • SAP B-Number: LOTO-47
  • Depth (in/ft/yd): 0.83 in
  • Depth (mm/cm/m): 21.08 mm
  • Diameter (in/ft/yd): 2.75 in
  • Diameter (mm/cm/m): 69.85 mm
  • Dimensions: 2.75 in Dia x 0.83 in D
  • Dimensions (Metric): 21.00 mm W x 69.85 mm Dia x 21.08 mm D
  • Maximum Service Temperature °C: 120 °C
  • Maximum Shackle Diameter (in/ft/yd): 0.31 in
  • Maximum Shackle Diameter (mm/cm/m): 7.87 mm
  • Minimum Service Temperature °C: -20 °C
  • Minimum Shackle Clearance - (mm/cm/m): 20.00 mm
  • Sign Size-General: 2.75 in Dia
  • Size - Width (mm): 21.00 mm

Regulatory Information

  • Contains CA PROP 65 Substance: No - Does not contain
  • Contains CA PROP 65 Substance: No
  • Contains Heavy Metal(s): No - Does not contain
  • DOT Regulated Product: No = not regulated by DOT
  • EU RoHS Compliance: Pass 2011/65/EU(Pass 2015/863)
  • EU RoHS Compliant: Yes
  • Contains 3TG Mineral: No-Does Not Contain
  • SDS Safety Data Sheet required: No = MSDS/SDS is not required


UPC 75447364221
Item Long Description Pneumatic Quick-Disconnect Lockouts isolate pneumatic energy without the expense and inconvenience of installing in-line lockout valves.
GTiN 00754473642211
Length 0.83 in
Color Red
Type Pneumatic Hose Lockout Device (Pneumatic Quick Disconnect)
Applications Mechanical Risk Lockout
Family Brand Name Brady
Shackle Diameter 0.31 IN
CA Prop65 Warning N
Width 21.00 mm
Depth 0.83 in
Max Temperature 120 C
Min Temperature -20 C
