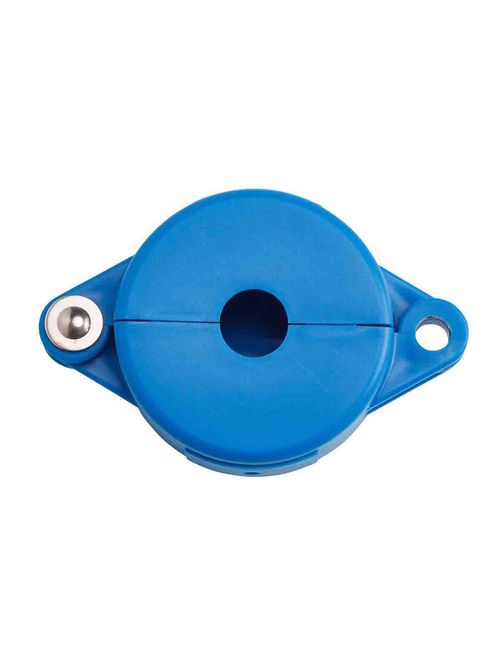

BRADY 65585 GATE VALVE LOCKOUTS

Features

• Device is made of extremely rugged injection-molded polypropylene for superior impact and chemical resistance
• Supplied with English, Spanish and French danger labels
• Cover the valve handle with the gate valve lockout device and apply a personal padlock and lockout tag to ensure employee safety
• Accepts padlock shackles up to 3/8 in. in diameter

Specifications

• Brand Name: Brady®
• Color: Blue
• Enables Industry Compliance: OSHA 1910.147
• Gate Valve Lockout Type: Hinged
• Labels Supplied: Yes
• Language: English; French; Spanish
• Maximum Number of Padlocks: 1
• Primary Noun, Basic Function: Lockout Device
• Risk Type: Mechanical Risk
• Text Legend: DANGER LOCKED OUT DO NOT REMOVE
• Total Qty per Pack: 1 Piece(s) / Pack
• Adhesive (Y/N): No
• Brady Material Number: LOTO-7
• Lockout Material: Polypropylene
• Material: Polypropylene
• SAP B-Number: LOTO-7
• Depth (mm/cm/m): 35.90 mm
• Diameter (in/ft/yd): 2.78 in
• Diameter (mm/cm/m): 70.61 mm
• Dimensions: 2.78 in Dia
• Dimensions (Metric): 120.10 mm W x 80.00 mm H x 70.61 mm Dia x 35.90 mm D
• Height (mm/cm/m): 80.00 mm
• Hole Inside Diameter (mm/cm/m): 19.00 mm
• Lockout Height (in/ft/yd): 1.41 in
• Lockout Height (mm/cm/m): 35.8 mm
• Lockout Width (in/ft/yd): 4.72 in
• Lockout Width (mm/cm/m): 119.89 mm
• Maximum Service Temperature °C: 150 °C
• Maximum Service Temperature °F: 302 °F
• Maximum Shackle Diameter (in/ft/yd): 0.375 in
• Maximum Shackle Diameter (mm/cm/m): 9.53 mm
• Minimum Service Temperature °C: -40 °C
• Minimum Service Temperature °F: -40 °F
• Minimum Shackle Clearance (in/ft/yd): 0.75 in
• Minimum Shackle Clearance - (mm/cm/m): 19.05 mm
• Rising Stem Knockout Hole Diameter (in/ft/yd): .75 in
• Rising Stem Knockout Hole Diameter (mm/cm/m): 19 mm
• Service Temperature Range °C: -40 °C to 150 °C
• Service Temperature Range °F: -40 °F to 302 °F
• Sign Size-General: 2.78 in Dia
• Size - W x H x D (mm): 120.10 x 80.00 x 35.90
• Size - Width (mm): 120.10 mm
• Valve Wheel Diameter (mm/cm/m): 25 - 64
• Valve Wheel Diameter Range (in/ft/yd): 1 to 2.5 in

Regulatory Information

• Contains CA PROP 65 Substance: No - Does not contain
• Contains CA PROP 65 Substance: No
• Contains Heavy Metal(s): No - Does not contain
• DOT Regulated Product: No = not regulated by DOT
• EU RoHS Compliance: Not Applicable
• EU RoHS Compliant: No
• SDS Safety Data Sheet required: No = MSDS/SDS is not required
