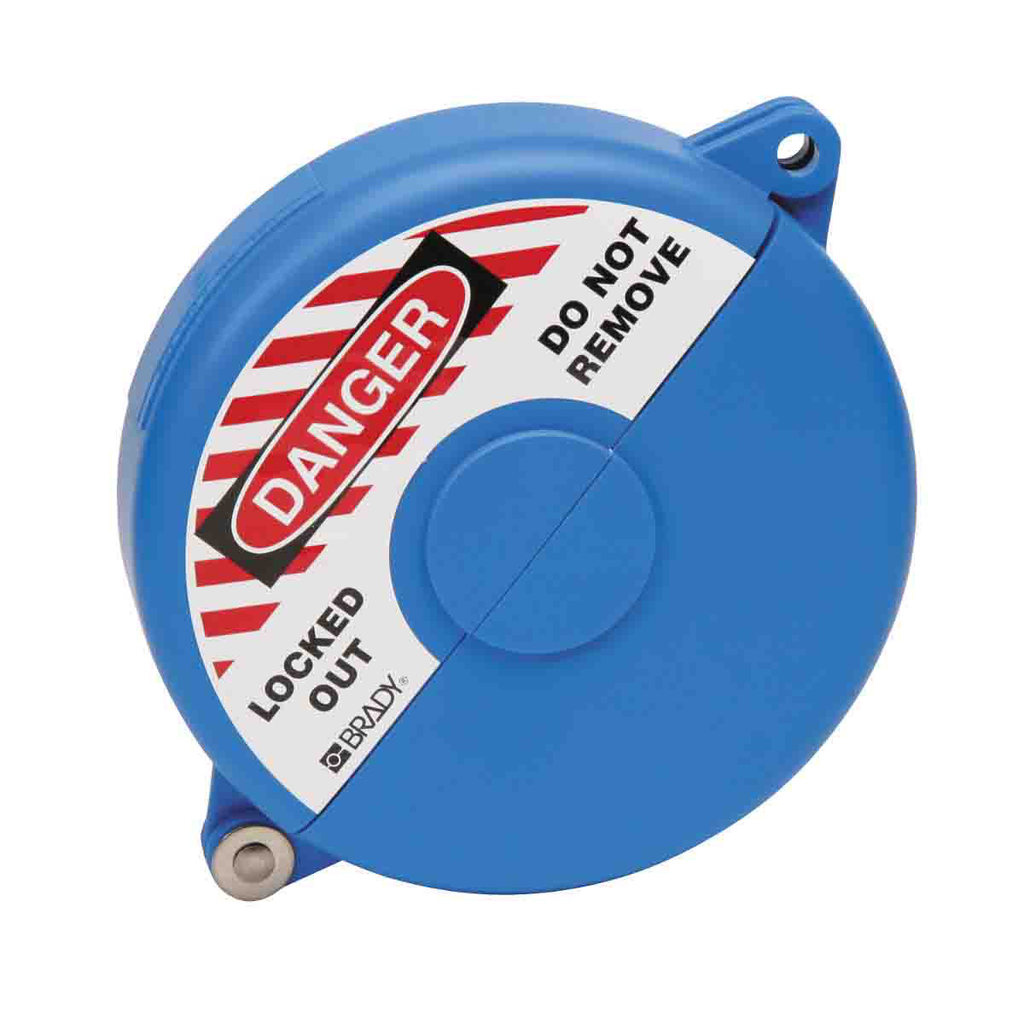

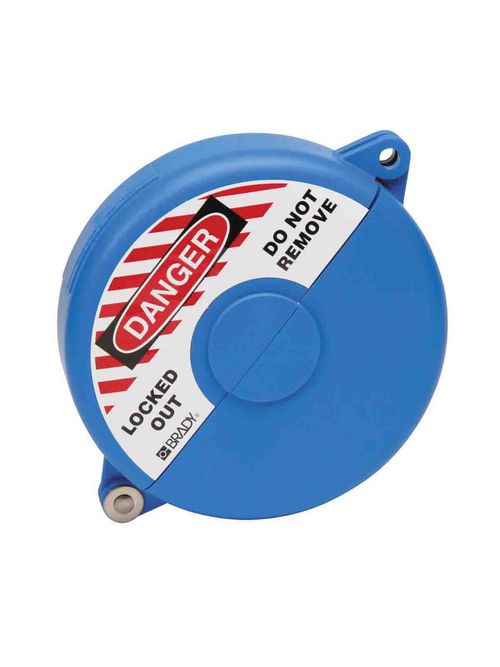

BRADY 65587 GATE VALVE LOCKOUTS
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$38.29/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Brady
Mfg Catalog # 65587
North Coast Part # 1691506

Features

  • Device is made of extremely rugged injection-molded polypropylene for superior impact and chemical resistance
  • Supplied with English, Spanish and French danger labels
  • Cover the valve handle with the gate valve lockout device and apply a personal padlock and lockout tag to ensure employee safety
  • Accepts padlock shackles up to 3/8 in. in diameter

Specifications

  • Brand Name: Brady®
  • Color: Blue
  • Enables Industry Compliance: OSHA 1910.147
  • Gate Valve Lockout Type: Hinged
  • Labels Supplied: Yes
  • Language: English; French; Spanish
  • Maximum Number of Padlocks: 1
  • Primary Noun, Basic Function: Lockout Device
  • Risk Type: Mechanical Risk
  • Text Legend: DANGER LOCKED OUT DO NOT REMOVE
  • Total Qty per Pack: 1 Piece(s) / Pack
  • Adhesive (Y/N): No
  • Brady Material Number: LOTO-7
  • Lockout Material: Polypropylene
  • Material: Polypropylene
  • SAP B-Number: LOTO-7
  • Depth (mm/cm/m): 60.40 mm
  • Diameter (in/ft/yd): 6.75 in
  • Diameter (mm/cm/m): 171.45 mm
  • Dimensions: 6.75 in Dia
  • Dimensions (Metric): 224.10 mm W x 181.00 mm H x 171.45 mm Dia x 60.40 mm D
  • Height (mm/cm/m): 181.00 mm
  • Hole Inside Diameter (mm/cm/m): 63.50 mm
  • Lockout Height (in/ft/yd): 2.38 in
  • Lockout Height (mm/cm/m): 60.5 mm
  • Lockout Width (in/ft/yd): 8.82 in
  • Lockout Width (mm/cm/m): 224.03 mm
  • Maximum Service Temperature °C: 150 °C
  • Maximum Service Temperature °F: 302 °F
  • Maximum Shackle Diameter (in/ft/yd): 0.375 in
  • Maximum Shackle Diameter (mm/cm/m): 9.53 mm
  • Minimum Service Temperature °C: -40 °C
  • Minimum Service Temperature °F: -40 °F
  • Minimum Shackle Clearance (in/ft/yd): 0.75 in
  • Minimum Shackle Clearance - (mm/cm/m): 19.05 mm
  • Rising Stem Knockout Hole Diameter (in/ft/yd): 2.5 in
  • Rising Stem Knockout Hole Diameter (mm/cm/m): 63.5 mm
  • Service Temperature Range °C: -40 °C to 150 °C
  • Service Temperature Range °F: -40 °F to 302 °F
  • Sign Size-General: 6.75 in Dia
  • Size - W x H x D (mm): 224.10 x 181.00 x 60.40
  • Size - Width (mm): 224.10 mm
  • Valve Wheel Diameter (mm/cm/m): 127 - 165
  • Valve Wheel Diameter Range (in/ft/yd): 5 to 6.5 in

Regulatory Information

  • Contains CA PROP 65 Substance: No - Does not contain
  • Contains CA PROP 65 Substance: No
  • Contains Heavy Metal(s): No - Does not contain
  • DOT Regulated Product: No = not regulated by DOT
  • EU RoHS Compliance: Not Applicable
  • EU RoHS Compliant: No
  • SDS Safety Data Sheet required: No = MSDS/SDS is not required

Overview

UPC 75447365587
GTiN 00754473655877
Width 224.10 mm
Color Blue
Type Gate Valve Lockout Device (Hinged)
Diameter 6.75 IN
Applications Mechanical Risk Lockout
Height 181.00 mm
Family Brand Name Brady
Max Operating Temperature 302 degrees F
Shackle Diameter 0.375 IN
Min Operating Temperature -40 degrees F
Legend DANGER LOCKED OUT DO NOT REMOVE
CA Prop65 Warning N
Material Polypropylene
Depth 60.40 mm
Max Temperature 302 degrees F
Min Temperature -40 degrees F
