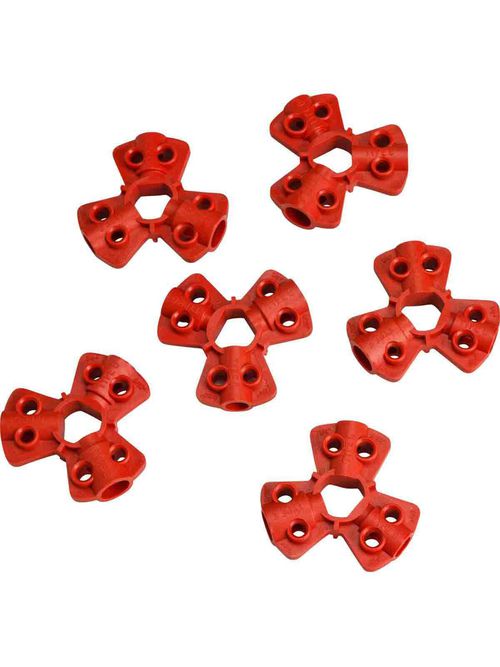

BRADY 65645 PNEUMATIC QUICK-DISCONN

Features

• Device is applied to the male fitting, isolating equipment from all compressed air sources
• Accommodates the majority of 1/4 in., 3/8 in. and 1/2 in. male fittings
• Hole in center of device allows for permanent storage on an air hose and a loop on the side can be used to hang the hose and lockout device
• Accepts padlock with up to 1/4 in. shackle

Specifications

• Brand Name: Brady®
• Color: Red
• Enables Industry Compliance: OSHA 1910.147
• Hose Lockout Type: Pneumatic Quick Disconnect
• Maximum Number of Padlocks: 1
• Primary Noun, Basic Function: Lockout Device
• Risk Type: Mechanical Risk
• Total Qty per Pack: 6 Piece(s) / Pack
• Adhesive (Y/N): No
• Brady Material Number: LOTO-47
• Lockout Material: Fiberglass Reinforced Nylon
• Material: Glass-Reinforced Nylon
• SAP B-Number: LOTO-47
• Depth (in/ft/yd): 0.83 in
• Depth (mm/cm/m): 21.08 mm
• Diameter (in/ft/yd): 2.75 in
• Diameter (mm/cm/m): 69.9 mm
• Dimensions: 2.75 in Dia x 0.83 in D
• Dimensions (Metric): 21.00 mm W x 69.9 mm Dia x 21.08 mm D
• Maximum Service Temperature °C: 120 °C
• Maximum Shackle Diameter (in/ft/yd): 0.31 in
• Maximum Shackle Diameter (mm/cm/m): 7.87 mm
• Minimum Service Temperature °C: -20 °C
• Minimum Shackle Clearance - (mm/cm/m): 20.00 mm
• Sign Size-General: 2.75 in Dia
• Size - Width (mm): 21.00 mm

Regulatory Information

• Contains CA PROP 65 Substance: No - Does not contain
• Contains CA PROP 65 Substance: No
• Contains Heavy Metal(s): No - Does not contain
• DOT Regulated Product: No = not regulated by DOT
• EU RoHS Compliance: Pass 2011/65/EU(Pass 2015/863)
• EU RoHS Compliant: Yes
• SDS Safety Data Sheet required: No = MSDS/SDS is not required
