BRADY 7054-1 Pipe Mkr,B946,S-1,Grn,
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
$1.89/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Brady
Mfg Catalog # 7054-1
North Coast Part # 430000

Features

  • Banding each end of a pipe marker with directional flow arrow tape is recommended
  • Style 1 pipe markers measure 2-1/4 in. x 14 in., come one marker per card, and fit pipe diameter 2-1/2 in. to 7-7/8 in.
  • High gloss, durable, flexible vinyl with a permanent cold temperature pressure sensitive acrylic adhesive
  • Good chemical, oil and water resistance

Specifications

  • Applications: Pipe and Valve Marking
  • Brand Name: Brady®
  • Color: White on Green
  • Compatible Surface Types: General
  • Enables Industry Compliance: ANSI A13.1-2007
  • Finish: Gloss
  • Language: English
  • Pipe Marker Mounting Style: Self-Adhesive
  • Pipe Marker Style: 1
  • Pre-Printed Areas on Label: Pipe Contents
  • Primary Noun, Basic Function: Pipe Marker
  • Printer and Label Applications: General Identification; Pipe Marker
  • Reflective Type: Non-Reflective
  • Self-Adhesive Pipe Marker Format: Die-Cut on Cards

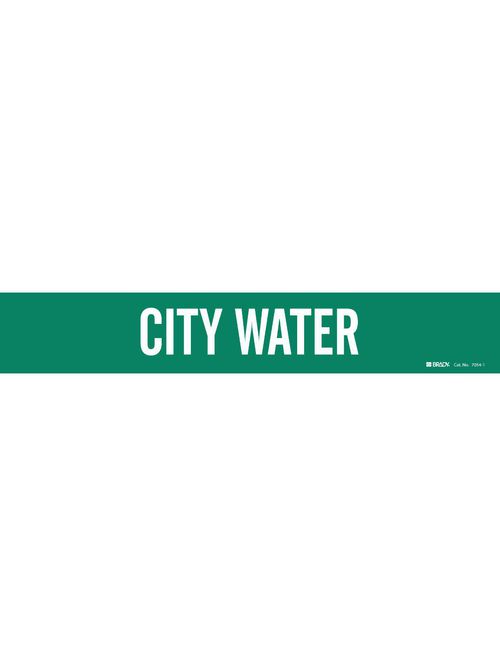

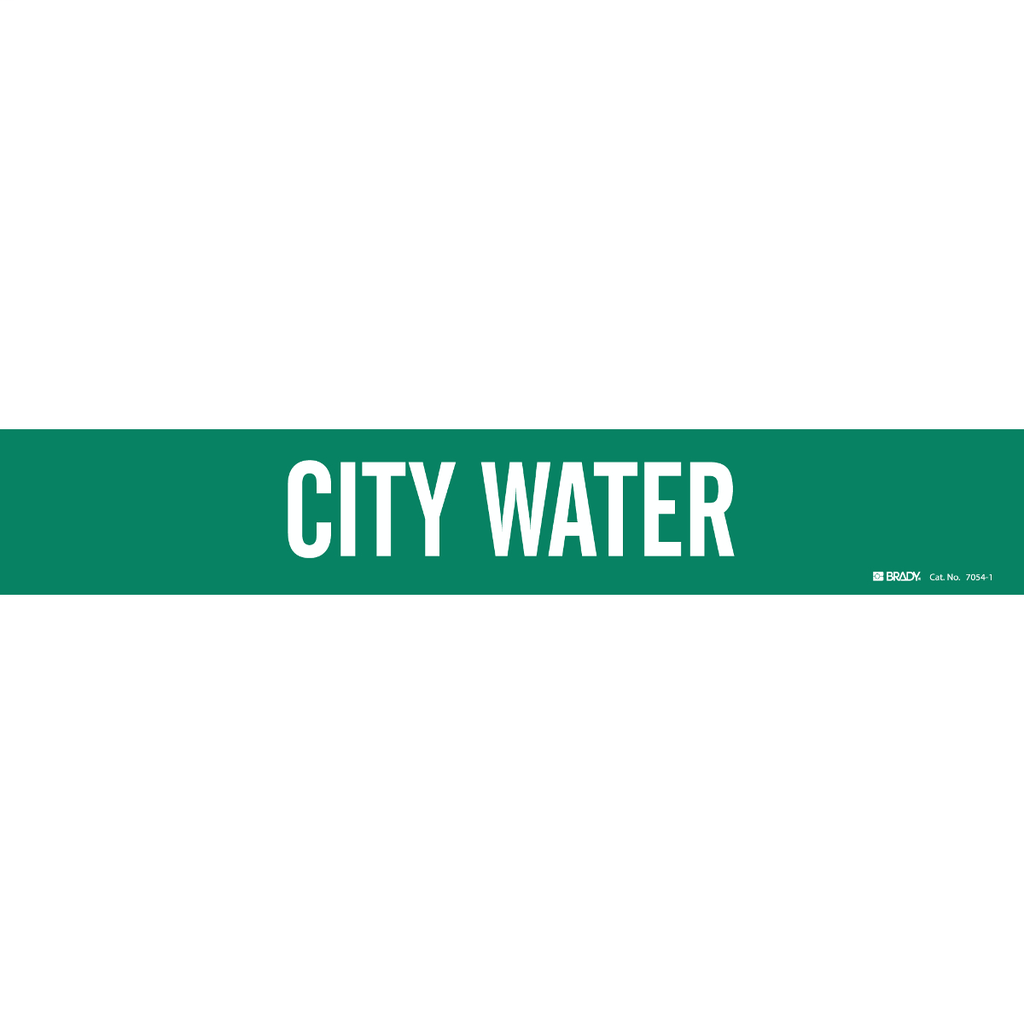

  • Text Legend: CITY WATER
  • Adhesive Type: Permanent Acrylic
  • Brady Material Number: B-946
  • Indoor or Outdoor Use: Outdoor Use
  • Label Properties: Aggressive Adhesive Labels; Permanent Adhesive Labels; Standard High Quality Labels
  • Material: Vinyl
  • Resistance Properties: Abrasion-Resistant; Chemical-Resistant; Water-Resisitant
  • SAP B-Number: B-946
  • Average Outdoor Durability: 8 to 10 Years
  • Character Height (in/ft/yd): 2 in
  • Dimensions: 2.25 in H x 14 in W
  • Dimensions (Metric): 57.2 mm H
  • Dimensions 2: 2.25 in H x 14 in W
  • Height (in/ft/yd): 2.25 in
  • Height (mm/cm/m): 57.2 mm
  • Maximum Outside Pipe Diameter (in/ft/yd): 7.875 in
  • Maximum Outside Pipe Diameter (mm/cm/m): 200.03 mm
  • Maximum Service Temperature °C: 82 °C
  • Maximum Service Temperature °F: 180 °F
  • Minimum Application Temperature °C: -18 °C
  • Minimum Application Temperature °F: 0 °F
  • Minimum Outside Pipe Diameter (in/ft/yd): 2.5 in
  • Minimum Outside Pipe Diameter (mm/cm/m): 63.5 mm
  • Minimum Service Temperature °C: -40 °C
  • Minimum Service Temperature °F: -40 °F
  • Overall Size: Fits Pipes 2.5" Dia. Thru 7.875in Dia.
  • Roll/Tape Size (in/ft/yd): 2.25 in H x 14 in W
  • Sign Size-General: 2.25 in x 14 in
  • Size: 1
  • Thickness (in/ft/yd): 0.004 in
  • Thickness (mm/cm/m): 0.102 mm
  • Width (in/ft/yd): 14 in
  • Width (mm/cm/m): 35.56 cm

Regulatory Information

  • Contains CA PROP 65 Substance: No - Does not contain
  • Contains CA PROP 65 Substance: No
  • Contains Heavy Metal(s): Unavailable
  • DOT Regulated Product: No = not regulated by DOT
  • EU RoHS Compliance: Not Applicable
  • EU RoHS Compliant: No
  • SDS Safety Data Sheet required: No = MSDS/SDS is not required

Overview

UPC 75447390066
GTiN 00754473900663
Finish Gloss
Size 1
Adhesive Type Acrylic
Color White,Green
Type Self-Adhesive
Thickness 0.004 in
Material Vinyl
Applications Pipe & Valve Marking
Family Brand Name Brady
Indoor Outdoor Outdoor
Max Operating Temperature 180 degrees F
Min Operating Temperature -40 degrees F
Legend CITY WATER
CA Prop65 Warning N
Width 14 in
Height 2.25 in
Max Temperature 180 degrees F
Min Temperature -40 degrees F
