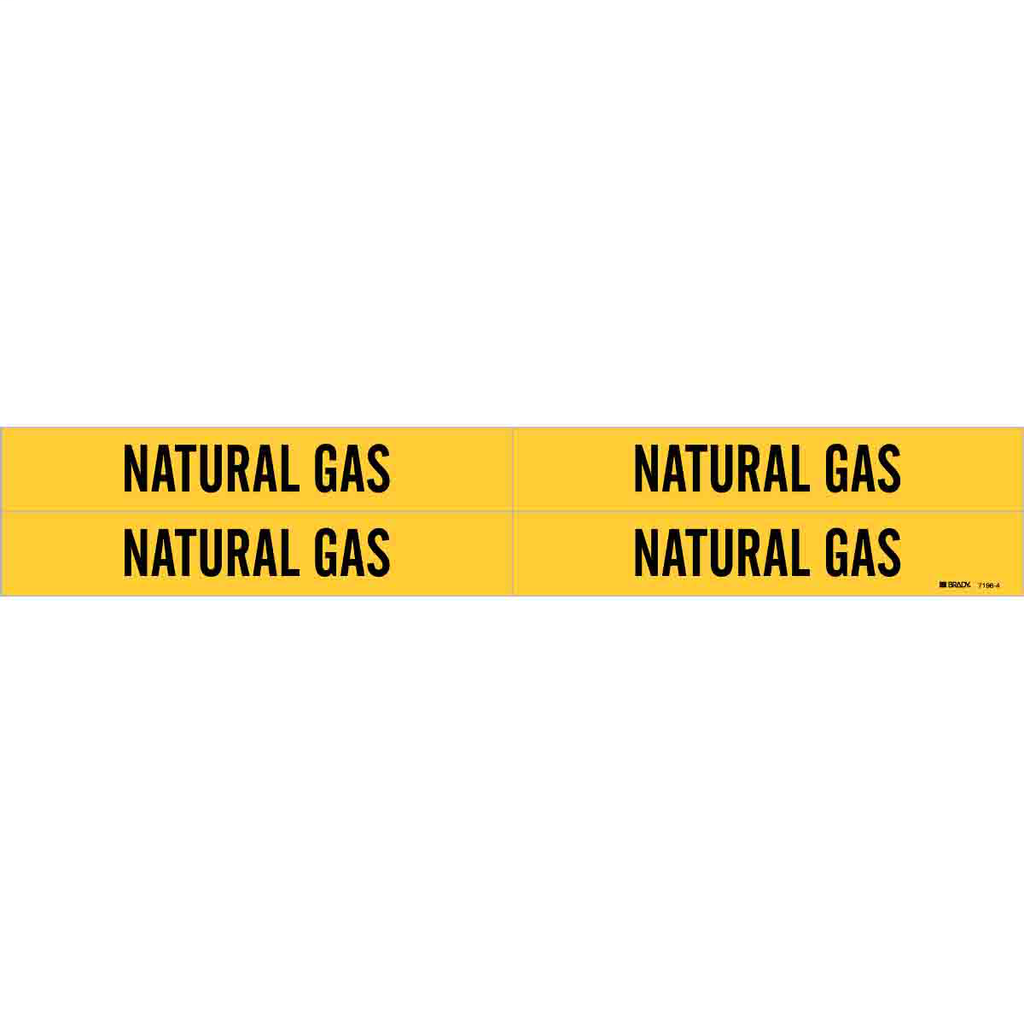

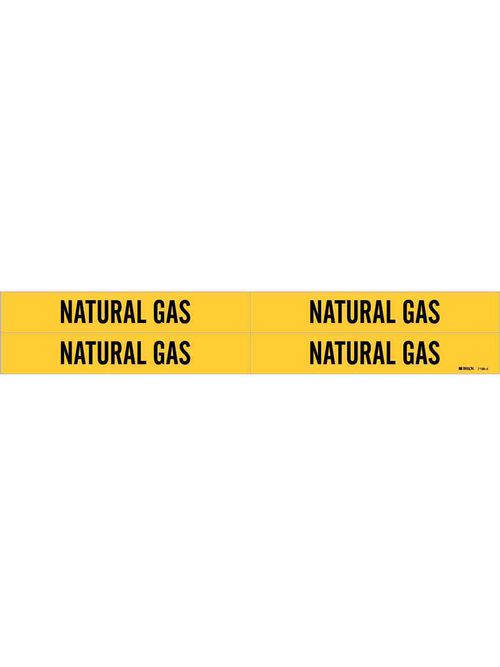

BRADY 7196-4 Pipe Mkr,B946,S-4,Yw,N
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Usually ships within 6 to 8 Days
Already a Customer? Log in to view your pricing
Manufacturer Brady
Mfg Catalog # 7196-4
North Coast Part # 430435


  • Banding each end of a pipe marker with directional flow arrow tape is recommended
  • Style 4 pipe markers measure 1-1/8 in. x 7 in., comes with four markers per card and fit pipe diameter 3/4 in. to 2-3/8 in.
  • High gloss, durable, flexible vinyl with a permanent cold temperature pressure sensitive acrylic adhesive
  • Good chemical, oil and water resistance


  • Applications: Pipe and Valve Marking
  • Brand Name: Brady®
  • Color: Black on Yellow
  • Compatible Surface Types: General
  • Enables Industry Compliance: ANSI A13.1-2007
  • Finish: Gloss
  • Language: English
  • Pipe Marker Mounting Style: Self-Adhesive
  • Pipe Marker Style: 4
  • Pre-Printed Areas on Label: Pipe Contents
  • Primary Noun, Basic Function: Pipe Marker
  • Printer and Label Applications: General Identification; Pipe Marker
  • Quantity per Card or Sheet: 4
  • Reflective Type: Non-Reflective
  • Self-Adhesive Pipe Marker Format: Die-Cut on Cards
  • Text Legend: NATURAL GAS
  • Adhesive Type: Permanent Acrylic
  • Brady Material Number: B-946
  • Indoor or Outdoor Use: Outdoor Use
  • Label Properties: Aggressive Adhesive Labels; Permanent Adhesive Labels; Standard High Quality Labels
  • Material: Vinyl
  • Resistance Properties: Abrasion-Resistant; Chemical-Resistant
  • SAP B-Number: B-946
  • Average Outdoor Durability: 8 to 10 Years
  • Character Height (in/ft/yd): 0.75 in
  • Dimensions: 1.125 in H x 7 in W
  • Dimensions (Metric): 28.6 mm H
  • Dimensions 2: 1.125 in H x 7 in W
  • Height (in/ft/yd): 1.125 in
  • Height (mm/cm/m): 28.6 mm
  • Maximum Outside Pipe Diameter (in/ft/yd): 2.375 in
  • Maximum Outside Pipe Diameter (mm/cm/m): 60.33 mm
  • Maximum Service Temperature °C: 82 °C
  • Maximum Service Temperature °F: 180 °F
  • Minimum Application Temperature °C: -18 °C
  • Minimum Application Temperature °F: 0 °F
  • Minimum Outside Pipe Diameter (in/ft/yd): 0.75 in
  • Minimum Outside Pipe Diameter (mm/cm/m): 19.05 mm
  • Minimum Service Temperature °C: -40 °C
  • Minimum Service Temperature °F: -40 °F
  • Overall Size: Fits Pipes 0.75" Dia. Thru 2.375in Dia.
  • Roll/Tape Size (in/ft/yd): 1.125 in H x 7 in W
  • Sign Size-General: 1.125 in x 7 in
  • Size: 4
  • Thickness (in/ft/yd): 0.004 in
  • Thickness (mm/cm/m): 0.102 mm
  • Width (in/ft/yd): 7 in
  • Width (mm/cm/m): 177.8 mm

Regulatory Information

  • Contains CA PROP 65 Substance: No - Does not contain
  • Contains CA PROP 65 Substance: No
  • Contains Heavy Metal(s): No - Does not contain
  • DOT Regulated Product: No = not regulated by DOT
  • EU RoHS Compliance: Not Applicable
  • EU RoHS Compliant: No
  • SDS Safety Data Sheet required: No = MSDS/SDS is not required


UPC 75447379236
Item Long Description Self-sticking pipe markers from Brady simplify installation with their factory-applied industrial-grade adhesives: simply peel off the backing and press the marker in place.
GTiN 00754473792367
Finish Gloss
Width 7 in
Size 4
Adhesive Type Permanent Acrylic
Color Black,Yellow
Type Self-Adhesive, Die-Cut on Cards, Abrasion and Chemical Resistant
Thickness 0.004 in
Material B-946 Vinyl
Applications For Pipe and Valve Marking, Indoor and Outdoor Use
Height 1.125 in
Family Brand Name Brady
Indoor Outdoor Outdoor
Max Operating Temperature 180 degrees F
Min Operating Temperature -40 degrees F
CA Prop65 Warning N
Length 1-1/8 in
Max Temperature 180 degrees F
Min Temperature -40 degrees F
Used With Low Surface Energy, Powder Coated, Smooth, Textured and Rough Surface, 0.75 - 2.375 in Pipe
